HANDLE SWITCH

VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

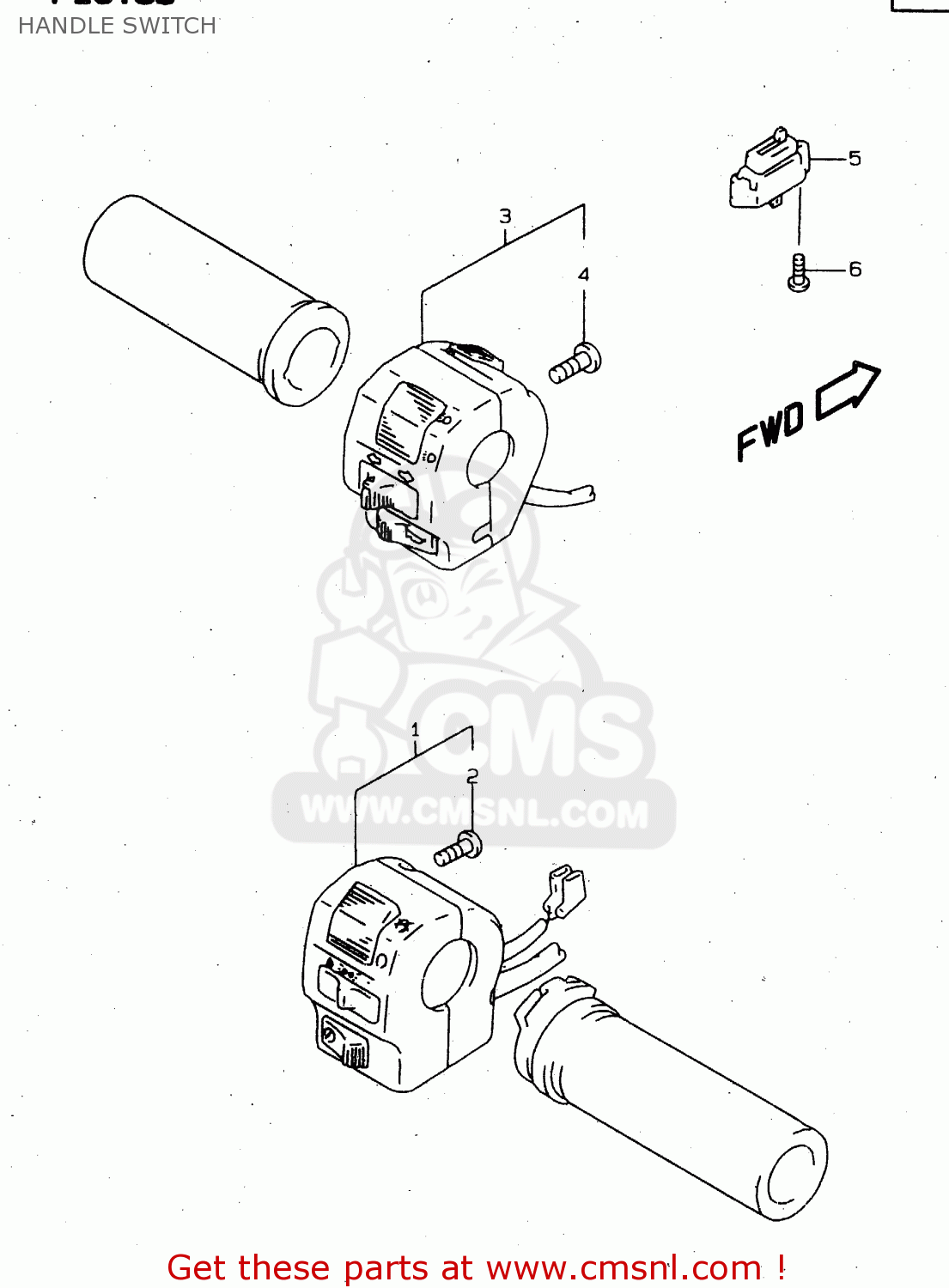

Handle switch diagram VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

HANDLE SWITCH VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

HANDLE SWITCH VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3720039AA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 203.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740039AD0
ref: 3

SWITCH ASSY,HANDLE,L

€ 229.50

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00
