REAR FENDER-LABEL (MODEL T)

VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

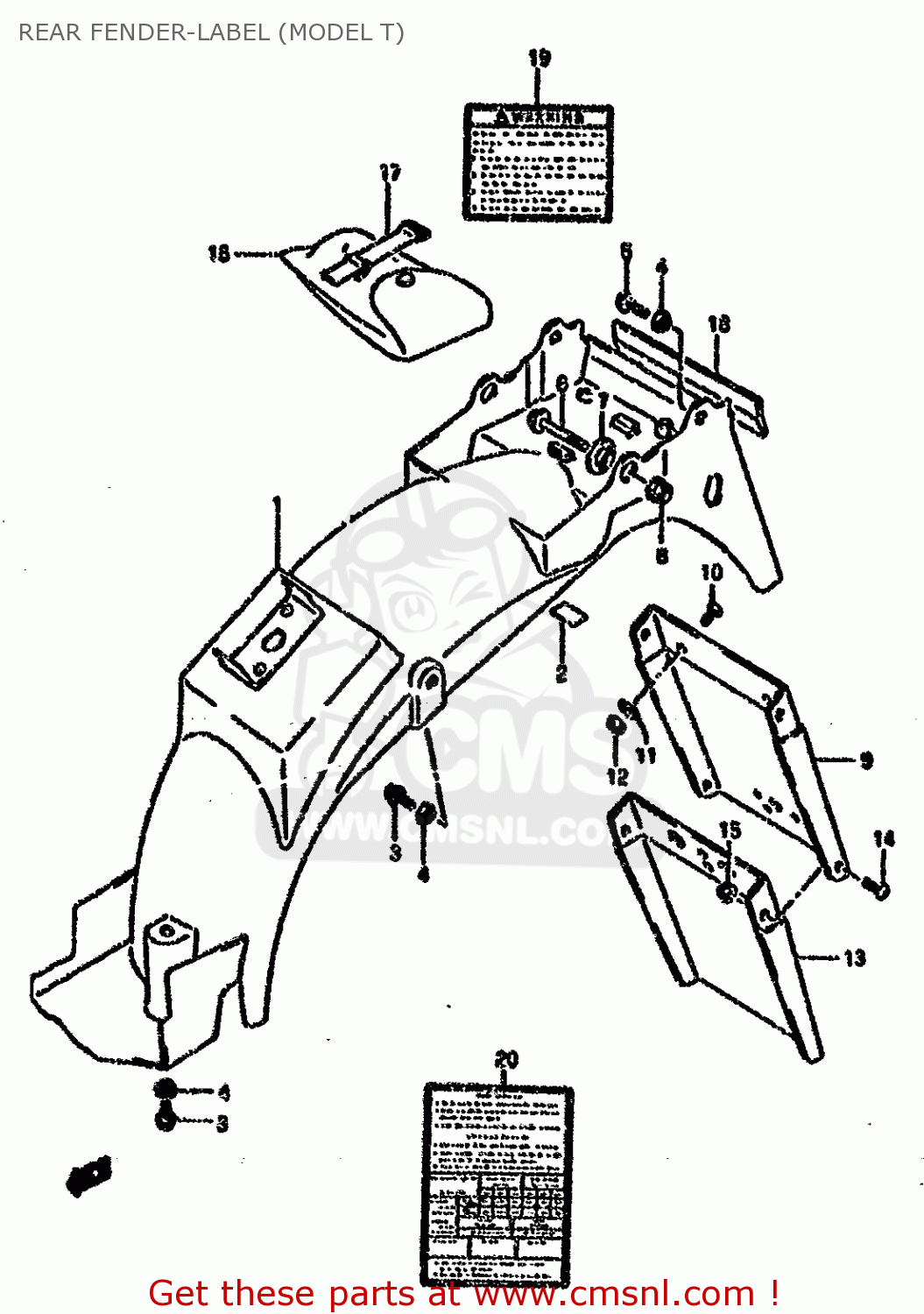

Rear fender-label (model t) diagram VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

REAR FENDER-LABEL (MODEL T) VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
REAR FENDER-LABEL (MODEL T) VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
REAR FENDER-LABEL (MODEL T) VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6311045C21
ref: 1-1
FENDER,REAR
€ 135.00
1-2
6311045C31
ref: 1-2
E22
FENDER,RR
€ 98.00
2
6311506C00
ref: 2
TAPE,RR FENDER
6311506C00
€ 7.00
3
0155006123
ref: 3
BOLT
0155006123
€ 2.50
4
0916906037
ref: 4
WASHER
0916906037
€ 6.50
5
0155006163
ref: 5
BOLT
0155006163
€ 2.50
6
0155008553
ref: 6
BOLT
€ 3.00
7
0916908045
ref: 7
WASHER
0916908045
€ 2.00
8
0831610083
ref: 8
NUT
0831610083
€ 3.00
9-1
6331145C10
ref: 9-1
E22,E25
EXTENSION,REAR FENDER
€ 31.00
9-2
6331145C20
ref: 9-2
E18
EXTENSION,REAR FENDER
€ 29.00
10
0214206163
ref: 10
E18,E22,E25
SCREW
0214206163
€ 2.50
11
0916006019
ref: 11
E18,E22,E25
WASHER(6.5X16X1.2)
0916006019
€ 1.50
12
0831921065
ref: 12
E18,E22,E25
NUT
0831921065
€ 2.50
13
6333148B12
ref: 13
E18
MUDGUARD,RR FENDER
6333148B12
€ 31.00
14
0214206163
ref: 14
E18
SCREW
0214206163
€ 2.50
15
0831921065
ref: 15
E18
NUT
0831921065
€ 2.50
16
0980021015
ref: 16
TOOL ASSY
0980021015
€ 49.50
17
0946200072
ref: 17
BAND
0946200072
€ 3.50
18
6311845C00
ref: 18
CUSHION,RR FENDER
6311845C00
€ 8.50
19-1
6831940C00
ref: 19-1
E25
LABEL
6831940C00
€ 8.00
19-2
6831940C20
ref: 19-2
E18,E22
LABEL, WARNING SAFETY
€ 8.00
19-3
6831940C30
ref: 19-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
20-1
6833245C00
ref: 20-1
LABEL,TIRE AIR PRESSURE
€ 5.00
20-2
6833245C10
ref: 20-2
E4
LABEL,TIRE AIR PRESSURE
€ 0.00
21
9901145C55GDU
ref: 21
DRAWING NOT SHOWN
MANUAL,OWNER'S VX800T
€ 16.50
15
0831921065
ref: 15
E18
NUT
0831921065
€ 2.50
16-1
0980020033
ref: 16-1
-09800-21015
TOOL ASSY
€ 49.50
16-2
0980021015
ref: 16-2
TOOL ASSY
0980021015
€ 49.50
17
0946200072
ref: 17
BAND
0946200072
€ 3.50
18
6311845C00
ref: 18
CUSHION,RR FENDER
6311845C00
€ 8.50
19-1
6831940C00
ref: 19-1
E1,E2,E15,E16,E17,E2
LABEL
6831940C00
€ 8.00
19-2
6831940C20
ref: 19-2
E18,E22,E39
LABEL, WARNING SAFETY
€ 8.00
19-3
6831940C30
ref: 19-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
19-4
6831940C40
ref: 19-4
E34
LABEL, WARNING SAFETY
€ 8.00
19-5
6831940C51
ref: 19-5
E53
LABEL
€ 8.00
20
1196782000
ref: 20
E2
LABEL,ASBESTOS WARNING
€ 2.00
21-1
8693273060
ref: 21-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
21-2
6862317D00
ref: 21-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
22-1
6833245C00
ref: 22-1
LABEL,TIRE AIR PRESSURE
€ 5.00
22-2
6833245C10
ref: 22-2
E4
LABEL,TIRE AIR PRESSURE
€ 0.00
23-1
9901145C50028
ref: 23-1
MODEL L E1,E2,E15,E1
MANUAL,OWNER'S
€ 0.00
23-2
9901145C50022
ref: 23-2
MODEL L E4,E18,E21,E
O.M. VX800 L
€ 16.50
23-3
9901145C51028
ref: 23-3
MODEL M E2,E15,E17,E
MANUAL,OWNER'S
€ 0.00
23-4
9901145C51022
ref: 23-4
MODEL M E4,E18,E21,E
O.M. VX800 M
€ 16.50
23-5
9901145C52028
ref: 23-5
MODEL N
MANUAL,OWNER'S
€ 0.00
23-6
9901145C53028
ref: 23-6
MODEL P E2,E24
MANUAL,OWNER'S
€ 0.00
23-7
9901145C53022
ref: 23-7
MODEL P E4,E21,E22,E
O.M. VX800 P
€ 16.50
23-8
9901145C54028
ref: 23-8
MODEL R E2,E24
MANUAL,OWNER'S
€ 29.00
23-9
9901145C54022
ref: 23-9
MODEL R E4,E18,E21,E
O.M. VX800 R
€ 16.50
