SPEEDOMETER-TACHOMETER

VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

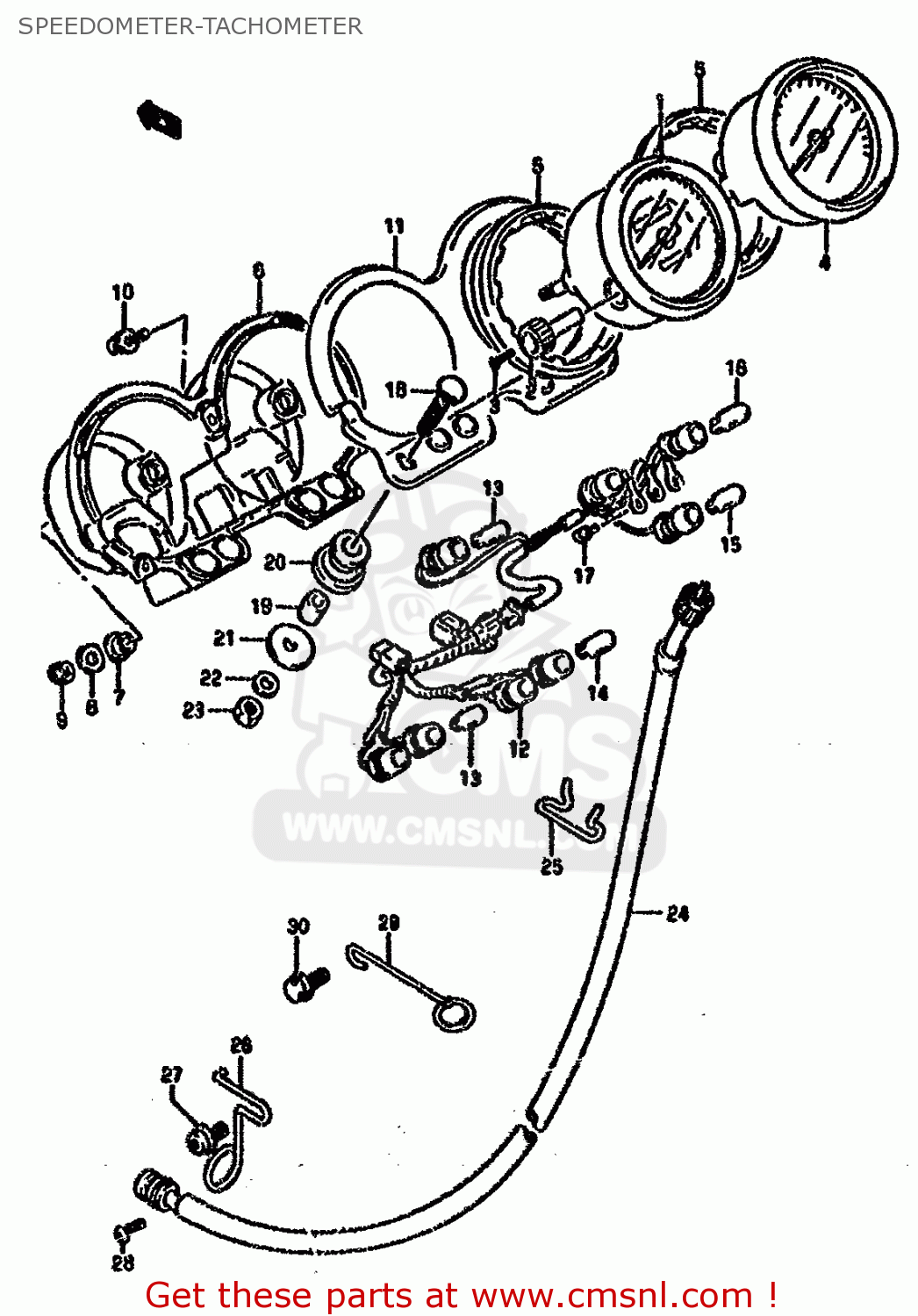

Speedometer-tachometer diagram VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

SPEEDOMETER-TACHOMETER VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
SPEEDOMETER-TACHOMETER VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
SPEEDOMETER-TACHOMETER VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3411045C10
ref: 1-1
MODEL L/M
SPEEDOMETER (KILO)
€ 294.00
1-2
3411045C40
ref: 1-2
MODEL N/P/R/T
SPEEDOMETER (KILO)
3411045C40
€ 328.00
1-3
3411045C20
ref: 1-3
MODEL L/M E2
SPEEDOMETER
€ 0.00
1-4
3411045C50
ref: 1-4
MODEL N/P/R E2
SPEEDOMETER
€ 351.50
2
3412430B00
ref: 2
-34124-01D20
KNOB,TRIP
3412430B00
€ 8.50
3
3498113A00
ref: 3
ROTOR,SPEED
3498113A00
€ 2.00
4-1
3421045C10
ref: 4-1
MODEL L/M
TACHOMETER
€ 452.50
4-2
3421045C40
ref: 4-2
MODEL N/P/R/T
TACHOMETER
€ 469.00
5
3428801D20
ref: 5
DAMPER
3428801D20
€ 7.00
6-1
3419345C1023S
ref: 6-1
MODEL L
COVER
€ 55.50
6-2
3419345C1023W
ref: 6-2
MODEL M/N/P/R/T
COVER
3419345C1023W
€ 55.50
7
3418901D20
ref: 7
CUSHION
3418901D20
€ 6.00
8
3418145C10
ref: 8
WASHER
€ 1.50
9
0831310057
ref: 9
NUT
0831310057
€ 1.50
10
0211274083
ref: 10
SCREW
0211274083
€ 3.50
11-1
3495001D20
ref: 11-1
BRACKET,METER
€ 148.50
11-2
3495001D30
ref: 11-2
E2
BRACKET,METER
€ 148.50
12
3417045C10
ref: 12
SOCKET & HARNESS ASSEMBLY
€ 46.00
13
0947112028
ref: 13
BULB(12V3.4W,T10)
0947112028
€ 3.50
14
0947112077
ref: 14
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
15
0947112103
ref: 15
BULB(12V3W,T6.5)
0947112103
€ 2.50
16
0947112108
ref: 16
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
17
0211233103
ref: 17
SCREW
€ 1.50
18
0910706005
ref: 18
BOLT(6X34)
0910706005
€ 3.00
19
0918006209
ref: 19
SPACER (6.1X10X15.7)
0918006209
€ 4.00
20
3495631001
ref: 20
CUSHION,METER BRACKET
3495631001
€ 4.50
21
0916006030
ref: 21
WASHER (6.5X29X1.6)
0916006030
€ 2.50
22
0832101063
ref: 22
LOCK WASHER
0832101063
€ 2.00
23
0831000063
ref: 23
NUT 6MM
0831000063
€ 2.00
24
3491013A01
ref: 24
-34910-45C00
CABLE ASSY,SPEEDOMETER
3491013A01
€ 87.50
25
3493845C02
ref: 25
CLAMP,SPEEDOMETER CABLE
€ 6.50
26
3493811D00
ref: 26
CLAMP,SPEEDOMETER CABLE
€ 7.50
27-1
0910610059
ref: 27-1
MODEL L/M/N
BOLT
€ 2.00
27-2
0910310195
ref: 27-2
MODEL P/R
BOLT(10X12)
0910310195
€ 2.00
28-1
0211205164
ref: 28-1
MODEL L/M/N/P
SCREW
0211205164
€ 2.00
28-2
0211205163
ref: 28-2
MODEL R/T
SCREW
0211205163
€ 2.00
29
3493917D00
ref: 29
MODEL T
GUIDE,SPEEDOMETER CABLE NO.3
3493917D00
€ 5.50
30
0155006123
ref: 30
MODEL T
BOLT
0155006123
€ 2.50
