TRANSMISSION

VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

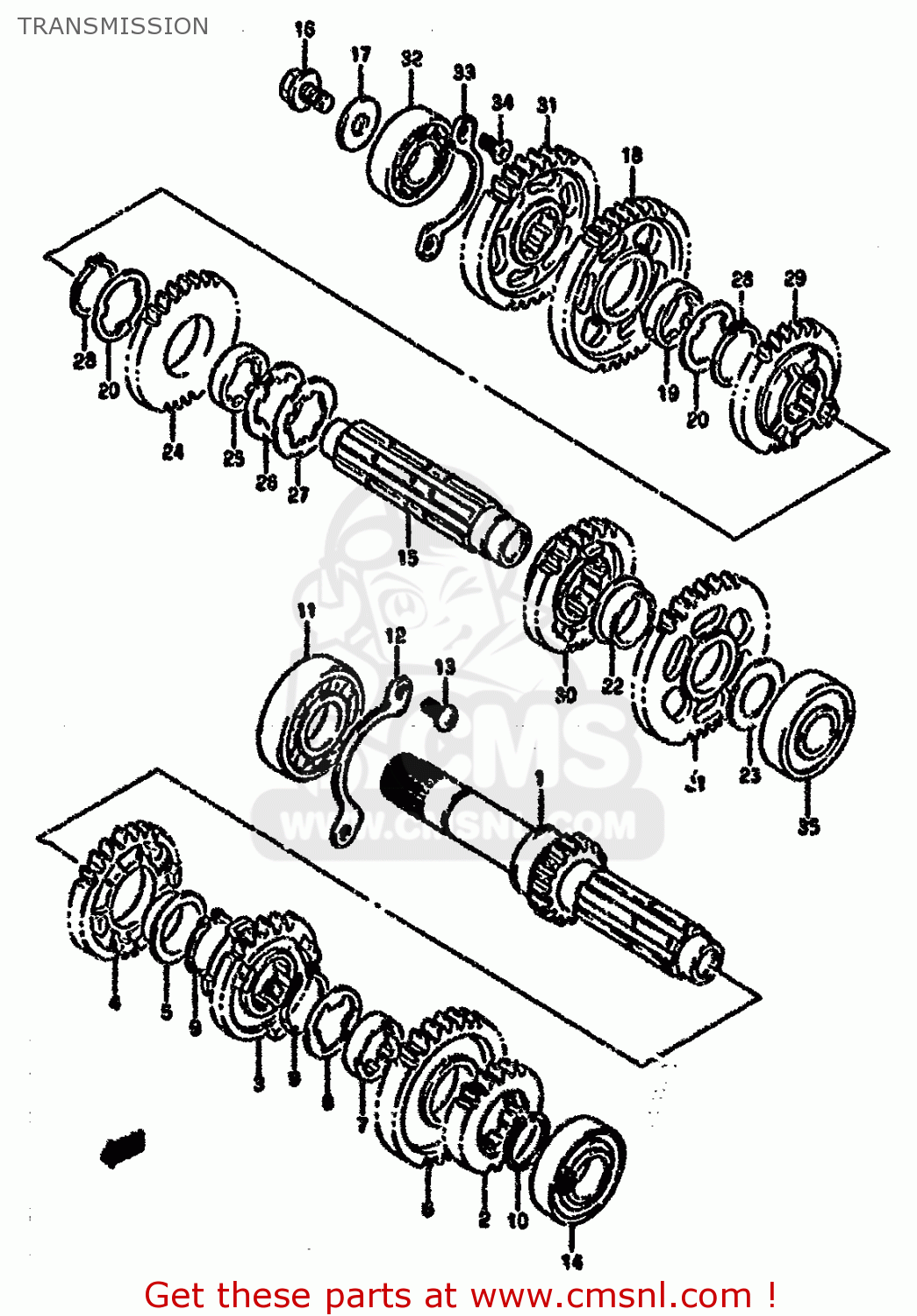

Transmission diagram VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

TRANSMISSION VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
TRANSMISSION VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
TRANSMISSION VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2412045C10
ref: 1
-24120-45C02
SHAFT COMP,COUNTER
€ 159.50
2-1
2422138A01
ref: 2-1
MODEL L/M/N
GEAR,2ND DRIVE(NT:19)
2422138A01
€ 91.50
2-2
2422138A20
ref: 2-2
MODEL P/R
GEAR,SECOND DRIVE
€ 91.50
2-3
2422138A01
ref: 2-3
MODEL T
GEAR,2ND DRIVE(NT:19)
2422138A01
€ 91.50
3
2423145C00
ref: 3
GEAR,3RD DRIVE(NT:22)
€ 97.00
4
2424138A00
ref: 4
GEAR,4TH DRIVE(NT:25)
2424138A00
€ 101.00
5
0930125001
ref: 5
BUSHING
€ 12.50
6
2425138A00
ref: 6
GEAR,FIFTH DRIVE (NT:27)
€ 93.50
7
2425238A00
ref: 7
BUSHING
€ 10.50
8
0916725016
ref: 8
WASHER,LOCK
0916725016
€ 3.00
9
0938025003
ref: 9
RING,SNAP
0938025003
€ 3.00
10
0938025010
ref: 10
CIRCLIP
0938025010
€ 3.00
11
0926225080
ref: 11
BEARING(25X62X17)
0926225080
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474138A00
€ 4.00
13
0211206123
ref: 13
SCREW
0211206123
€ 1.50
14
0926220081
ref: 14
BEARING 20X47X14
0926220081
€ 27.50
15
2413138A03
ref: 15
SHAFT,DRIVE
€ 106.50
16
2413538A02
ref: 16
NOZZLE,DRIVE SHAFT
2413538A02
€ 5.00
17
0821110305
ref: 17
WASHER
0821110305
€ 3.00
18-1
2431138A01
ref: 18-1
MODEL L/M/N
GEAR,FIRST DRIVEN (NT:32)
€ 97.50
18-2
2431138A20
ref: 18-2
MODEL P/R/T
GEAR,1ST DRIVEN(NT:32)
€ 105.00
19
2433207A00
ref: 19
BUSH
2433207A00
€ 9.50
20
0916728001
ref: 20
WASHER,LOCK
0916728001
€ 3.00
21-1
2432138A00
ref: 21-1
MODEL L/M/N
GEAR,2ND DRIVEN(NT:31)
2432138A00
€ 86.00
21-2
2432138A20
ref: 21-2
MODEL P/R-24321-38A0
GEAR,SECOND DRIVEN
€ 86.00
21-3
2432138A00
ref: 21-3
MODEL T
GEAR,2ND DRIVEN(NT:31)
2432138A00
€ 86.00
22
0930122002
ref: 22
BUSH
0930122002
€ 7.50
23
0821120341
ref: 23
WASHER
0821120341
€ 2.00
24
2433138A02
ref: 24
GEAR,3RD DRIVEN(NT:27)
2433138A02
€ 86.00
25
2433207A00
ref: 25
BUSH
2433207A00
€ 9.50
26
0916928001
ref: 26
WASHER
0916928001
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
0833131286
ref: 28
CIRCLIP
0833131286
€ 2.50
29
2434145C00
ref: 29
GEAR,4TH DRIVEN(NT:25)
€ 106.50
30
2435145C20
ref: 30
GEAR,FIFTH DRIVEN (NT:23)
2435145C20
€ 81.00
31
2462145C00
ref: 31
GEAR,OVER DRIVING DRIVE
€ 81.50
32
0926220073
ref: 32
BEARING(20X52X15)
0926220073
€ 19.00
33
2475138A00
ref: 33
RETAINER,DRIVE SHAFT BEARING
€ 4.00
34
0212206123
ref: 34
SCREW
0212206123
€ 3.00
35
0926220080
ref: 35
BEARING(20X52X15)
0926220080
€ 21.50
