STARTER CLUTCH

VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

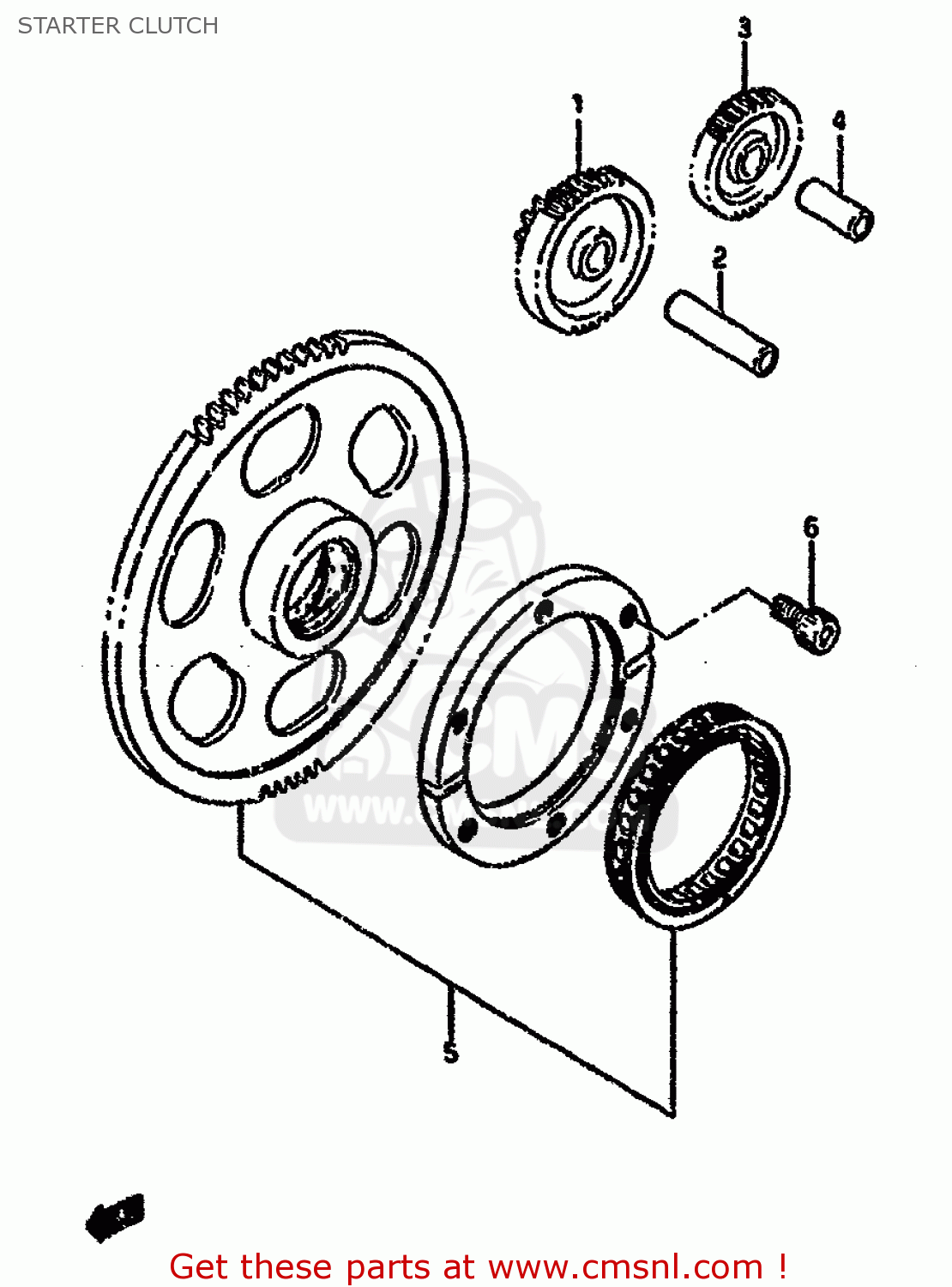

Starter clutch diagram VX800 1993 (P) (E02 E04 E17 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1261138A01
ref: 1
NT:12/41

GEAR,STARTER IDLE NO.1

€ 57.50

2-1

0920610003
ref: 2-1
MODEL L/M/N/P/R

PIN

€ 9.00

2-2

0920210008
ref: 2-2
MODEL T

PIN,10X43

€ 9.00

1261138A11
ref: 3
NT:32

GEAR,STARTER IDLE NO.2

€ 39.50

0920210006
ref: 4

PIN

€ 6.50

1260038831
ref: 5

CLUTCH SET,STARTER

€ 307.00

0713008163
ref: 6

BOLT

€ 3.00

all assemblies
