AIR CLEANER (REAR)
VX800U 1992 (N) (E22)

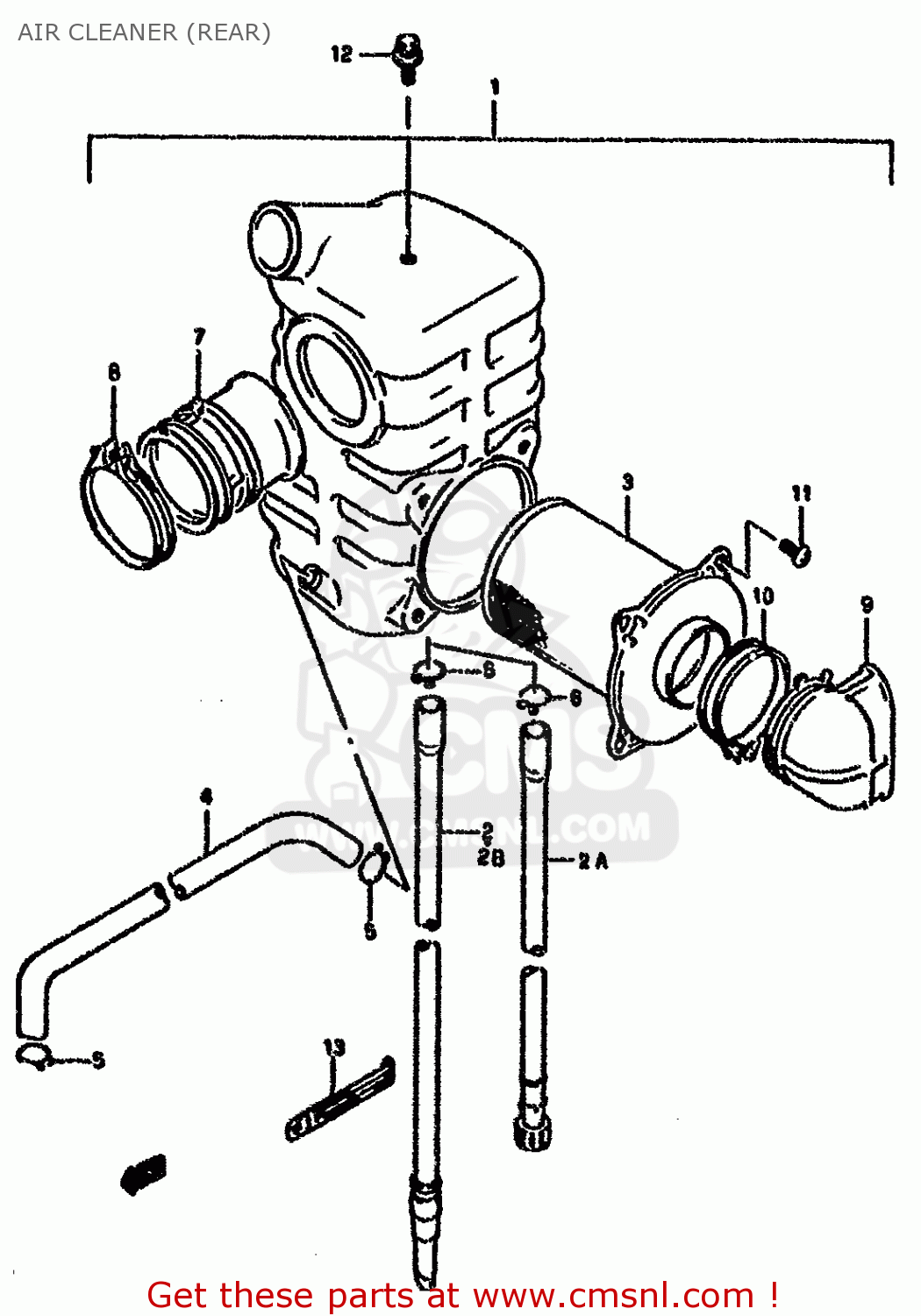

Air cleaner (rear) diagram VX800U 1992 (N) (E22)
AIR CLEANER (REAR) VX800U 1992 (N) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370045C50
ref: 1-1
E1,MODEL L E16
CLEANER ASSEMBLY,AIR
€ 139.50
1-2
1370045C60
ref: 1-2
E2,E4,E15,E17,E18,E2
CLEANER ASSEMBLY,AIR,REAR
€ 139.50
1-3
1370045C90
ref: 1-3
MODEL T
CLEANER ASSY,AIR REAR
€ 156.00
1-4
1370045C61
ref: 1-4
MODEL T E18
CLEANER ASSEMBLY,AIR,REAR
€ 139.50
2
1387011458
ref: 2
MODEL L/M/N/P/R
TUBE,DRAIN
€ 13.50
2A
1387011308
ref: 2A
MODEL T
TUBE,DRAIN
€ 14.00
2B
1387011458
ref: 2B
MODEL T E18
TUBE,DRAIN
€ 13.50
3-1
1378045C00
ref: 3-1
MODEL L/M/N/P/R MODE
FILTER ASSY,AIR
€ 42.00
3-2
1378045C10
ref: 3-2
MODEL L/M/N/P/R E2,E
FILTER ASSY,AIR
€ 42.00
3-3
1378045C40
ref: 3-3
MODEL T
FILTER ASSY,CLEANER
€ 43.50
3-4
1378045C10
ref: 3-4
MODEL T E18
FILTER ASSY,AIR
€ 42.00
4
1385345C50
ref: 4
TUBE,BREATHER
€ 13.00
5
0940114301
ref: 5
CLIP
€ 2.00
6
0940113409
ref: 6
-13824-00A00
CLIP
€ 2.50
7
1388145C50
ref: 7
TUBE,OUTLET
€ 20.50
8
0940258208
ref: 8
CLAMP
€ 5.50
9
1389145C01
ref: 9
-13891-45C00
TUBE,INLET
€ 21.00
10
0940256208
ref: 10
CLAMP
€ 3.50
11
0214205087
ref: 11
SCREW
€ 2.00
12-1
0117706125
ref: 12-1
MODEL L/M/N/P
BOLT
€ 2.00
12-2
0158006123
ref: 12-2
MODEL R
BOLT
€ 2.00
12-3
0155006123
ref: 12-3
MODEL T
BOLT
€ 2.50
13-1
0940410404
ref: 13-1
MODEL L/M/N/P/R
CLAMP
€ 2.50
13-2
0940410417
ref: 13-2
MODEL T
CLAMP(L:97)
€ 2.50
