WATER PUMP
VX800U 1992 (N) (E22)

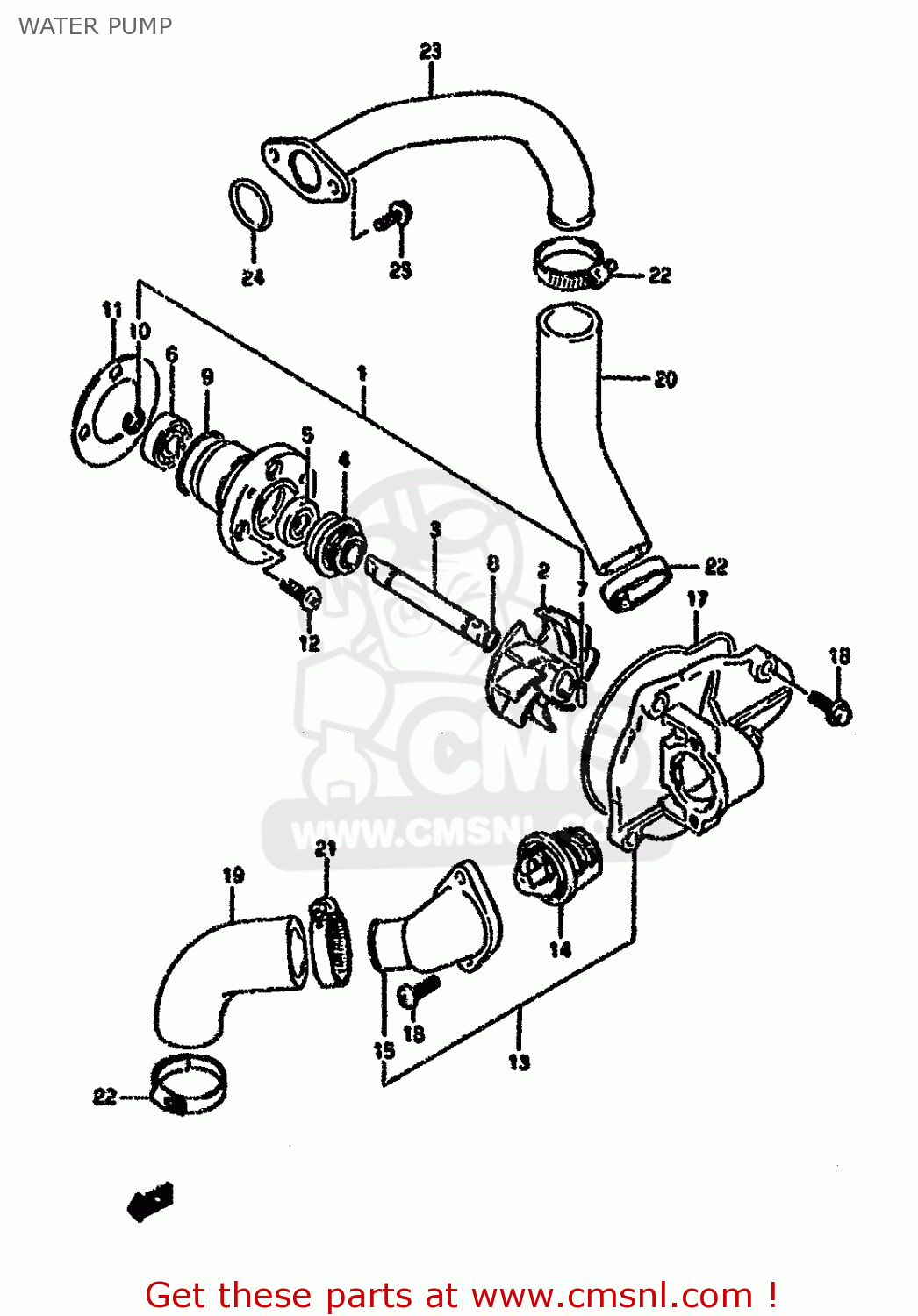

Water pump diagram VX800U 1992 (N) (E22)
WATER PUMP VX800U 1992 (N) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1740038A02
ref: 1
PUMP ASSEMBLY,WATER
€ 133.50
2
1749138A00
ref: 2
IMPELLER
€ 12.50
3
1751138A00
ref: 3
SHAFT
€ 30.50
4
1747046A00
ref: 4
SEAL,MECHANICAL
€ 21.50
5-1
1746138A00
ref: 5-1
MODEL L/M/N/P/R
OILSEAL
€ 4.50
5-2
0928310004
ref: 5-2
MODEL T
SEAL,OIL(10X21X5)
€ 4.50
6-1
1745138A00
ref: 6-1
MODEL L/M/N/P/R
BEARING,10X26X8
€ 13.00
6-2
0926210004
ref: 6-2
MODEL T
BEARING(10X22X6)
€ 20.50
7
1751638A00
ref: 7
PIN
€ 4.00
8
1751538A00
ref: 8
O RING
€ 1.50
9
1741738A00
ref: 9
O RING
€ 2.50
10
0833211086
ref: 10
E RING
€ 2.00
11
1743138A10
ref: 11
-17431-38A00-17431-3
GASKET,WATER PUMP (NAS)
€ 5.00
12
0211206123
ref: 12
SCREW
€ 1.50
13
1741045C00
ref: 13
CAP ASSY,WATER PUMP
€ 117.00
14
1767033410
ref: 14
THERMOSTAT,WATER
€ 37.00
15
1741245C00
ref: 15
CONNECTOR
€ 47.00
16
0211206167
ref: 16
SCREW
€ 2.50
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
€ 5.00
18-1
0154706207
ref: 18-1
MODEL L/M/N/P
BOLT
€ 2.50
18-2
0154706203
ref: 18-2
MODEL R/T
SCREW
€ 2.50
19
1785738A02
ref: 19
HOSE,WATER PUMP IN
€ 16.50
20
1785838A01
ref: 20
HOSE,WATER
€ 16.50
21-1
0940230502
ref: 21-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
21-2
0940232511
ref: 21-2
MODEL T
CLAMP
€ 11.50
22-1
0940230502
ref: 22-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
22-2
0940232511
ref: 22-2
MODEL T
CLAMP
€ 11.50
23
1789038A00
ref: 23
PIPE,CYLINDER INLET
€ 45.50
24
0928024007
ref: 24
O RING(D:2.3,ID:24.4)
€ 2.00
25-1
0154706167
ref: 25-1
MODEL L/M/N/P
BOLT
€ 2.00
25-2
0154706163
ref: 25-2
MODEL R/T
BOLT
€ 2.50
