CRANKSHAFT
VX800U 1992 (N) (E22)

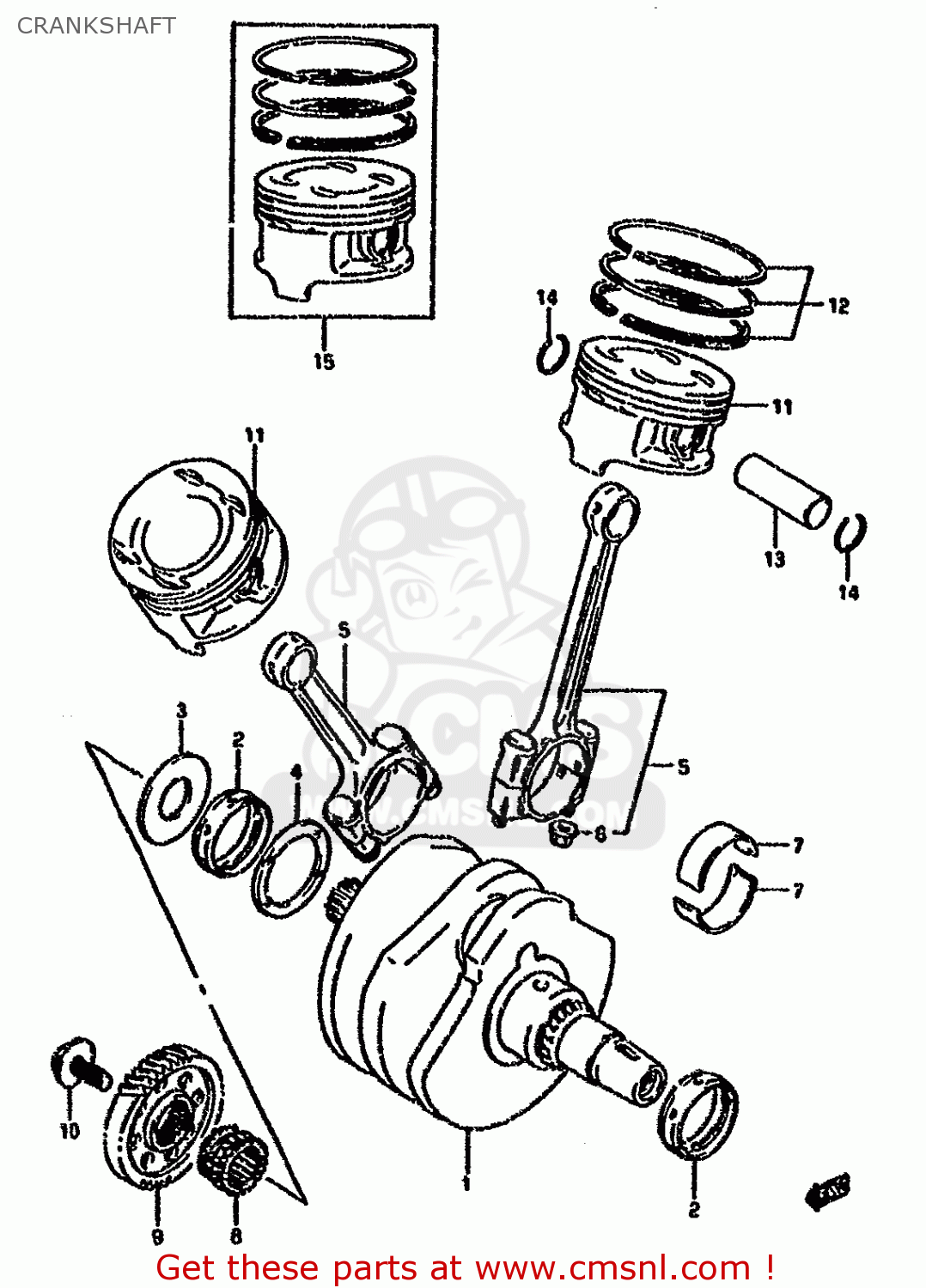

Crankshaft diagram VX800U 1992 (N) (E22)
CRANKSHAFT VX800U 1992 (N) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1200045810
ref: 1
-12220-45C01
CRANKSHAFT
€ 1,280.50
2
1222938A00
ref: 2
INCLUDED CRANKCASE S
METAL,CRANKSHAFT
€ 22.50
3
1265238A00
ref: 3
WASHER,CRANK THRUST
€ 47.00
4-1
0916048001
ref: 4-1
WASHER(48.1X64X1.94)
€ 18.50
4-2
0916048002
ref: 4-2
WASHER(48.1X64X1.96)
€ 17.00
4-3
0916048003
ref: 4-3
WASHER(48.1X64X1.99)
€ 17.00
4-4
0916048004
ref: 4-4
WASHER(48.1X64X2.01)
€ 17.00
4-5
0916048005
ref: 4-5
WASHER(48.1X64X2.04)
€ 17.00
4-6
0916048006
ref: 4-6
WASHER(48.1X64X2.06)
€ 17.00
4-7
0916048007
ref: 4-7
WASHER(48.1X64X2.09)
€ 17.00
4-8
0916048008
ref: 4-8
WASHER(48.1X64X2.11)
€ 17.00
4-9
0916048009
ref: 4-9
WASHER(48.1X64X2.14)
€ 17.00
4-10
0916048010
ref: 4-10
WASHER(48.1X64X2.16)
€ 17.00
5-1
1216045C10
ref: 5-1
MODEL L/M/N/P/R
CONNECTING ROD ASSY
€ 118.50
5-2
1216045C20
ref: 5-2
MODEL T
CONNROD ASSY
€ 118.50
6
0915909001
ref: 6
NUT
€ 4.50
7-1
1216445C010A0
ref: 7-1
MODEL L/M/N/P/R
BEARING,CRANK PIN
€ 11.50
7-2
1216445C010B0
ref: 7-2
MODEL L/M/N/P/R
BEARING,CRANK PIN
€ 12.50
7-3
1216445C010C0
ref: 7-3
MODEL L/M/N/P/R
BEARING,CRANK PIN
€ 12.50
7-4
1216445C010D0
ref: 7-4
MODEL L/M/N/P/R
BEARING,CRANK PIN
€ 14.00
7-5
1216445C010E0
ref: 7-5
MODEL L/M/N/P/R
BEARING,CRANK PIN
€ 12.50
7-6
1216438E000A0
ref: 7-6
MODEL T
BEARING,CRANK PIN
€ 9.00
7-7
1216438E000B0
ref: 7-7
MODEL T
BEARING,CRANK PIN
€ 9.00
7-8
1216438E000C0
ref: 7-8
MODEL T
BEARING,CRANK PIN
€ 9.50
7-9
1216438E000D0
ref: 7-9
MODEL T
BEARING,CRANK PIN
€ 9.50
7-10
1216438E000E0
ref: 7-10
MODEL T
BEARING,CRANK PIN
€ 9.00
8
1273138A00
ref: 8
SPROCKET,CAM CHAIN DRIVE,R
€ 34.00
9
2111138A00
ref: 9
GEAR,PRIMARY DRIVE
€ 99.50
10
0910312013
ref: 10
BOLT(12X28)
€ 6.00
11
1211145C000F0
ref: 11
PISTON
€ 105.50
12
1214045C10
ref: 12
RING SET,PISTON
€ 60.50
13
1215124A00
ref: 13
PIN,PISTON
€ 18.50
14
0938120004
ref: 14
CIRCLIP,PISTON PIN
€ 2.00
15-1
1210045C00050
ref: 15-1
OPT
PISTON SET(OS:0.5)
€ 147.50
15-2
1210045C00100
ref: 15-2
OPT
PISTON SET (OS:1.0)
€ 110.00
