STARTING MOTOR
VX800U 1992 (N) (E22)

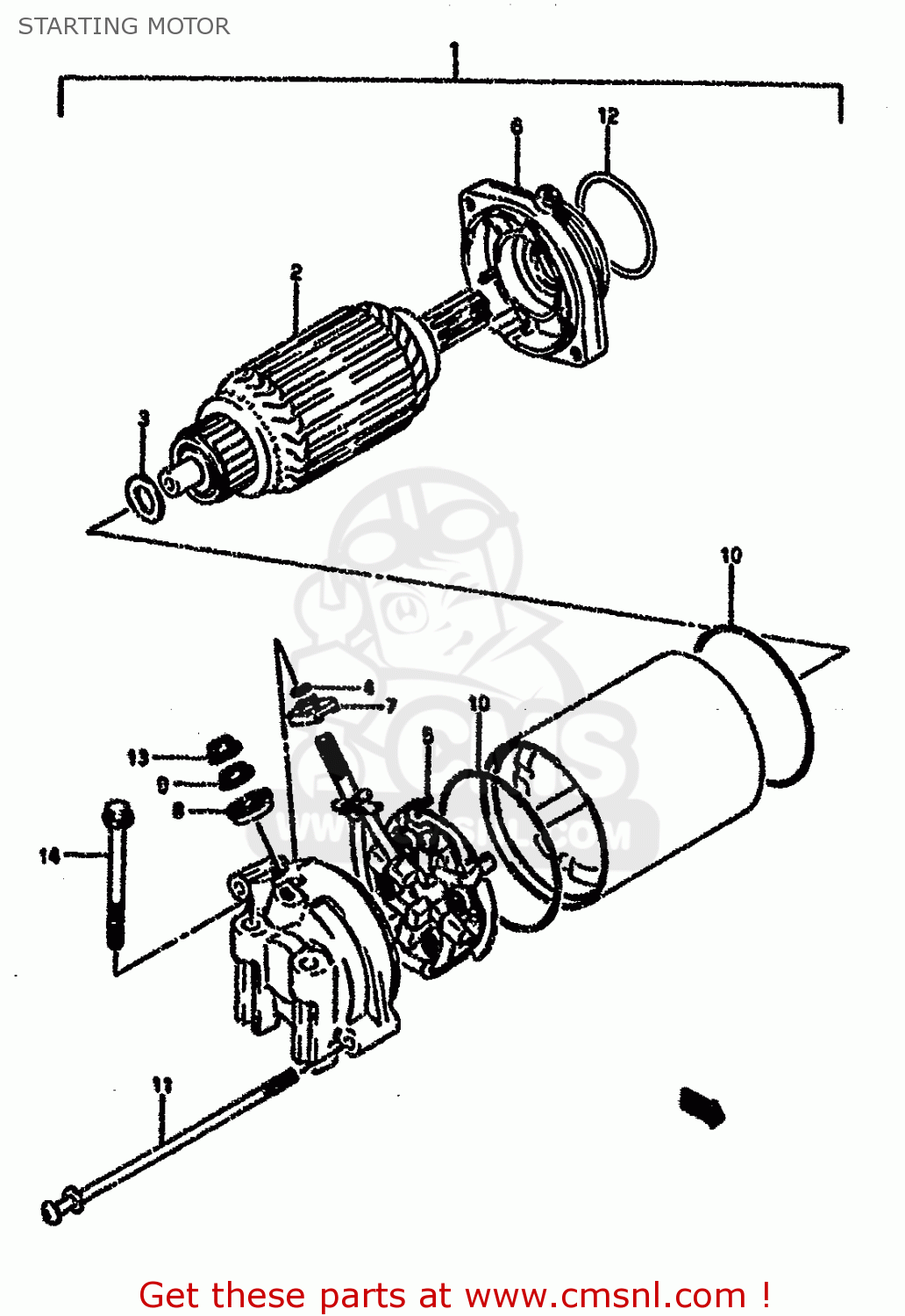

Starting motor diagram VX800U 1992 (N) (E22)
STARTING MOTOR VX800U 1992 (N) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110045C00
ref: 1-1
MODEL L/M/N/P/R
MOTOR ASSEMBLY,STARTING
€ 472.00
1-2
3110045C01
ref: 1-2
MODEL T
MOTOR ASSY,STARTING
€ 472.00
2
3131045C00
ref: 2
ARMATURE
€ 127.00
3
3117043400
ref: 3
-31361-47010
SHIM SET,STARTING MOTOR
€ 3.50
4
3114338300
ref: 4
O RING
€ 3.50
5
3113245C00
ref: 5
HOLDER SET,BRUSH
€ 46.00
6
3115038A00
ref: 6
BRACKET SET
€ 79.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117388C00
ref: 8
BUSHING
€ 6.00
9
0831000067
ref: 9
NUT
€ 2.50
10
3126444110
ref: 10
O RING
€ 8.00
11-1
3128131D00
ref: 11-1
MODEL L/M/N/P/R-3128
BOLT
€ 5.00
11-2
3128124B10
ref: 11-2
MODEL T
BOLT
€ 5.00
12
3115638A00
ref: 12
O RING
€ 8.00
13
0836135068
ref: 13
NUT
€ 2.00
14
0154706603
ref: 14
BOLT
€ 3.50
