CYLINDER HEAD (REAR)
VX800U 1993 (P) (E22)

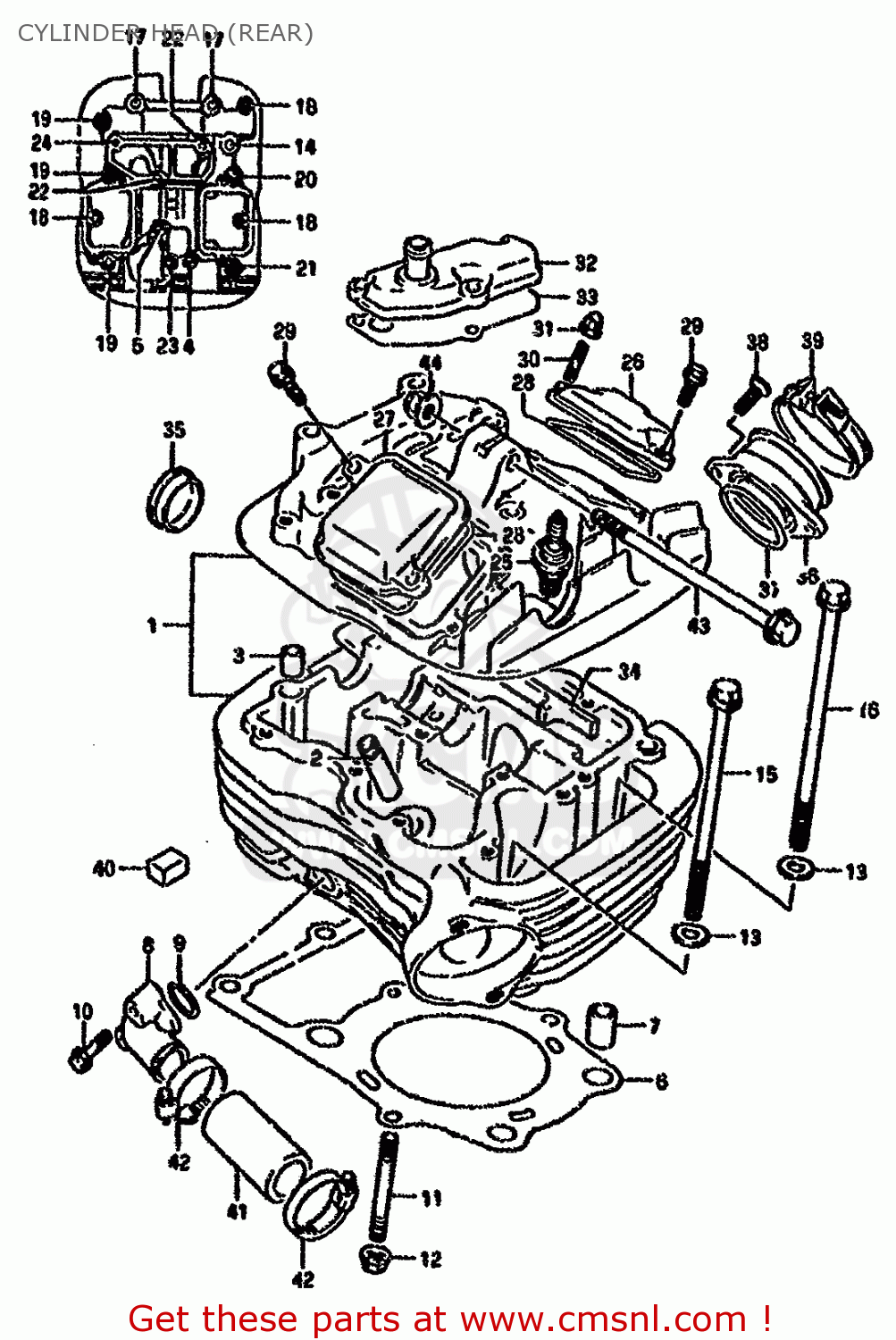

Cylinder head (rear) diagram VX800U 1993 (P) (E22)
CYLINDER HEAD (REAR) VX800U 1993 (P) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110345C00
ref: 1-1
MODEL L/M/N/P
HEAD ASSEMBLY,CYLINDER,REAR
€ 712.00
1-2
1110345C21
ref: 1-2
MODEL R/T
HEAD ASSY,CYLINDER REAR
€ 912.50
2
1111538A71
ref: 2
GUIDE,VALVE
€ 18.50
3
0920611011
ref: 3
PIN(11X14)
€ 6.00
4-1
0910306101
ref: 4-1
MODEL L/M/N/P
BOLT(6X50)
€ 2.00
4-2
0910306502
ref: 4-2
MODEL R/T
BOLT (6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114245C00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
€ 54.00
7
0421113189
ref: 7
PIN
€ 2.50
8
1116945C10
ref: 8
-11169-45C00
UNION,CYLINDER HEAD WATER
€ 28.50
9
0928018004
ref: 9
O RING(D:2.4,ID:17.8)
€ 5.50
10-1
0154706257
ref: 10-1
MODEL L/M/N/P
BOLT
€ 2.50
10-2
0154706253
ref: 10-2
MODEL R/T
SCREW
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
€ 4.50
12-1
0831610087
ref: 12-1
MODEL L/M/N/P
NUT
€ 2.50
12-2
0831610083
ref: 12-2
MODEL R/T
NUT
€ 3.00
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
€ 2.50
14-1
0910308040
ref: 14-1
MODEL L/M/N/P
BOLT(8X140)
€ 4.00
14-2
0910308502
ref: 14-2
MODEL R/T
BOLT (8X140)
€ 3.00
15
0910310133
ref: 15
BOLT(10X155)
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
€ 7.50
17
0910308501
ref: 17
BOLT 8X235
€ 9.00
18-1
0155006257
ref: 18-1
MODEL L/M/N/P
BOLT
€ 2.50
18-2
0155006253
ref: 18-2
MODEL R/T
BOLT
€ 2.50
19-1
0155006307
ref: 19-1
MODEL L/M/N/P
BOLT
€ 2.00
19-2
0155006303
ref: 19-2
MODEL R/T
BOLT
€ 2.50
20-1
0712006307
ref: 20-1
MODEL L/M/N/P
BOLT
€ 2.50
20-2
0712006303
ref: 20-2
MODEL R/T
BOLT
€ 3.00
21-1
0155006407
ref: 21-1
MODEL L/M/N/P
BOLT
€ 2.50
21-2
0155006403
ref: 21-2
MODEL R/T
BOLT
€ 2.00
22
0910306102
ref: 22
BOLT(6X55)
€ 2.50
23-1
0910306101
ref: 23-1
MODEL L/M/N/P
BOLT(6X50)
€ 2.00
23-2
0910306502
ref: 23-2
MODEL R/T
BOLT (6X50)
€ 2.00
24-1
0155006207
ref: 24-1
MODEL L/M/N/P
BOLT
€ 2.50
24-2
0155006203
ref: 24-2
MODEL R/T
BOLT
€ 2.50
25-1
0948200334
ref: 25-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
25-2
0948200335111
ref: 25-2
SPARK PLUG X24EPR-U9
€ 4.00
25-3
0948200354
ref: 25-3
OPT
PLUG,SPARK(DPR7EA-9)
€ 4.00
25-4
0948200355111
ref: 25-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
25-5
0948200330
ref: 25-5
OPT
PLUG,SPARK(DPR9EA-9)
€ 4.00
25-6
0948200331111
ref: 25-6
OPT
SPARK PLUG X27EPR-U9
€ 4.00
26-1
1117545C00
ref: 26-1
MODEL L/M/N
CAP,INSPECTION,INTAKE
€ 10.00
26-2
1117538A10
ref: 26-2
MODEL P/R/T
CAP,INSP.INT
€ 14.50
27-1
1117645C00
ref: 27-1
MODEL L/M/N
CAP,INSPECTION,EXHAUST
€ 14.50
27-2
1117638A10
ref: 27-2
MODEL P/R/T
CAP,INSPECTION,EXHAUST
€ 14.50
28
1117738A00
ref: 28
GASKET,INSPECTION CAP (NAS)
€ 5.00
29-1
0154706207
ref: 29-1
MODEL L/M/N/P
BOLT
€ 2.50
29-2
0154706203
ref: 29-2
MODEL R/T
SCREW
€ 2.50
30
0142106168
ref: 30
STUD 6X16
€ 2.00
31-1
0831320067
ref: 31-1
MODEL L/M/N/P
NUT
€ 2.00
31-2
0831320063
ref: 31-2
MODEL R/T
NUT
€ 2.00
32
1118045C10
ref: 32
-11180-45C00
COVER,BREATHER
€ 22.50
33
1118738A02H17
ref: 33
GASKET,BREATHER COVER (NAS)
€ 12.00
34
1117938A00
ref: 34
PLATE,HEAD COVER RR
€ 7.50
35
0924130004
ref: 35
PLUG(OD:30)
€ 6.50
36
1312045C00
ref: 36
PIPE COMP,INTAKE,REAR
€ 40.50
37
0928040003
ref: 37
O-RING (D:2.4 ID:39.7)
€ 3.50
38-1
0212206205
ref: 38-1
MODEL L/M/N/P
SCREW
€ 2.00
38-2
0212206205
ref: 38-2
MODEL R/T
SCREW
€ 2.00
39
0940252501
ref: 39
-13170-05A00
CLAMP
€ 9.00
40
1115238A00
ref: 40
PAD
€ 3.50
41
1785438A00
ref: 41
HOSE,CYLINDER HEAD JOINT
€ 8.50
42
0940228511
ref: 42
CLAMP
€ 8.50
43
0910308212
ref: 43
BOLT(8X135)
€ 7.00
44-1
0915908064
ref: 44-1
MODEL L/M/N/P
NUT (8MM)
€ 7.00
44-2
0915908074
ref: 44-2
MODEL R/T
NUT
€ 7.00
