HANDLE SWITCH

VX800U 1993 (P) (E22)

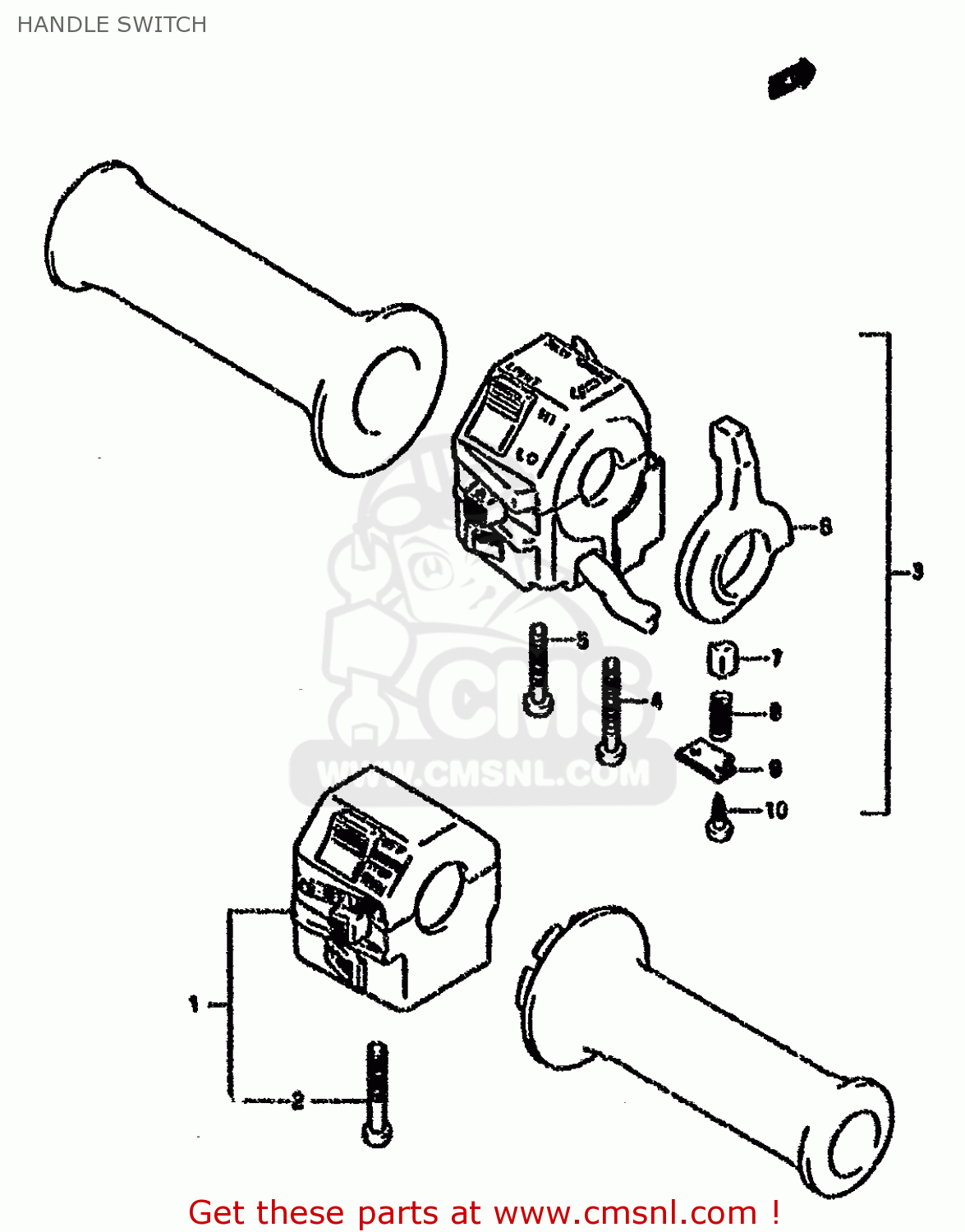

Handle switch diagram VX800U 1993 (P) (E22)

HANDLE SWITCH VX800U 1993 (P) (E22)

HANDLE SWITCH VX800U 1993 (P) (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3720045C01
ref: 1-1
MODEL L/M/N/P/R

SWITCH ASSY,R

€ 129.00

1-2

3720045C02
ref: 1-2
MODEL T

SWITCH ASSY,HA

€ 129.00

1-3

3720045C21
ref: 1-3
MODEL N/P/R E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

2

0211205455
ref: 2

SCREW, 5X45

€ 4.00

3

3740032B01
ref: 3
-37400-32B00

SWITCH ASSY

€ 146.00

4

0211205455
ref: 4

SCREW, 5X45

€ 4.00

5

0211205405
ref: 5

SCREW

€ 2.00

6

3748130B01
ref: 6
-37481-30B00

LEVER,CHOKE

€ 13.00

7

3748230B00
ref: 7

PIECE,SLIDE

€ 4.00

8

3748330B00
ref: 8

SPRING

€ 7.50

9

3748630B00
ref: 9

PLATE

€ 3.00

10

0351104123
ref: 10

SCREW, TRUNK BOX

€ 1.50
