STAND GRIP-CARRIER
VX800U 1993 (P) (E22)

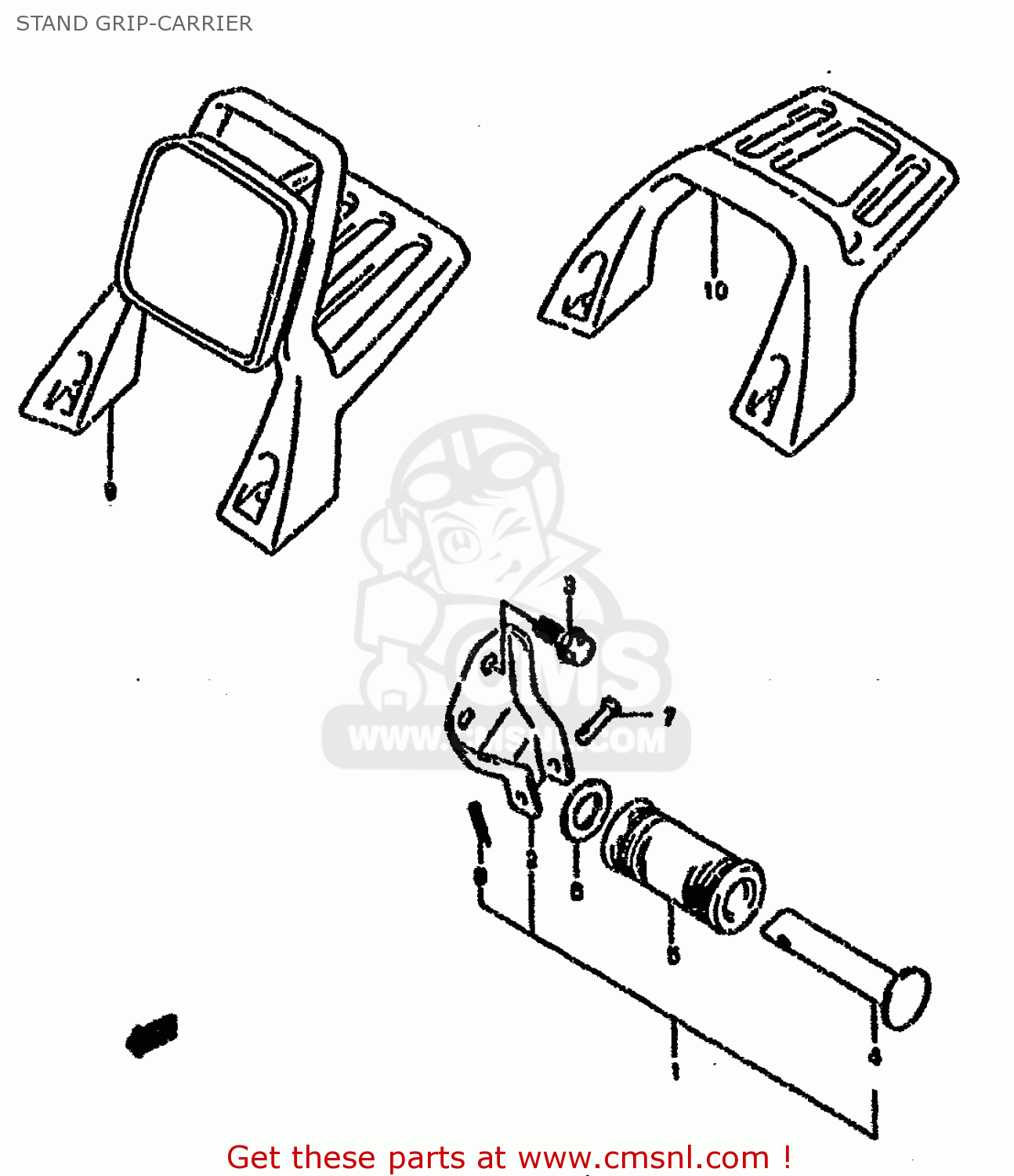

Stand grip-carrier diagram VX800U 1993 (P) (E22)
STAND GRIP-CARRIER VX800U 1993 (P) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4390045810
ref: 1
OPT
GRIP SET,CTR STAND
€ 76.50
2
4399045C00
ref: 2
OPT
HOLDER COMP,CENTER STAND
€ 46.50
3-1
0151708165
ref: 3-1
OPT,MODEL L/M/N/P
BOLT, LOWER
€ 3.00
3-2
0155008163
ref: 3-2
OPT,MODEL R/T
BOLT
€ 3.00
4
4361044000
ref: 4
OPT
BAR,PILLION FOOTREST
€ 14.50
5
4399545C00
ref: 5
OPT
RUBBER,STAND GRIOP (OPT)
€ 21.00
6
0916019006
ref: 6
OPT
WASHER (19.5X32X2)
€ 2.00
7-1
0920006010
ref: 7-1
OPT,MODEL L/M/N/P
PIN
€ 2.50
7-2
0920006033
ref: 7-2
OPT,MODEL R/T
PIN
€ 2.00
8
0411120158
ref: 8
OPT
PIN
€ 1.50
9-1
463004581223S
ref: 9-1
OPT,MODEL L/M/N/P
CARRIER SET,SUPPORT
€ 411.50
9-2
463004581221R
ref: 9-2
OPT,MODEL R/T
CARRIER SET,SPORT (SILVER)
€ 468.50
10-1
463004582223S
ref: 10-1
OPT,MODEL L/M/N/P
CARRIER SET,SUPPORT
€ 87.00
10-2
463004582221R
ref: 10-2
OPT,MODEL R/T
CARRIER SET,SP
€ 214.50
