Buy Suzuki VX Parts Online


REAR CALIPER (MODEL P/R/T)

VX800U 1993 (P) (E22)

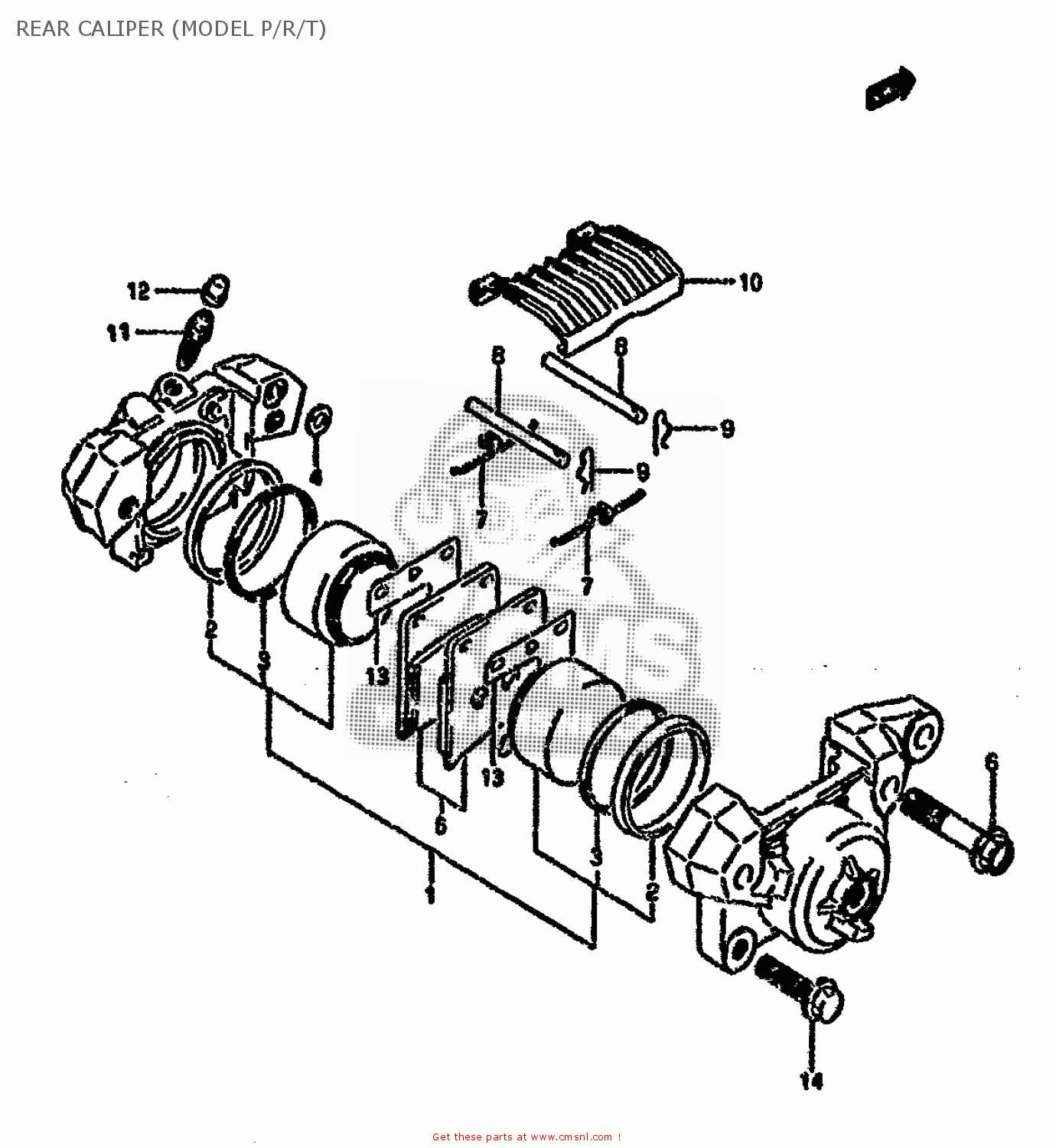

Rear caliper (model p/r/t) diagram VX800U 1993 (P) (E22)

REAR CALIPER (MODEL P/R/T) VX800U 1993 (P) (E22)
REAR CALIPER (MODEL P/R/T) VX800U 1993 (P) (E22)
REAR CALIPER (MODEL P/R/T) VX800U 1993 (P) (E22)
prices are in EUR
ref
part #
description
quantity
0
6910045C21
ref: 0
CALIPER ASSY,R
€ 493.00
1
6910045880
ref: 1
PISTON SET
6910045880
€ 152.50
2
5513666310
ref: 2
SEAL,FR CALIPE
5513666310
€ 8.50
3
6910845010
ref: 3
SEAL,WIPER
6910845010
€ 28.50
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
6910045890
ref: 5
-69130-45C00
PAD SET (NAS)
6910045890
€ 95.00
6-1
5914517C00
ref: 6-1
MODEL P
BOLT
5914517C00
€ 7.00
6-2
5914516700
ref: 6-2
MODEL R/T
BOLT,HOUSING
5914516700
€ 8.00
7
6914345001
ref: 7
SPRING
6914345001
€ 8.00
8
6914145000
ref: 8
PIN,PAD
6914145000
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
6914245000
€ 4.50
10
5915116701
ref: 10
COVER
5915116701
€ 13.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
5515666310
€ 6.00
13
6915245001
ref: 13
SHIM,RR CALIPER
6915245001
€ 9.50
14-1
0151708304
ref: 14-1
MODEL P
BOLT
0151708304
€ 3.00
14-2
0155008303
ref: 14-2
MODEL R/T
BOLT
0155008303
€ 3.00
