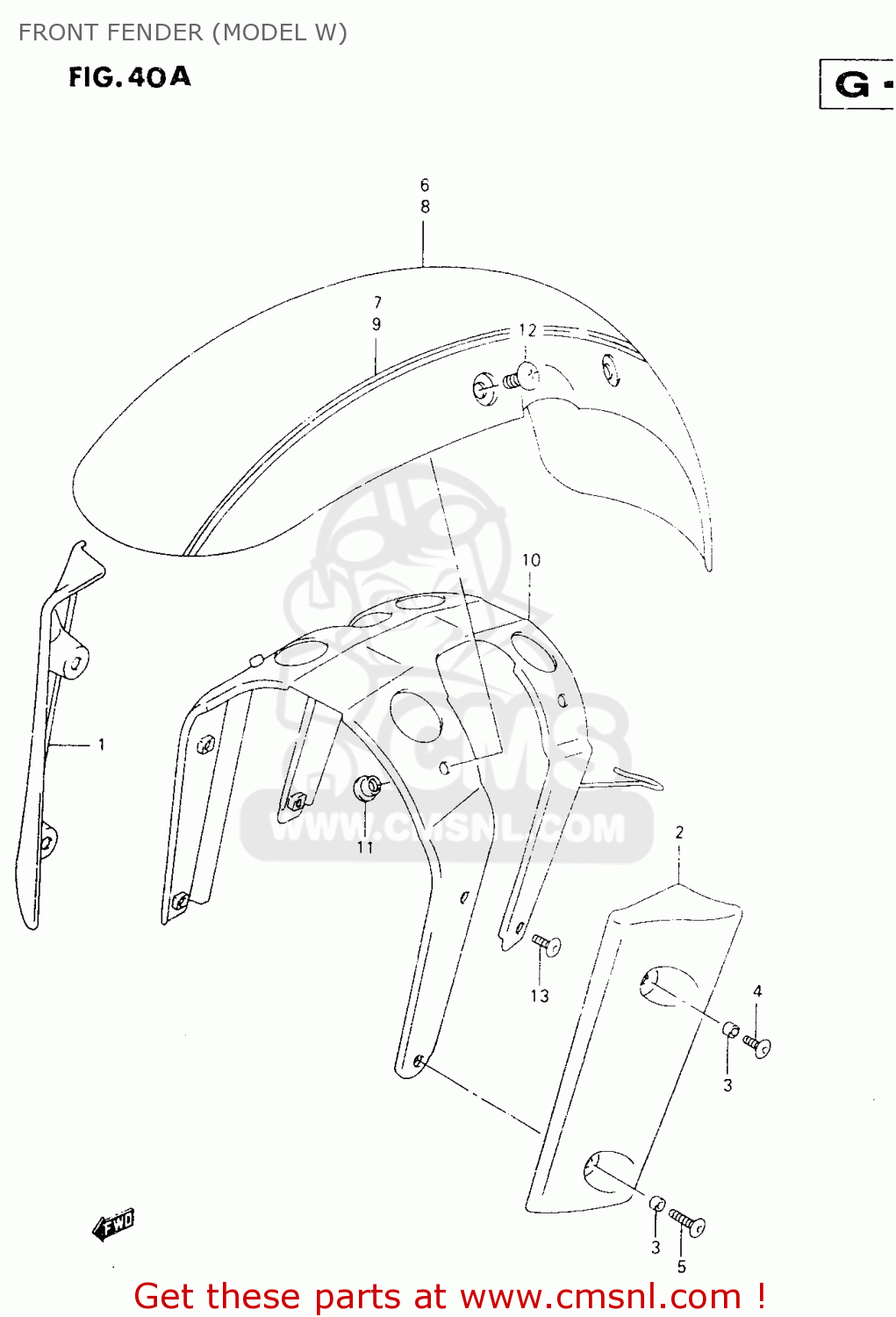

FRONT FENDER (MODEL W)

ref

part #

description

quantity

1

5188148E00
ref: 1

COVER,FR FORK SIDE,R

€ 65.50

2

5188248E00
ref: 2

COVER,FR FORK SIDE,L

€ 61.00

3

0918006245
ref: 3

SPACER(6.1X8X3.5)

€ 3.00

4

0913906027
ref: 4

SCREW(6X12)

€ 3.00

5

0913906028
ref: 5

SCREW(6X20)

€ 3.50

6-1

5311048E30E88
ref: 6-1

FENDER,FRONT

€ 212.00

6-2

5311048E30J8K
ref: 6-2

FENDER COMP,FRONT

€ 168.00

6-3

5311048E30E9N
ref: 6-3

FENDER,FRONT

€ 192.50

6-4

5311048E50E88
ref: 6-4
E22

FENDER,FR

€ 212.00

6-5

5311048E50J8K
ref: 6-5
E22

FENDER,FR

€ 168.00

6-6

5311048E50E9N
ref: 6-6
E22

FENDER,FR

€ 192.50

7-1

6815048E10J6D
ref: 7-1
FOR E88

TAPE SET,FR FENDER

€ 50.50

7-2

6815048E10J9G
ref: 7-2
FOR J8K

TAPE SET,FRONT FENDER

€ 66.00

7-3

6815048E10J9K
ref: 7-3
FOR E9N

TAPE SET,FR FENDER

€ 50.50

8-1

5311048E40J4M
ref: 8-1

FENDER,FRONT

€ 212.00

8-2

5311048E60J4M
ref: 8-2
E22

FENDER,FR

€ 212.00

9

6815048E20J6F
ref: 9
FOR J4M

TAPE SET,FR FENDER

€ 50.50

10

5312048E00
ref: 10

BRACE,FR FENDER

€ 65.50

11

5312233D00
ref: 11

NUT

€ 6.50

12

0913906027
ref: 12

SCREW(6X12)

€ 3.00

13

0913906030
ref: 13

SCREW(6X16)

€ 3.50

all assemblies
