HANDLE SWITCH

VZ800 1999 (X)

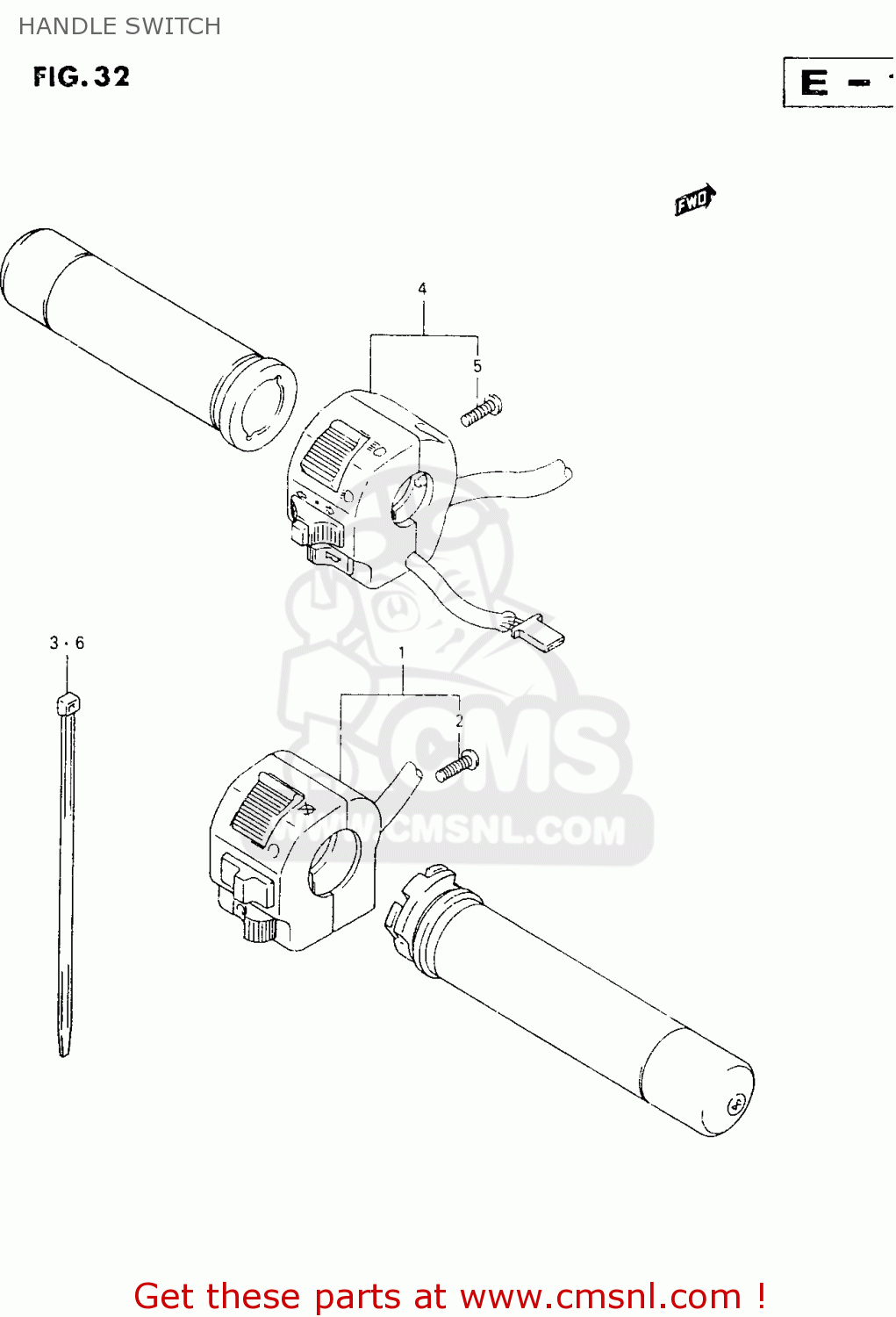

Handle switch diagram VZ800 1999 (X)

HANDLE SWITCH VZ800 1999 (X)

HANDLE SWITCH VZ800 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

3720048E10
ref: 1-1

SWITCH ASSY,HANDLE,R

€ 276.50

1-2

3720048E30
ref: 1-2
E24

SWITCH ASSY,HANDLE,R

€ 157.50

2

0211205163
ref: 2

SCREW

€ 2.00

3

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

4

3740048E10
ref: 4

SWITCH ASSY,HANDLE,L

€ 279.50

5

0211205163
ref: 5

SCREW

€ 2.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

all assemblies
