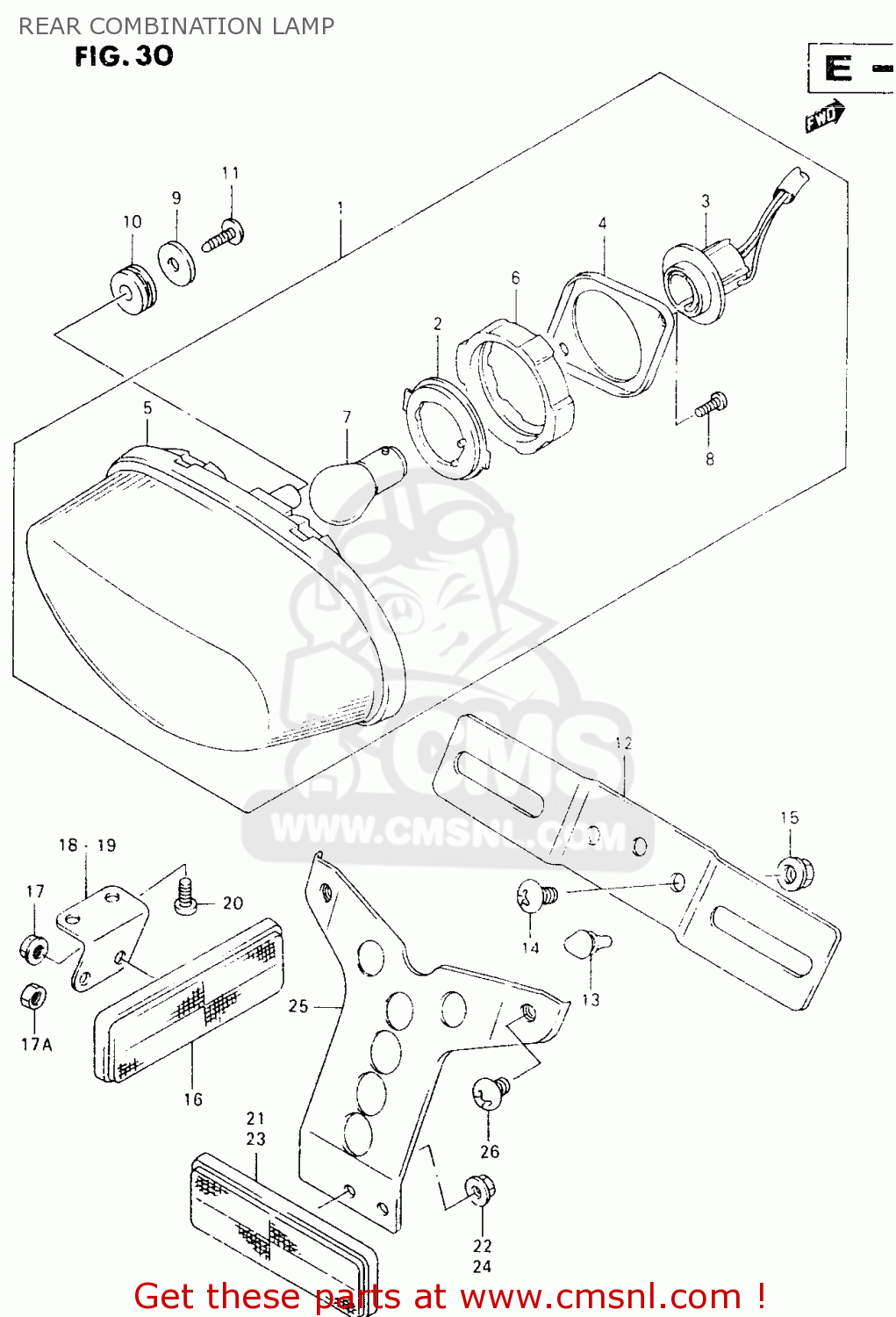

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571042E10
ref: 1

LAMP ASSY,REAR

€ 270.50

2

3571648B21
ref: 2

PLATE NO.1

€ 25.00

3

3571842E10
ref: 3

SOCKET & CORD

€ 56.50

4

3573648B21
ref: 4

PLATE NO.2

€ 16.50

5

3574042E10
ref: 5

LAMP UNIT

€ 92.00

6

3576542E00
ref: 6

CUSHION

€ 10.50

7

0947112083
ref: 7

BULB(12V21/5W)

€ 6.00

8

0321104123
ref: 8

SCREW

€ 1.50

9

0916005501
ref: 9

WASHER(5.5X20X1.2)

€ 2.00

10

0932010015
ref: 10

CUSHION

€ 2.50

11

0354105123
ref: 11

SCREW

€ 2.00

12

3592744110
ref: 12

PLATE,RR LICENSE

€ 22.50

13

0932106023
ref: 13

CUSHION

€ 2.00

14

0214206123
ref: 14

SCREW 6X12

€ 2.00

15

0831610063
ref: 15

NUT

€ 2.50

16

3595043431
ref: 16
E18

REFLEX REFLECTOR,FR SIDE

€ 12.00

17

0831610053
ref: 17
MODEL V E18

NUT

€ 2.50

17A

0831000053
ref: 17A
MODEL W E18

NUT

€ 2.50

18

3597438A20
ref: 18
E18

BRACKET,RR SIDE RR,L

€ 10.50

19

3597538A20
ref: 19
E18

BRACKET,RR SIDE RR,R

€ 10.50

20

0211206083
ref: 20

SCREW

€ 1.50

21

3597024D60
ref: 21
E17,E18,E22,E25

REFLECTOR ASSY,RR

€ 19.50

22

0831620053
ref: 22
E17,E18,E22,E25

NUT

€ 2.00

23

3597024D60
ref: 23

REFLECTOR ASSY,RR

€ 19.50

24

0831610053
ref: 24

NUT

€ 2.50

25

3597448E00
ref: 25

BRACKET,RR REFLECTOR

€ 8.00

26

0214206123
ref: 26

SCREW 6X12

€ 2.00

all assemblies
