ELECTRICAL (MODEL K5/K6/K7/K8)

VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

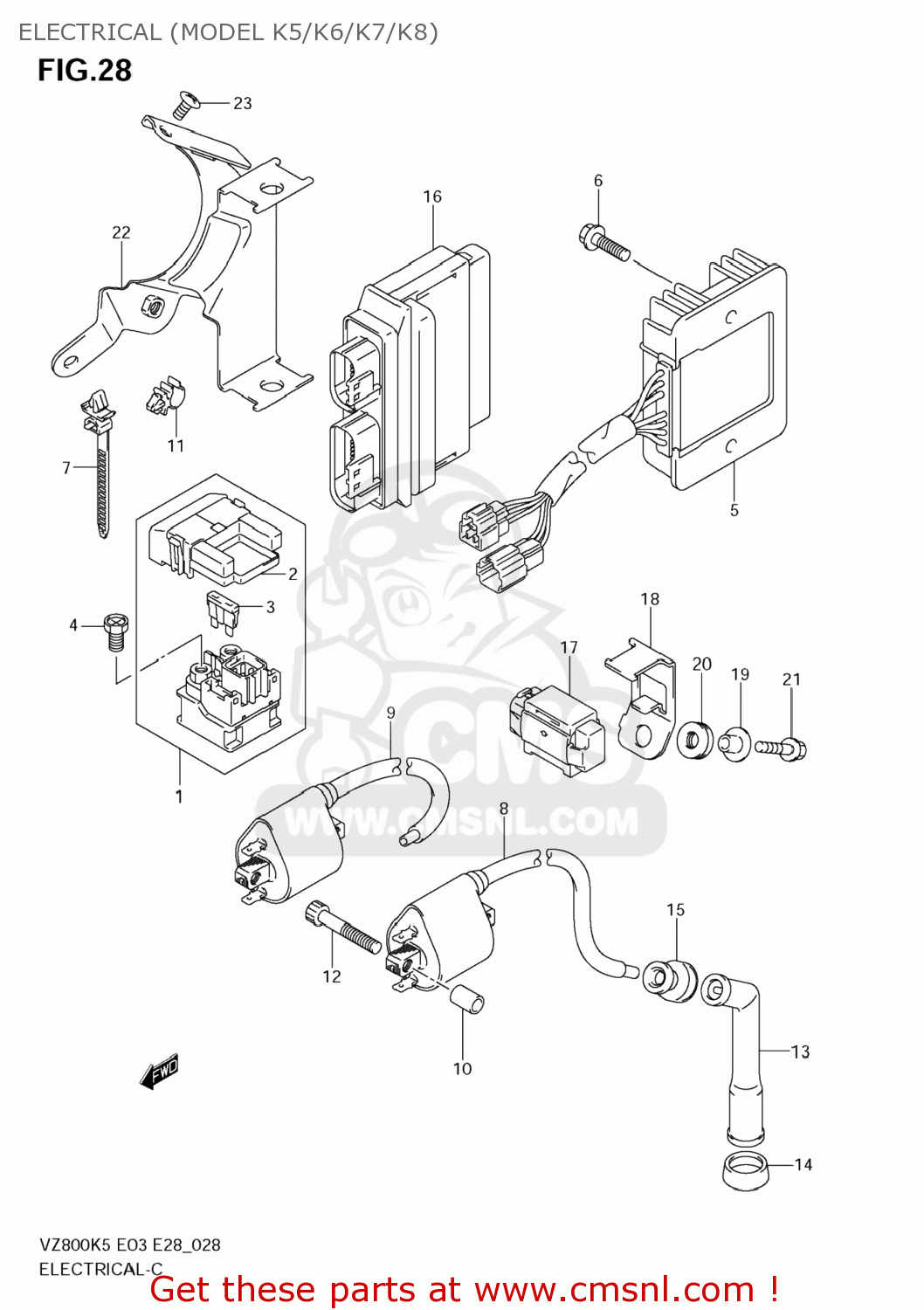

Electrical (model k5/k6/k7/k8) diagram VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

ELECTRICAL (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
ELECTRICAL (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
ELECTRICAL (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
3180021E20
€ 69.00
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280041F11
ref: 5
RECTIFIER ASSY
3280041F11
€ 268.50
6
021620620B
ref: 6
SCREW
€ 2.00
7
0940711402
ref: 7
CLAMP(L:90)
0940711402
€ 2.50
8
3341017G00
ref: 8
COIL ASSY,IGNITION
3341017G00
€ 86.50
9
3342041F10
ref: 9
COIL ASSY,IGNITION
€ 74.00
10
0918006195
ref: 10
SPACER(6.4X10X18)
0918006195
€ 3.50
11
0940307308
ref: 11
CLAMP
0940307308
€ 1.50
12
071300635B
ref: 12
BOLT
071300635B
€ 3.50
13
3351011410
ref: 13
CAP,SPARK PLUG
3351011410
€ 24.50
14
3354147D00
ref: 14
SEAL,SPARK PLUG
3354147D00
€ 7.00
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
16-1
3292039G10
ref: 16-1
CONTROL UNIT,FI
€ 0.00
16-2
3292039G20
ref: 16-2
CONTROL UNIT,FI
€ 0.00
16-3
3292039G20
ref: 16-3
CONTROL UNIT,FI
€ 0.00
17
3396006G10
ref: 17
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
18
3396141F00
ref: 18
BRACKET,FUEL CUT SENSOR
€ 4.00
19
0918006325
ref: 19
SPACER(6.2X8.4X6.9)
0918006325
€ 3.00
20
0932006017
ref: 20
CUSHION
0932006017
€ 3.00
21
015500616B
ref: 21
BOLT
015500616B
€ 2.50
22
4488041F10
ref: 22
BRACKET,FI CONTROL UNIT
€ 18.00
23
0913906108
ref: 23
SCREW(6X12)
€ 3.00
