WIRING HARNESS (MODEL K9)

VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

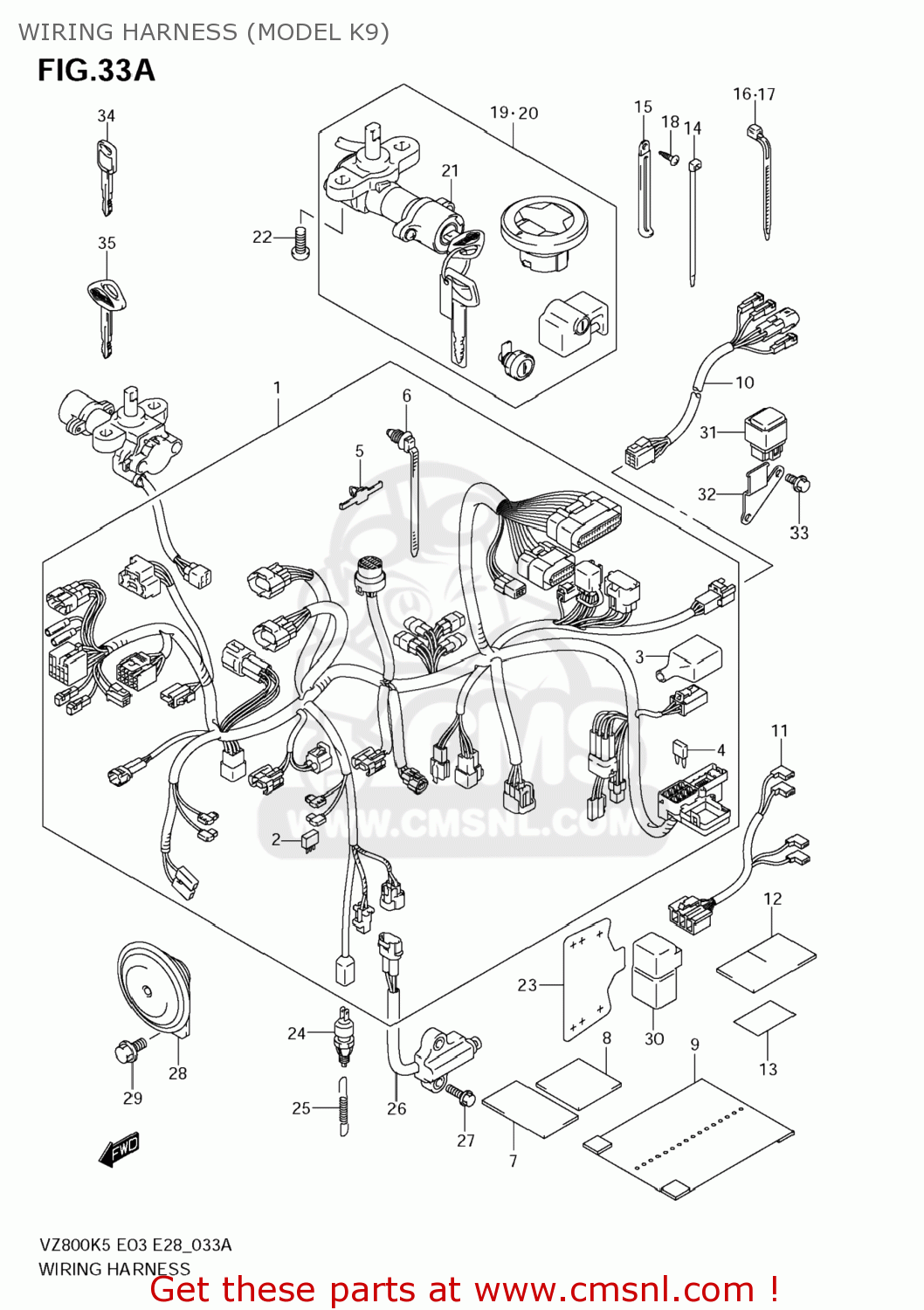

Wiring harness (model k9) diagram VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K9) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
WIRING HARNESS (MODEL K9) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
WIRING HARNESS (MODEL K9) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3661039GB0
ref: 1-1
36610-39GB1
HARNESS,WIRING
€ 708.50
1-2
3661039GC0
ref: 1-2
HARNESS,WIRING
€ 633.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3671741F00
ref: 3
BOOT
€ 8.50
4-1
0948110501
ref: 4-1
FUSE(10A)
0948110501
€ 3.00
4-2
0948115501
ref: 4-2
FUSE(15A)
0948115501
€ 1.00
5
0940705410
ref: 5
CLAMP
€ 4.00
6
0940717403
ref: 6
CLAMP(L:154)
0940717403
€ 5.50
7
3661116G00
ref: 7
TAPE,WIRING HARNESS(28X50X0.13
3661116G00
€ 2.00
8
3661141F00
ref: 8
PROTECTOR,WIRING HARNESS
€ 6.00
9
3661815D20
ref: 9
COVER,WIRING HARNESS
3661815D20
€ 12.00
10
3685839G00
ref: 10
36858-39G01
WIRE,REAR COMB
€ 82.50
11
3685439G00
ref: 11
WIRE,IGNITION COIL LEAD
€ 33.50
12
3692033C00
ref: 12
PROTECTOR,HARNESS(30X50X3)
€ 2.00
13
9447417H00
ref: 13
PROTECTOR,COWLING UNDER
€ 2.00
14
0940714407
ref: 14
CLAMP(L:145)
0940714407
€ 4.00
15-1
0940406433
ref: 15-1
CLAMP(L:80)
0940406433
€ 3.00
15-2
0940406435
ref: 15-2
CLAMP(L:135)
0940406435
€ 2.50
16
0940718402
ref: 16
CLAMP(L:165)
0940718402
€ 2.50
17
0940719401
ref: 17
CLAMP(L:190)
€ 2.00
18
035410410B
ref: 18
SCREW
035410410B
€ 1.50
19
3710141890
ref: 19
LOCK SET
€ 297.00
20
3710241810
ref: 20
LOCK SET
€ 0.00
21
3710041F70
ref: 21
LOCK ASSY,STEERING
€ 168.50
22
0913908016
ref: 22
BOLT(8X20)
0913908016
€ 3.50
23
3718741F10
ref: 23
PROTECTOR,IGNITION SWITCH
€ 12.00
24
3774024A00
ref: 24
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
25
0944306073
ref: 25
SPRING
0944306073
€ 3.00
26
3784041F00
ref: 26
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
27
0910306279
ref: 27
BOLT(6X20)
0910306279
€ 3.00
28
3850041F30
ref: 28
HORN ASSY
€ 54.50
29
015500816B
ref: 29
BOLT
015500816B
€ 3.00
30
3874024X50
ref: 30
RELAY ASSY
3874024X50
€ 37.50
31
3874024A00
ref: 31
RELAY ASSY
€ 39.00
32
3874139G00
ref: 32
BRACKET,HEADLAMP RELAY
€ 6.00
33
015500612B
ref: 33
BOLT
015500612B
€ 2.50
34
3714641F10
ref: 34
KEY,BLANK
3714641F10
€ 26.00
35
3714641FA0
ref: 35
KEY,BLANK(BOULEVARD)
€ 64.50
