WIRING HARNESS (MODEL K5/K6/K7/K8)

VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

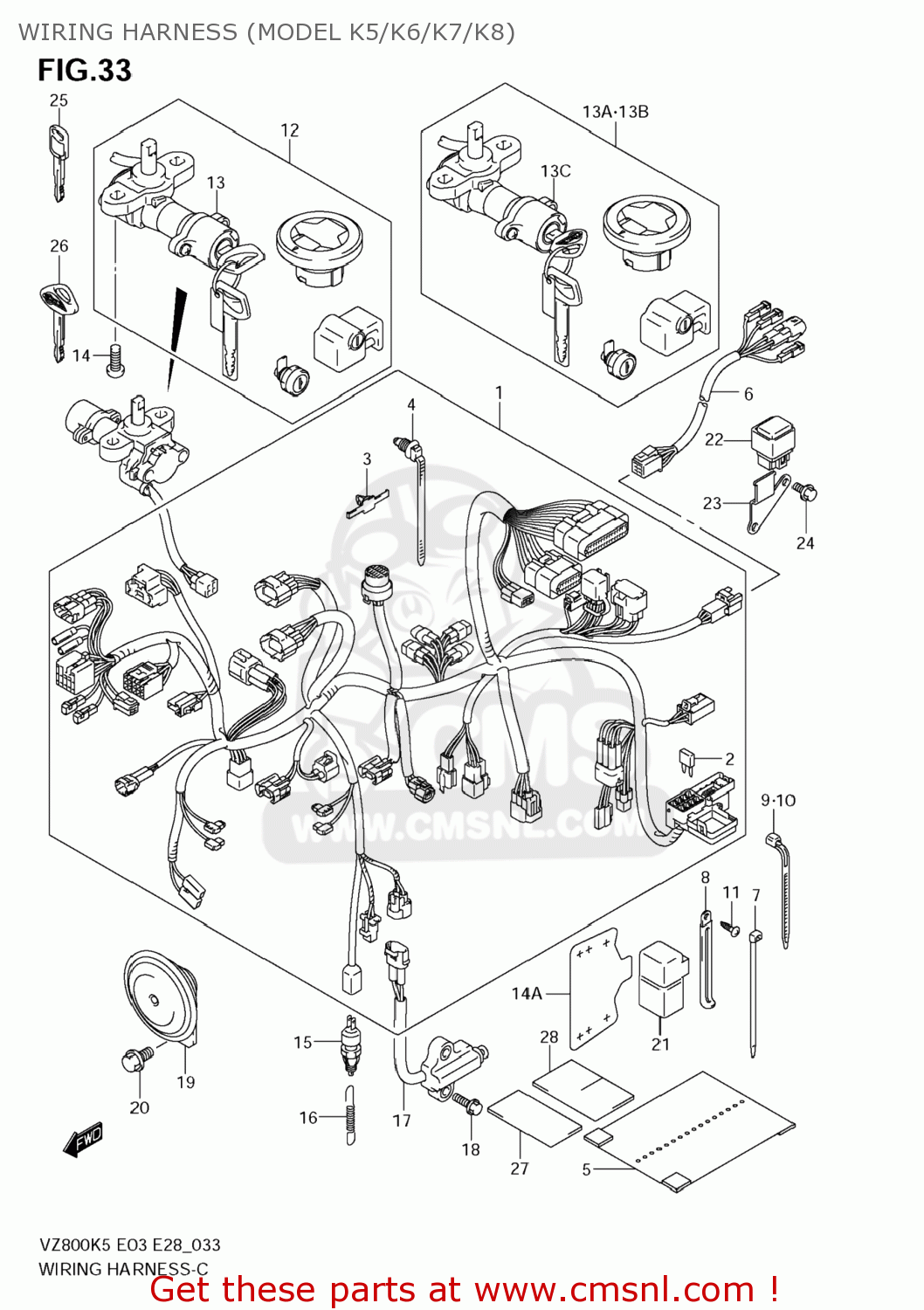

Wiring harness (model k5/k6/k7/k8) diagram VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
WIRING HARNESS (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
WIRING HARNESS (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3661039G30
ref: 1-1
HARNESS, WIRING (MODEL K5 E3,E28,E33MODEL K6 E3,E28)
€ 431.50
1-2
3661039G30
ref: 1-2
HARNESS, WIRING (MODEL K5 E3,E28,E33MODEL K6 E3,E28)
€ 431.50
1-3
3661039G40
ref: 1-3
HARNESS,WIRING
€ 452.50
1-4
3661039G80
ref: 1-4
36610-39G81
HARNESS, WIRING
€ 478.00
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
0940705410
ref: 3
CLAMP
€ 4.00
4
0940717403
ref: 4
CLAMP(L:154)
0940717403
€ 5.50
5
3661815D20
ref: 5
COVER,WIRING HARNESS
3661815D20
€ 12.00
6
3685839G00
ref: 6
36858-39G01
WIRE,REAR COMB
€ 82.50
7
0940714407
ref: 7
CLAMP(L:145)
0940714407
€ 4.00
8-1
0940406433
ref: 8-1
CLAMP(L:80)
0940406433
€ 3.00
8-2
0940406435
ref: 8-2
CLAMP(L:135)
0940406435
€ 2.50
9
0940718402
ref: 9
CLAMP(L:165)
0940718402
€ 2.50
10
0940719401
ref: 10
CLAMP(L:190)
€ 2.00
11
035410410B
ref: 11
SCREW
035410410B
€ 1.50
12-1
3710041880
ref: 12-1
LOCK SET
€ 304.50
12-2
3710041890
ref: 12-2
LOCK SET
€ 0.00
13
3710041F90
ref: 13
LOCK ASSY,STEERING
3710041F90
€ 150.00
13A
3710141890
ref: 13A
LOCK SET
€ 297.00
13B
3710241810
ref: 13B
LOCK SET
€ 0.00
13C
3710041F70
ref: 13C
LOCK ASSY,STEERING
€ 168.50
14
0913908016
ref: 14
BOLT(8X20)
0913908016
€ 3.50
14A
3718741F10
ref: 14A
PROTECTOR,IGNITION SWITCH
€ 12.00
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
16
0944306073
ref: 16
SPRING
0944306073
€ 3.00
17
3784041F00
ref: 17
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
18-1
0155006203
ref: 18-1
01550-0620A
BOLT
0155006203
€ 2.50
18-2
0910306279
ref: 18-2
BOLT(6X20)
0910306279
€ 3.00
19-1
3850041F10
ref: 19-1
HORN ASSY
3850041F10
€ 80.00
19-2
3850041F20
ref: 19-2
HORN ASSY
€ 80.00
20
015500816B
ref: 20
BOLT
015500816B
€ 3.00
21
3874024X50
ref: 21
RELAY ASSY
3874024X50
€ 37.50
22
3874024A00
ref: 22
RELAY ASSY
€ 39.00
23
3874139G00
ref: 23
BRACKET,HEADLAMP RELAY
€ 6.00
24
015500612B
ref: 24
BOLT
015500612B
€ 2.50
25
3714641F10
ref: 25
KEY,BLANK
3714641F10
€ 26.00
26
3714641FA0
ref: 26
KEY,BLANK(BOULEVARD)
€ 64.50
27
3661116G00
ref: 27
TAPE,WIRING HARNESS(28X50X0.13
3661116G00
€ 2.00
28
3692033C00
ref: 28
PROTECTOR,HARNESS(30X50X3)
€ 2.00
