FRONT MASTER CYLINDER (MODEL K5/K6)

VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

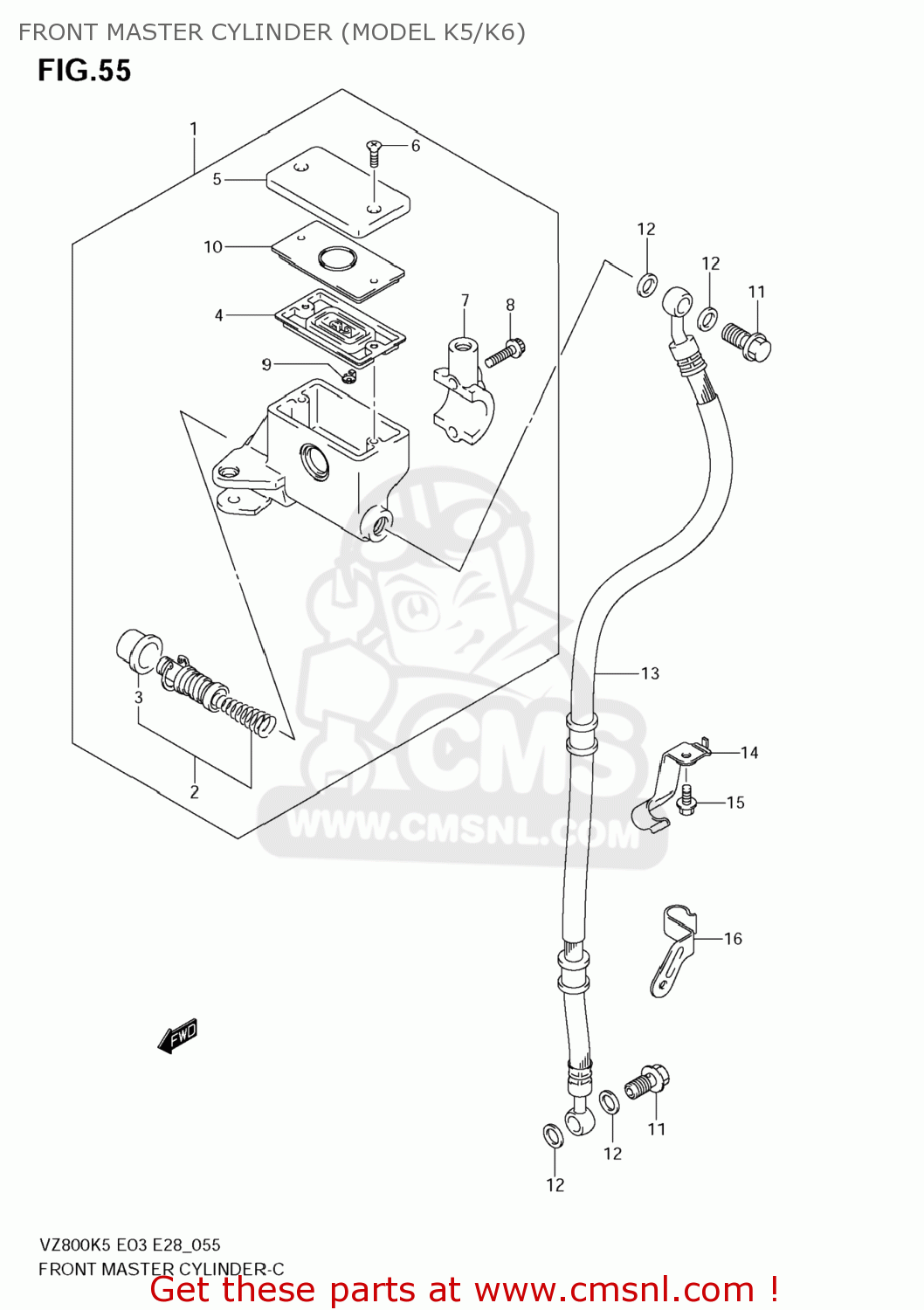

Front master cylinder (model k5/k6) diagram VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)

FRONT MASTER CYLINDER (MODEL K5/K6) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
FRONT MASTER CYLINDER (MODEL K5/K6) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
FRONT MASTER CYLINDER (MODEL K5/K6) VZ800Z BOULEVARD M50 2006 (K6) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
5960010F50
ref: 1
CYLINDER ASSY,FR MASTER
5960010F50
€ 238.00
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 37.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966910F00
ref: 5
CAP
5966910F00
€ 59.50
6
0212204127
ref: 6
SCREW
0212204127
€ 2.00
7
5967138AA0
ref: 7
HOLDER
5967138AA0
€ 51.50
8
0713006207
ref: 8
BOLT
0713006207
€ 3.50
9
5966448B00
ref: 9
PROTECTOR
5966448B00
€ 8.00
10
5966841C00
ref: 10
PLATE,DIAPHRAGM
5966841C00
€ 8.00
11
0936010062
ref: 11
BOLT UNION
0936010062
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 2.00
13
5948039G01
ref: 13
HOSE,FR BRAKE
5948039G01
€ 84.00
14
5926641F00
ref: 14
CLAMP,FR BRAKE HOSE UPR
5926641F00
€ 9.50
15
015470612B
ref: 15
BOLT
015470612B
€ 2.00
16
5926839G00
ref: 16
CLAMP,FR BRAKE HOSE
5926839G00
€ 8.50
