FRAME BRACE

VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

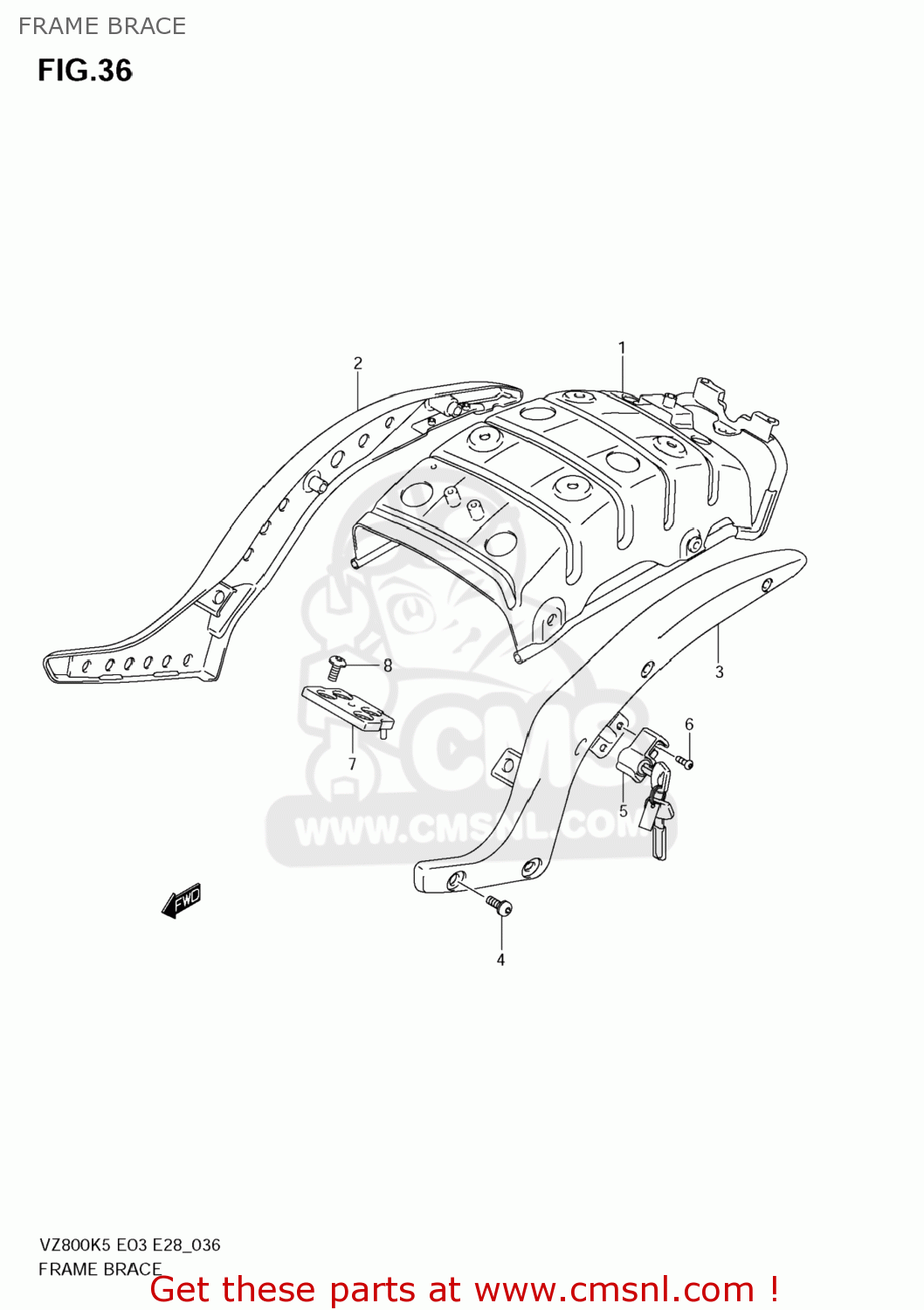

Frame brace diagram VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

FRAME BRACE VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

FRAME BRACE VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4158039G00
ref: 1

BRACE, REAR FRAME

€ 161.50

2

4161041F00
ref: 2

GRIP,FRAME HANDLE,R

€ 224.00

3

4162041F00
ref: 3

GRIP,FRAME HANDLE,L

€ 228.00

4

0913910003
ref: 4

BOLT(10X25)

€ 6.00

5

9570041821
ref: 5

LOCK SET,HELMET

€ 88.00

6

0913906089
ref: 6

SCREW(6X14)

€ 2.50

7

4131041F50
ref: 7

BRACKET,FUEL TANK

€ 74.50

8

0910608140
ref: 8

BOLT(8X16)

€ 6.00
