SPEEDOMETER (MODEL K5/K6/K7/K8)

VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

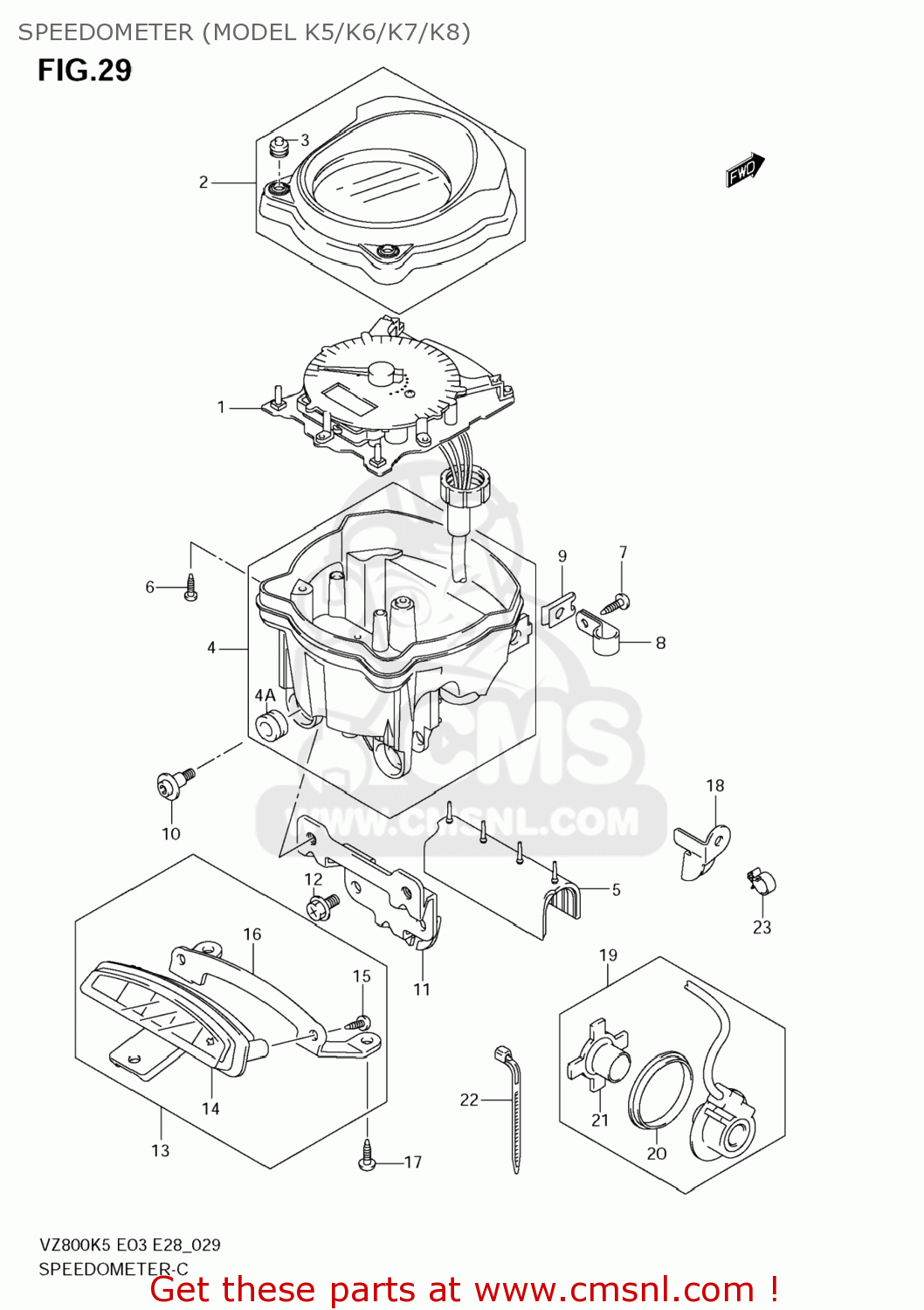

Speedometer (model k5/k6/k7/k8) diagram VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

SPEEDOMETER (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
SPEEDOMETER (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
SPEEDOMETER (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3412039G10
ref: 1-1
34120-39G11
SPEEDOMETER
€ 345.50
1-2
3412039G30
ref: 1-2
SPEEDOMETER
€ 305.50
1-3
3412039G50
ref: 1-3
SPEEDOMETER
€ 498.50
1-4
3412039G70
ref: 1-4
COMBINATION METER
€ 483.00
1-5
3412039G00
ref: 1-5
SNELHEIDSMETER
€ 438.50
1-6
3412039G20
ref: 1-6
SNELHEIDSMETER
€ 693.00
1-7
3412039G40
ref: 1-7
SPEEDOMETER
€ 420.00
1-8
3412039G60
ref: 1-8
COMBINATION METER
€ 420.00
2
3415039G00
ref: 2
CASE ASSY,UPR
3415039G00
€ 173.00
3
3412439G00
ref: 3
RUBBER,SWITCH
3412439G00
€ 7.00
4
3411139G00
ref: 4
CASE ASSY,LWR
3411139G00
€ 69.50
4A
3495533E00
ref: 4A
CUSHION,METER
3495533E00
€ 3.00
5
3418839G00
ref: 5
ATTACHMENT,RUBBER
€ 34.00
6
3438335F00
ref: 6
SCREW(3X16)
3438335F00
€ 3.00
7
035410412A
ref: 7
SCREW
035410412A
€ 2.00
8
3417619F20
ref: 8
CLAMP
3417619F20
€ 5.50
9
9448424F00
ref: 9
NUT,COWL
9448424F00
€ 4.00
10
3414918G00
ref: 10
SCREW,SPEEDOMETER
3414918G00
€ 2.00
11
3416239G00
ref: 11
BRACKET,SPEEDOMETER
3416239G00
€ 14.50
12
021620612B
ref: 12
SCREW
021620612B
€ 1.50
13-1
3638039G00
ref: 13-1
BOX ASSY,PILOT LAMP
€ 167.00
13-2
3638039G10
ref: 13-2
BOX ASSY,PILOT LAMP
€ 427.00
14-1
3638139G00
ref: 14-1
CASE,UNIT
€ 152.50
14-2
3638139G10
ref: 14-2
CASE,UNIT
€ 178.50
15
032410512A
ref: 15
SCREW
032410512A
€ 1.50
16
3638639G00
ref: 16
BRACKET,PILOT LAMP
€ 44.50
17
035110512B
ref: 17
SCREW
€ 2.00
18
3493839G00
ref: 18
GUIDE,SPEED SENSOR LEAD
3493839G00
€ 3.50
19
3499039G00
ref: 19
SENSOR,SPEED
3499039G00
€ 213.50
20
0928644001
ref: 20
SEAL,OIL(44X55X6)
0928644001
€ 10.00
21
3498327G00
ref: 21
MAGNETO
3498327G00
€ 26.00
22
0940714407
ref: 22
CLAMP(L:145)
0940714407
€ 4.00
23
0940306410
ref: 23
CLAMP
€ 2.00
