FRONT MASTER CYLINDER (MODEL K7/K8/K9)

VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

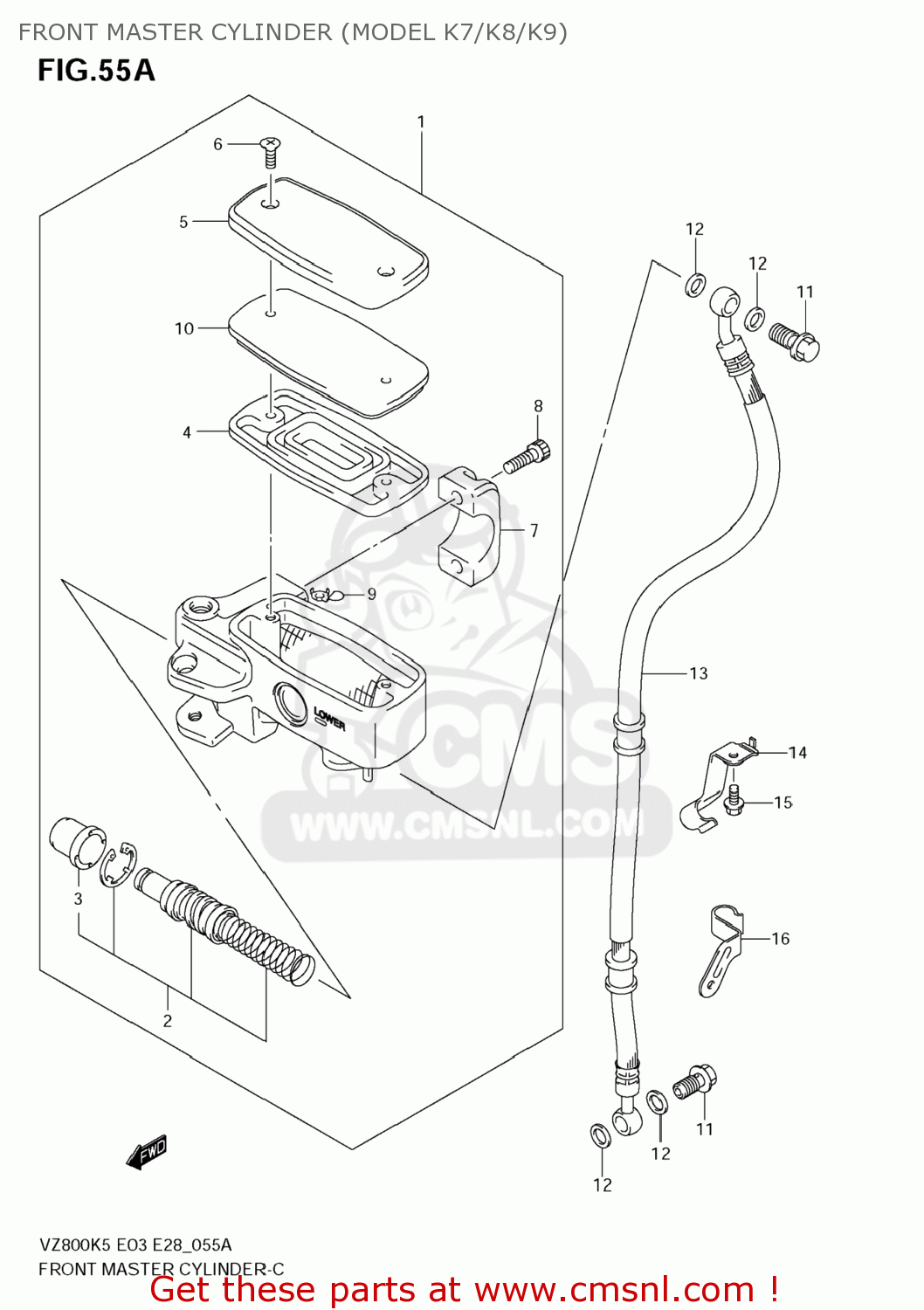

Front master cylinder (model k7/k8/k9) diagram VZ800Z BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5960010F71
ref: 1

CYLINDER ASSY,FR MASTER

€ 334.00

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966644300
ref: 3

BOOT

€ 6.00

5966710F00
ref: 4

DIAPHRAGM

€ 7.00

5966910F10
ref: 5

CAP

€ 45.50

0212204127
ref: 6

SCREW

€ 2.00

5967110F00
ref: 7

HOLDER

€ 30.50

0713006207
ref: 8

BOLT

€ 3.50

5966432F00
ref: 9

PROTECTOR

€ 7.50

5743710F00
ref: 10

PLATE,DIAPHRAGM

€ 13.00

0936010062
ref: 11

BOLT UNION

€ 5.00

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948039G10
ref: 13

HOSE,FR BRAKE

€ 76.00

5926641F00
ref: 14

CLAMP,FR BRAKE HOSE UPR

€ 9.50

015470612B
ref: 15

BOLT

€ 2.00

5926839G00
ref: 16

CLAMP,FR BRAKE HOSE

€ 8.50
