FRAME (MODEL K5/K6/K7/K8)

VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

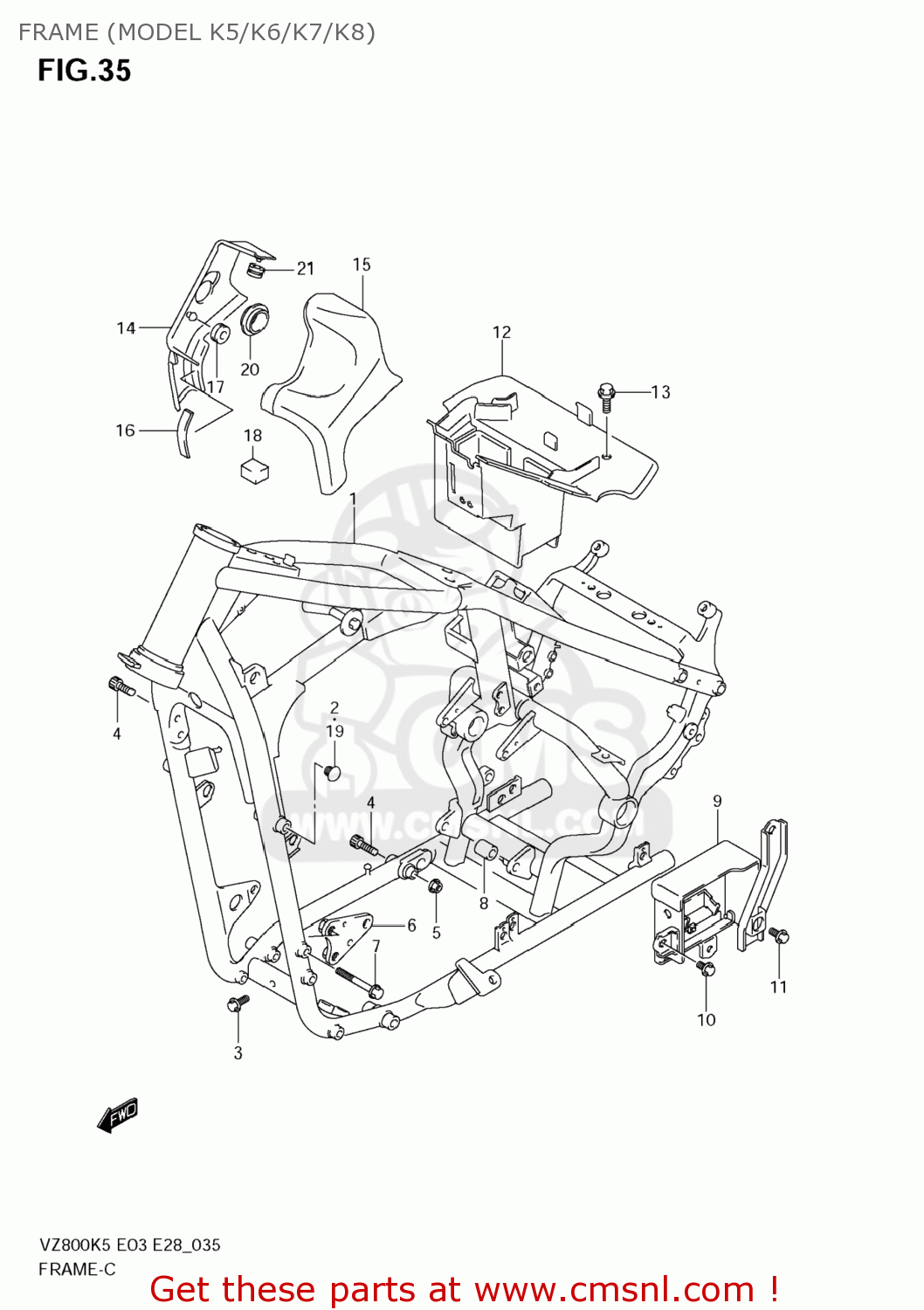

Frame (model k5/k6/k7/k8) diagram VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

FRAME (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
FRAME (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
FRAME (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
4110039G00019
ref: 1-1
41100-39G01-019
FRAME (BLACK)
€ 1,434.50
1-2
4110039G01019
ref: 1-2
FRAME(BLACK)
€ 1,434.50
2
0925009001
ref: 2
CAP(OD:14)
0925009001
€ 1.00
3-1
0155008163
ref: 3-1
01550-0816A
BOLT
0155008163
€ 3.00
3-2
015500816B
ref: 3-2
BOLT
015500816B
€ 3.00
4-1
0713010353
ref: 4-1
07130-1035B
BOLT
0713010353
€ 3.50
4-2
071301035B
ref: 4-2
BOLT
071301035B
€ 3.50
5
0831931103
ref: 5
08319-3110A
NUT
0831931103
€ 3.00
6
4192041F00
ref: 6
PLATE,ENGINE MOUNT NO.1,L
€ 16.50
7
0911208013
ref: 7
BOLT(8X65)
0911208013
€ 3.50
8
4194141F00
ref: 8
SPACER,ENG MTG LR
€ 8.00
9
4154041F10
ref: 9
HOLDER COMP,EL
€ 42.00
10-1
0155006123
ref: 10-1
01550-0612A
BOLT
0155006123
€ 2.50
10-2
015500612B
ref: 10-2
BOLT
015500612B
€ 2.50
11-1
0155008163
ref: 11-1
01550-0816A
BOLT
0155008163
€ 3.00
11-2
015500816B
ref: 11-2
BOLT
015500816B
€ 3.00
12
4741041F01
ref: 12
HOLDER,ELECTRI
€ 57.00
13
0911306001
ref: 13
BOLT(6X16)
0911306001
€ 3.00
14
4735141F00019
ref: 14
47351-41F01-019
COVER,FRAME HEAD,R(BLACK)
€ 49.00
15
4736141F00019
ref: 15
47361-41F02-019
COVER,FRAME HE
€ 49.00
16
5314540A00
ref: 16
CUSHION,FR FENDER
5314540A00
€ 1.50
17
0932008018
ref: 17
CUSHION
0932008018
€ 4.00
18
1779839G00
ref: 18
CUSHION,RADIATOR COVER INNER
1779839G00
€ 5.50
19
0925009001
ref: 19
CAP(OD:14)
0925009001
€ 1.00
20
4735541F00
ref: 20
47355-41F01
CAP
€ 3.00
21
0932009501
ref: 21
CUSHION
0932009501
€ 2.00
