SPEEDOMETER (MODEL K9)

VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

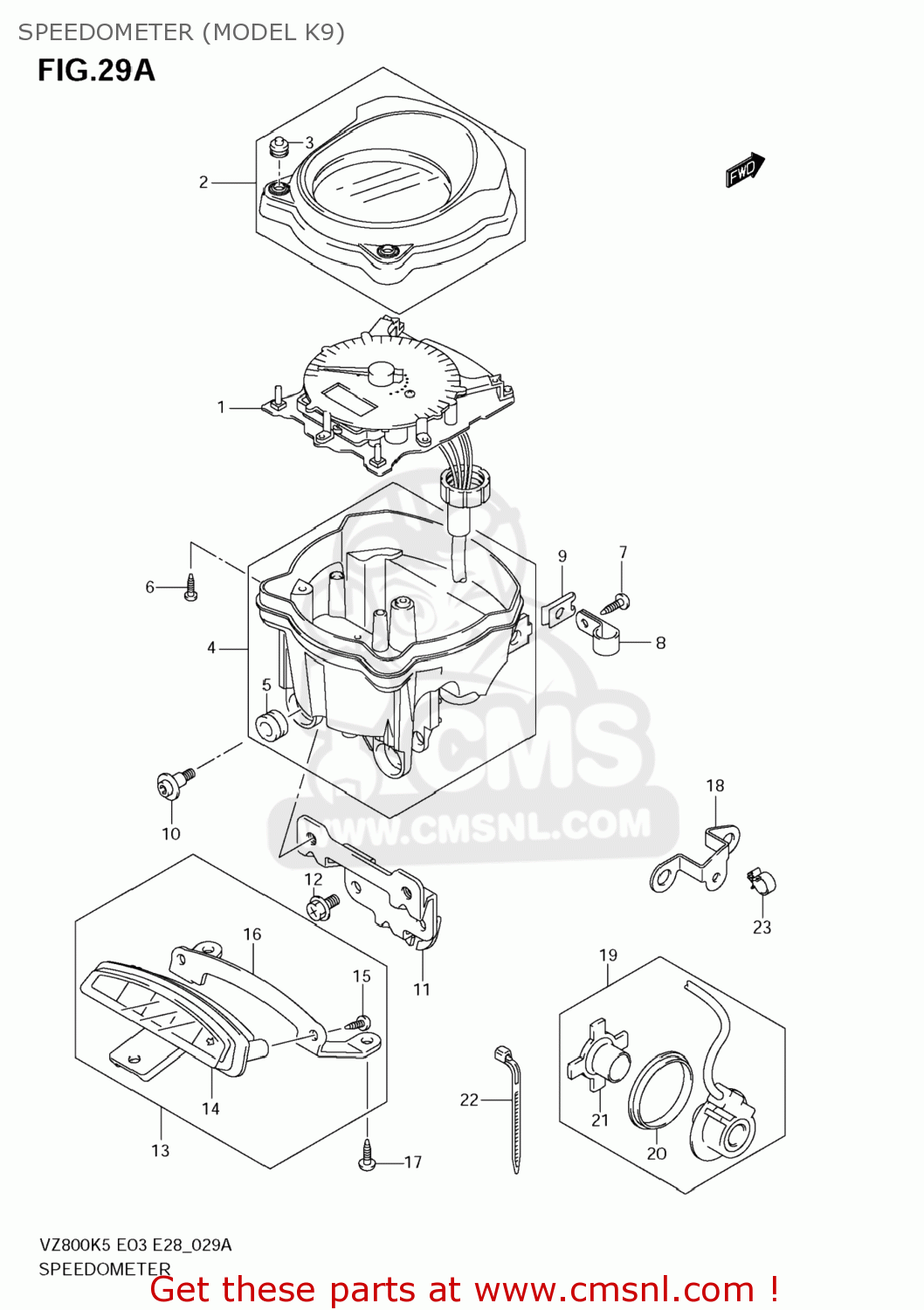

Speedometer (model k9) diagram VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (MODEL K9) VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (MODEL K9) VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

3412039G90
ref: 1-1

COMBINATION METER

€ 345.50

1-2

3412039GB0
ref: 1-2

COMBINATION METER

€ 345.50

1-3

3412039G80
ref: 1-3

SNELHEIDSMETER

€ 395.50

1-4

3412039GA0
ref: 1-4

SNELHEIDSMETER

€ 463.50

2

3415039G00
ref: 2

CASE ASSY,UPR

€ 173.00

3

3412439G00
ref: 3

RUBBER,SWITCH

€ 7.00

4

3411139G00
ref: 4

CASE ASSY,LWR

€ 69.50

5

3495533E00
ref: 5

CUSHION,METER

€ 3.00

6

3438335F00
ref: 6

SCREW(3X16)

€ 3.00

7

035410412A
ref: 7

SCREW

€ 2.00

8

3417619F20
ref: 8

CLAMP

€ 5.50

9

9448424F00
ref: 9

NUT,COWL

€ 4.00

10

3414918G00
ref: 10

SCREW,SPEEDOMETER

€ 2.00

11

3416239G00
ref: 11

BRACKET,SPEEDOMETER

€ 14.50

12

021620612B
ref: 12

SCREW

€ 1.50

13

3638039G10
ref: 13

BOX ASSY,PILOT LAMP

€ 427.00

14

3638139G10
ref: 14

CASE,UNIT

€ 178.50

15

032410512A
ref: 15

SCREW

€ 1.50

16

3638639G00
ref: 16

BRACKET,PILOT LAMP

€ 44.50

17

035110512B
ref: 17

SCREW

€ 2.00

18

3493839G10
ref: 18

GUIDE,SPEED SENSOR LEAD

€ 7.00

19

3499039G00
ref: 19

SENSOR,SPEED

€ 213.50

20

0928644001
ref: 20

SEAL,OIL(44X55X6)

€ 10.00

21

3498327G00
ref: 21

MAGNETO

€ 26.00

22

0940714407
ref: 22

CLAMP(L:145)

€ 4.00

23

0940306410
ref: 23

CLAMP

€ 2.00
