SECONDARY DRIVE GEAR

VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

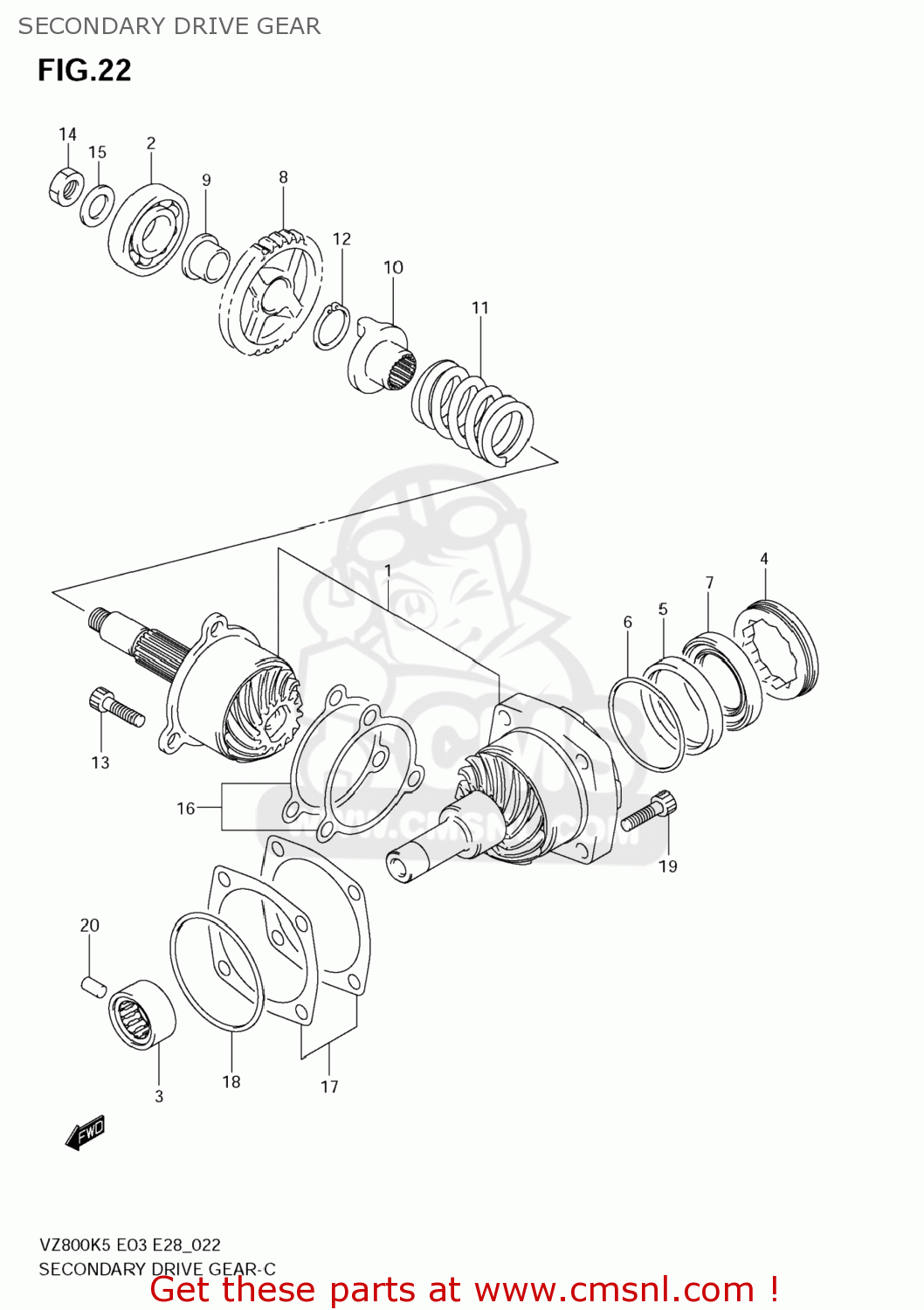

Secondary drive gear diagram VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

SECONDARY DRIVE GEAR VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

SECONDARY DRIVE GEAR VZ800Z BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

2490041810
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,160.50

2

0926220073
ref: 2

BEARING(20X52X15)

€ 19.00

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

2494238A50
ref: 4

STOPPER,SEC DRIVEN BEARING

€ 34.50

5

2494338A50
ref: 5

HOUSING,OIL SEAL

€ 54.50

6

0928060003
ref: 6

O RING(D:1.2,ID:59.6)

€ 2.00

7

0928338016
ref: 7

SEAL,OIL(38X54X8.5)

€ 12.00

8

2463138A00
ref: 8

GEAR,REDUCTION DRIVEN(NT:30)

€ 95.50

9

2463238A00
ref: 9

BUSH,REDUCTION DRIVEN GEAR

€ 13.00

10

2492238A00
ref: 10

DOG,OUTPUT CAM

€ 42.00

11

0944044002
ref: 11

SPRING

€ 15.50

12

083313121A
ref: 12

CIRCLIP

€ 2.00

13

0910608097
ref: 13

BOLT(8X25)

€ 2.50

14

0914016001
ref: 14

NUT

€ 4.50

15

0916016029
ref: 15

WASHER(16X29X4)

€ 6.00

16

2493538810
ref: 16

SHIM SET,SEC DRIVE GEAR

€ 17.00

16

2493538810
ref: 16

SHIM SET,SEC DRIVE GEAR

€ 17.00

17

2494505810
ref: 17

SHIM SET,SEC DRIVEN HOUSING

€ 20.00

17

2494505810
ref: 17

SHIM SET,SEC DRIVEN HOUSING

€ 20.00

18

0928067004
ref: 18

O RING(D:2.1,ID:66.2)

€ 2.50

19

0910608097
ref: 19

BOLT(8X25)

€ 2.50

20

0422107129
ref: 20

PIN

€ 1.50
