Buy Suzuki VZR Parts Online


FRONT DAMPER (VZR1800ZK7/K8/NK8/ZK8/K9/NK9/ZK9)

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

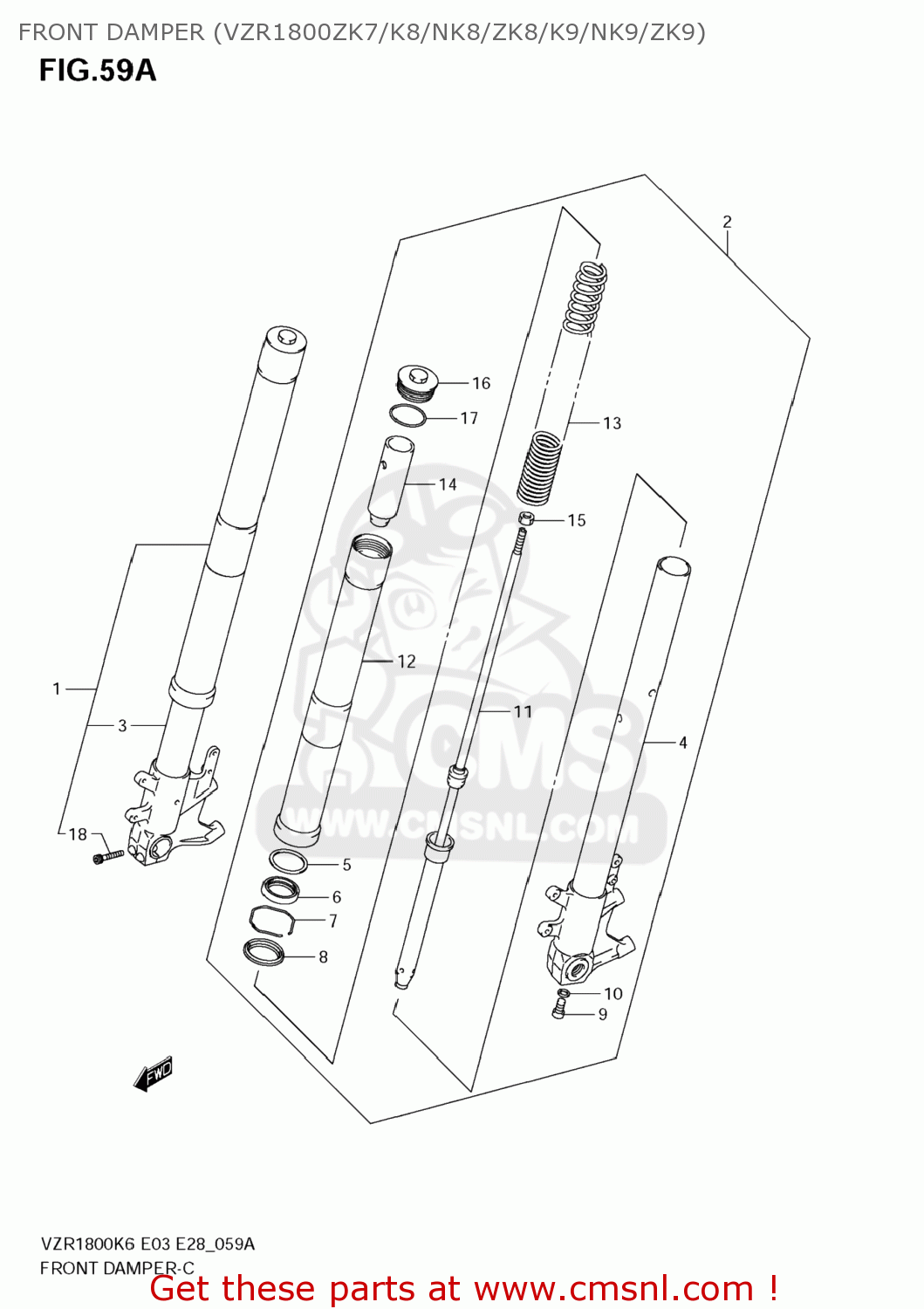

Front damper (vzr1800zk7/k8/nk8/zk8/k9/nk9/zk9) diagram VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

FRONT DAMPER (VZR1800ZK7/K8/NK8/ZK8/K9/NK9/ZK9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
FRONT DAMPER (VZR1800ZK7/K8/NK8/ZK8/K9/NK9/ZK9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
FRONT DAMPER (VZR1800ZK7/K8/NK8/ZK8/K9/NK9/ZK9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110348G10
ref: 1
DAMPER ASSY,FR FORK,R
5110348G10
€ 1,054.50
2
5110448G10
ref: 2
DAMPER ASSY,FR FORK,L
€ 1,054.50
3
5111048G00
ref: 3
TUBE,INNER,R
5111048G00
€ 966.50
4
5112048G00
ref: 4
TUBE,INNER,L
5112048G00
€ 958.50
5
5115827C00
ref: 5
WASHER
5115827C00
€ 4.00
6
5115348G00
ref: 6
SEAL,OIL
5115348G00
€ 16.50
7
5115627C00
ref: 7
RING,STOPPER
5115627C00
€ 3.00
8
5117342F00
ref: 8
SEAL,DUST
5117342F00
€ 21.00
9
5114740300
ref: 9
BOLT,CYLINDER
5114740300
€ 5.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
11
5114648G10
ref: 11
CYLINDER
€ 291.00
12
5113048G00
ref: 12
TUBE,OUTER
€ 505.50
13
5117148G10
ref: 13
SPRING,FR
€ 125.00
14
5117648G10
ref: 14
SPACER,SPRING
€ 14.00
15
5135213A60
ref: 15
NUT,ROD
5135213A60
€ 1.50
16
5135148G10
ref: 16
CAP
€ 55.00
17
5111748G00
ref: 17
O RING
5111748G00
€ 2.00
18
5138148E10
ref: 18
BOLT,LWR
5138148E10
€ 6.00
