FUEL TANK UPPER COVER

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

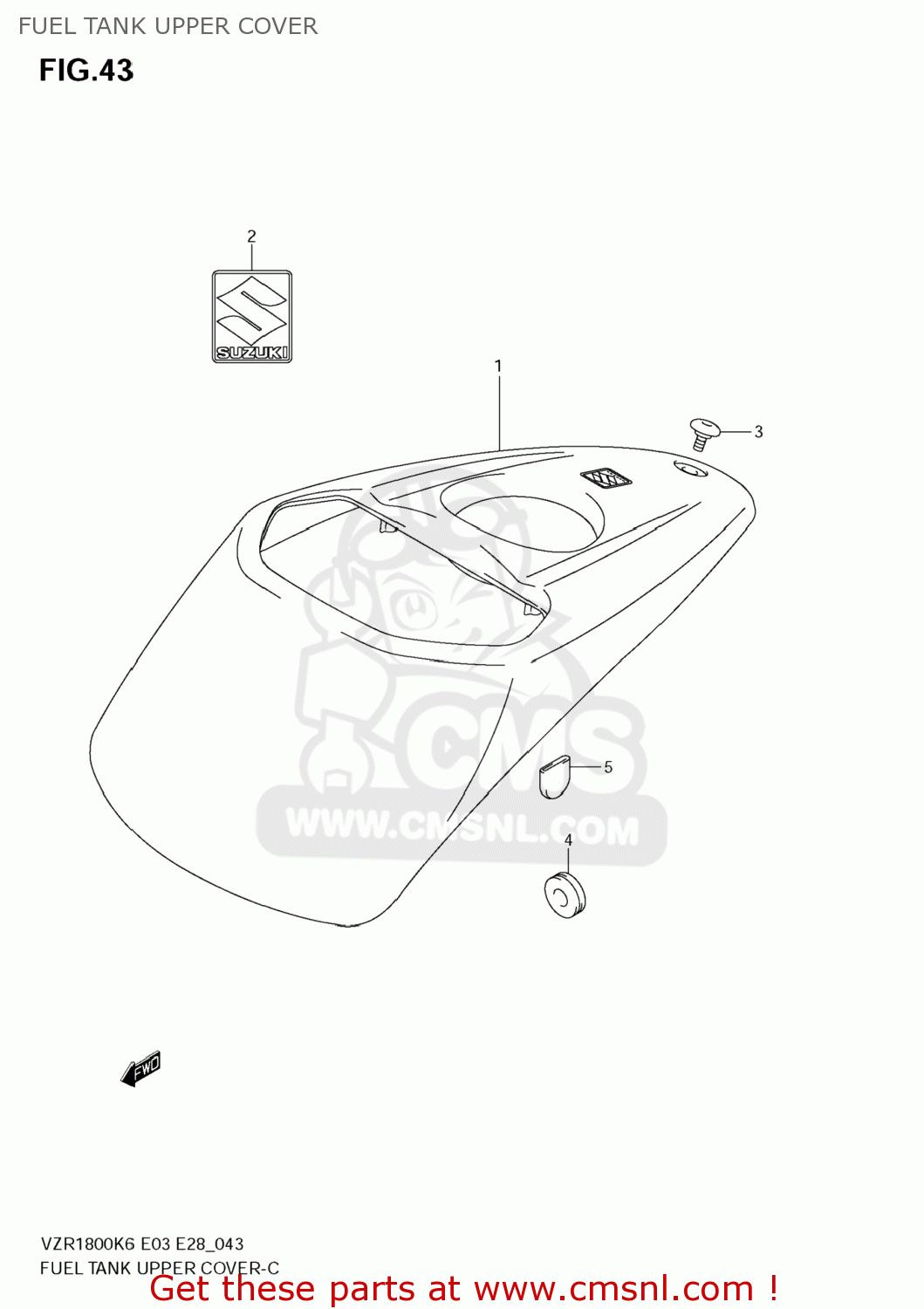

Fuel tank upper cover diagram VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

FUEL TANK UPPER COVER VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

FUEL TANK UPPER COVER VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4429048G00
ref: 1

COVER,FUEL TANK UPR

€ 158.50

2

6828135F00
ref: 2

EMBLEM,S

€ 13.00

3

0913906152
ref: 3

SCREW(6X12)

€ 4.50

4

0932008013
ref: 4

CUSHION

€ 4.00

5

4429448G00
ref: 5

CUSHION

€ 4.00
