PROPELLER SHAFT/FINAL DRIVE GEAR (MODEL K6/K7)

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

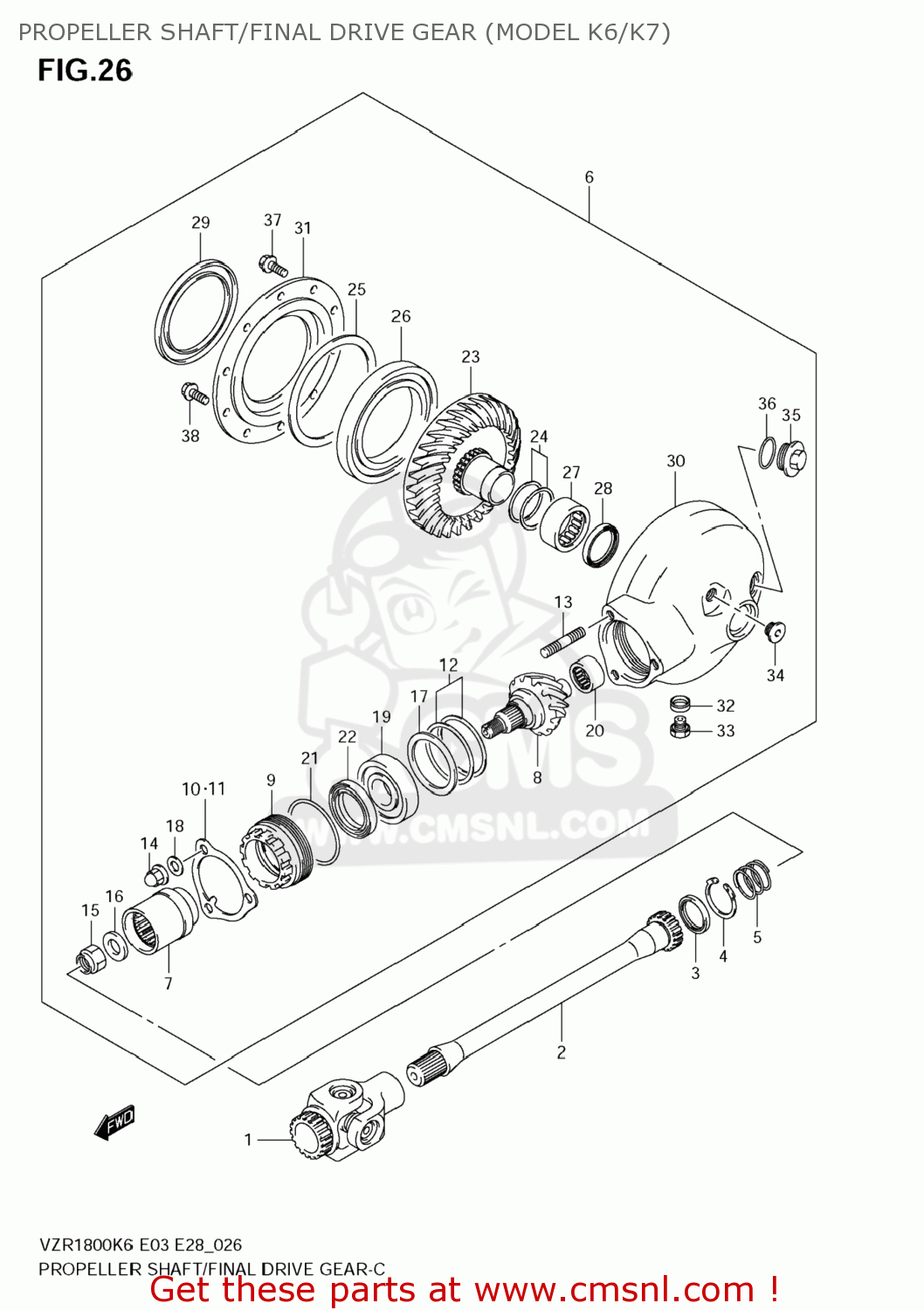

Propeller shaft/final drive gear (model k6/k7) diagram VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

PROPELLER SHAFT/FINAL DRIVE GEAR (MODEL K6/K7) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

PROPELLER SHAFT/FINAL DRIVE GEAR (MODEL K6/K7) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2710048G20
ref: 1

YOKE,UNIVERSAL JOINT

€ 245.50

2

2715148G10
ref: 2

SHAFT,PROPELLE

€ 165.50

3

0928330026
ref: 3

SEAL,OIL(30X40.5X5.5)

€ 9.00

4

0938140003
ref: 4

CIRCLIP

€ 5.00

5

0944030008
ref: 5

SPRING

€ 2.50

6

2730048811
ref: 6

GEAR & CASE SET,FINAL BEVEL

€ 2,908.00

7

2717224A00
ref: 7

COUPLING,FINAL DRIVE GEAR

€ 35.50

8

2731124A03
ref: 8

GEAR,FINAL DRIVE BEVEL

€ 198.00

9

2731224A02
ref: 9

STOPPER,FINAL DRIVE BEARING

€ 38.50

10

2731338B00
ref: 10

PLATE,BEARING STOPPER

€ 4.00

11

2731338B10
ref: 11

PLATE,BEARING STOPPER

€ 4.00

12

2744524810
ref: 12

SHIM SET,FINAL DRIVE GEAR

€ 14.50

12

2744524810
ref: 12

SHIM SET,FINAL DRIVE GEAR

€ 14.50

13

0910810106
ref: 13

BOLT,STUD

€ 3.50

14

0915910026
ref: 14

NUT

€ 6.00

15

0915916003
ref: 15

NUT

€ 3.50

16

0916016029
ref: 16

WASHER(16X29X4)

€ 6.00

17

0916054001
ref: 17

WASHER(54X68X1.5)

€ 6.50

18

0916410008
ref: 18

WASHER

€ 1.50

19

0926228023
ref: 19

BEARING(28X68X18)

€ 71.00

20

0926320062
ref: 20

BEARING(20X34X18)

€ 26.50

21

0928064003
ref: 21

O RING(D:3.1,ID:63.9)

€ 5.00

22

0928347002
ref: 22

SEAL,OIL

€ 11.00

23

2732048G00
ref: 23

GEAR,FINAL DRIVEN BEVEL

€ 409.00

24

2732648811
ref: 24

SHIM SET,FINAL DRIVEN GEAR,R

€ 53.00

24

2732648811
ref: 24

SHIM SET,FINAL DRIVEN GEAR,R

€ 53.00

24

2732648811
ref: 24

SHIM SET,FINAL DRIVEN GEAR,R

€ 53.00

25

2732738810
ref: 25

SHIM SET,FINAL DRIVEN GEAR

€ 62.00

26

0926285001
ref: 26

BEARING(85X130X14)

€ 108.00

27

0926340016
ref: 27

BEARING(40X50X20)

€ 33.00

28

0928338026
ref: 28

SEAL,OIL(38X46X6)

€ 12.50

29

0928985001
ref: 29

SEAL,OIL(85X110X11)

€ 31.00

30

2745048G00
ref: 30

CASE,FINAL GEAR

€ 994.50

31

2746138B00
ref: 31

CASE,FINAL GEAR BEARING

€ 156.00

32

0916814002
ref: 32
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

33

0924714002
ref: 33

PLUG(MAGNETO)

€ 5.00

34

0924816012A05
ref: 34

PLUG. OIL GALLE

€ 4.50

35

0925930007
ref: 35

PLUG,30X9

€ 14.50

36

0928026006
ref: 36

O RING(D:3.1,ID:26.4)

€ 3.00

37

015500825A
ref: 37

BOLT

€ 2.50

38

015501025A
ref: 38

BOLT

€ 2.00
