FRONT MASTER CYLINDER

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

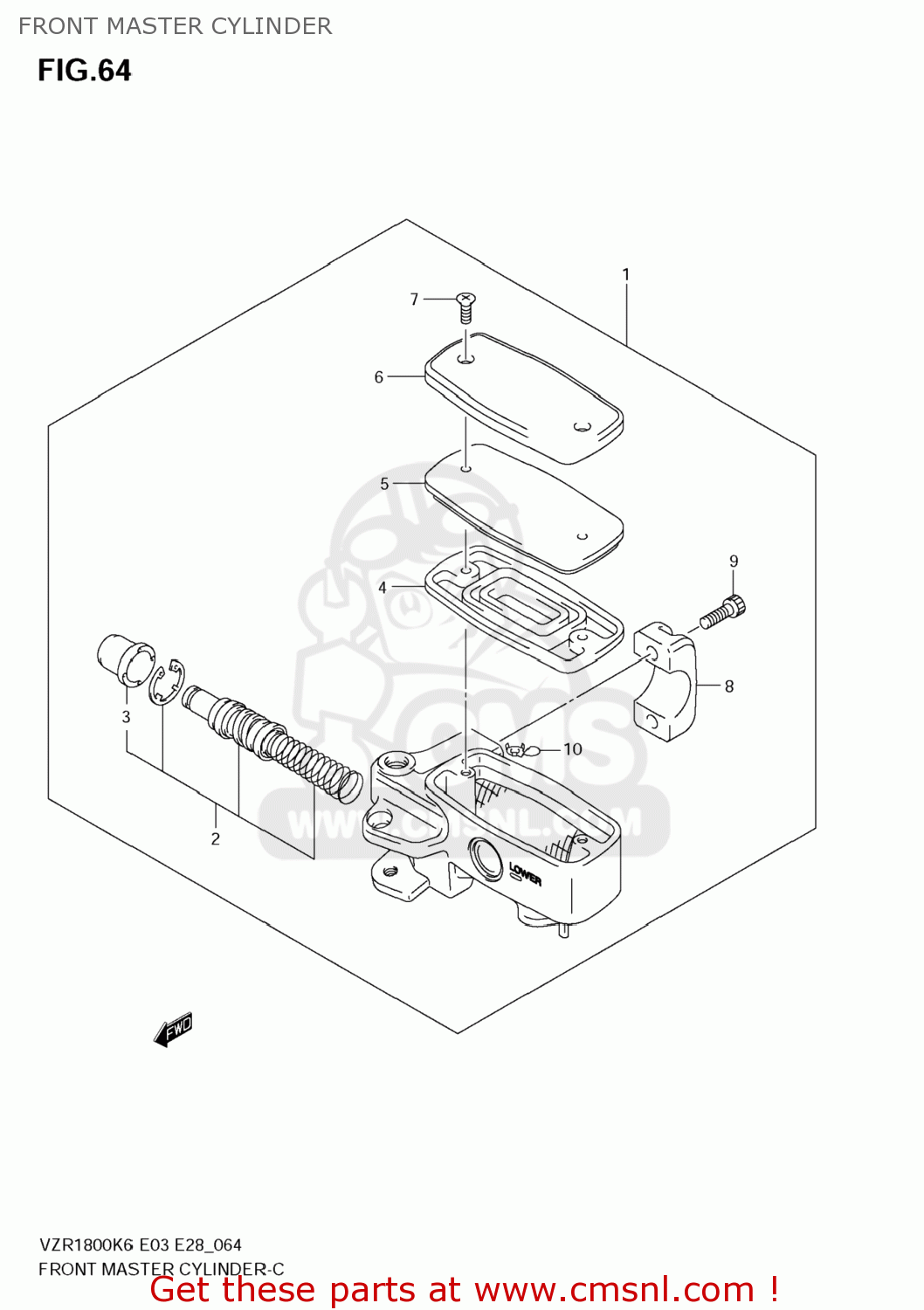

Front master cylinder diagram VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5960010F61
ref: 1-1

CYLINDER ASSY,FR MASTER

€ 338.50

1-1

5960010F61
ref: 1-1

CYLINDER ASSY,FR MASTER

€ 338.50

1-2

5960010FB1
ref: 1-2

CYLINDER ASSY,FR MASTER

€ 337.50

5960145810
ref: 2

PISTON/CUP SET

€ 34.00

5966644300
ref: 3

BOOT

€ 6.00

5966710F00
ref: 4

DIAPHRAGM

€ 7.00

5743710F00
ref: 5

PLATE,DIAPHRAGM

€ 13.00

5966910F10
ref: 6

CAP

€ 45.50

0212204127
ref: 7

SCREW

€ 2.00

5967110F00
ref: 8

HOLDER

€ 30.50

0713006207
ref: 9

BOLT

€ 3.50

5966432F00
ref: 10

PROTECTOR

€ 7.50
