Buy Suzuki VZR Parts Online


AIR CLEANER

VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

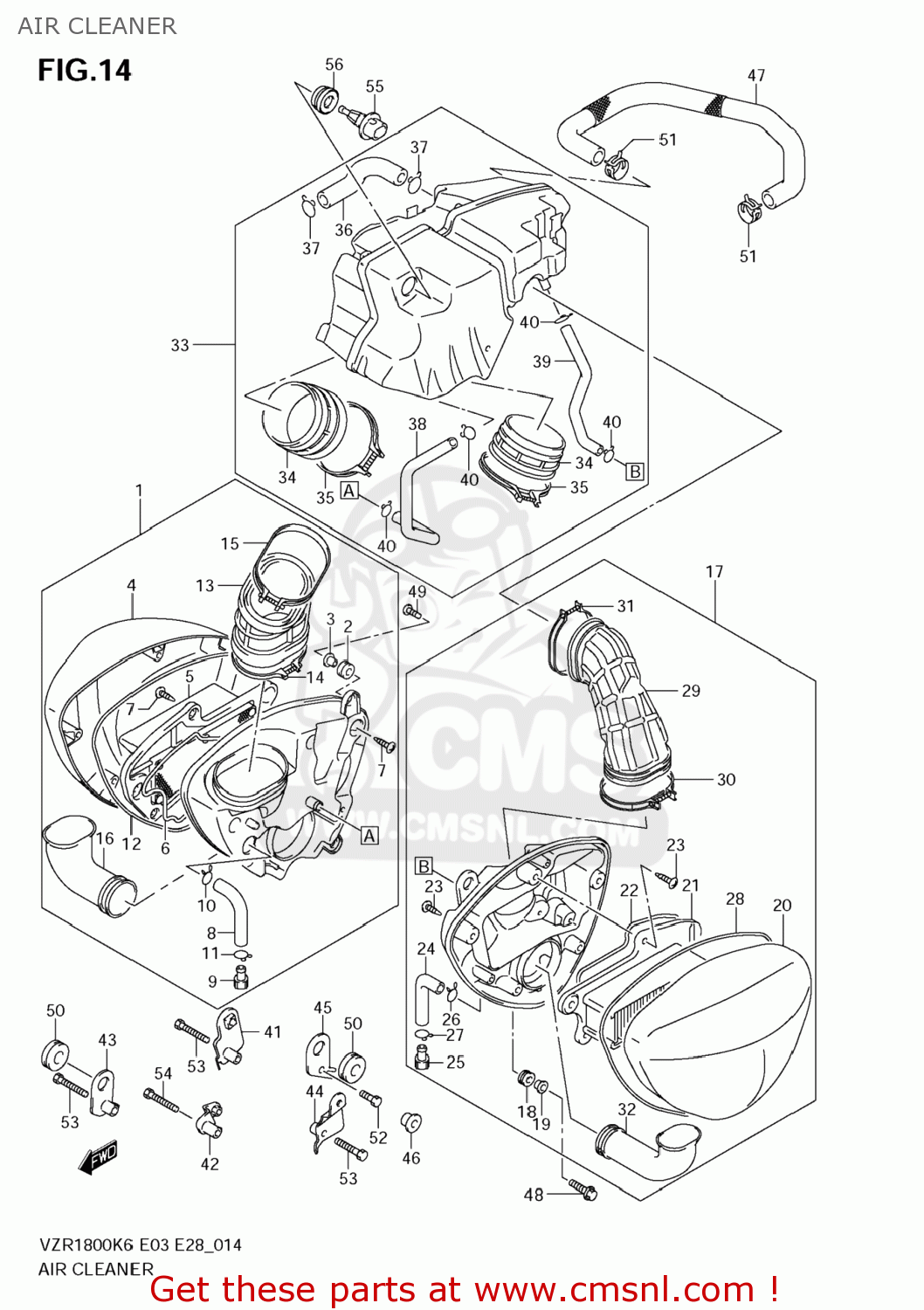

Air cleaner diagram VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

AIR CLEANER VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)
AIR CLEANER VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)
AIR CLEANER VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
1370148G01
ref: 1-1
CLEANER,AIR,R
€ 413.00
1-2
1370148G20
ref: 1-2
CLEANER,AIR,R
€ 308.00
2
0932009016
ref: 2
CUSHION
0932009016
€ 2.50
3
1381229C50
ref: 3
COLLAR,CLEANER CASE
1381229C50
€ 1.50
4
1374148G00
ref: 4
CAP,AIR CLEANER
1374148G00
€ 174.50
5-1
1378048G00
ref: 5-1
FILTER,AIR CLEANER
1378048G00
€ 45.50
5-2
1378048G20
ref: 5-2
FILTER,AIR CLEANER
1378048G20
€ 45.50
6
1374748G00
ref: 6
GASKET,FILTER (NAS)
1374748G00
€ 9.00
7
032120516B
ref: 7
SCREW
032120516B
€ 7.50
8
1387348G00
ref: 8
TUBE
€ 11.50
9
1387700190
ref: 9
PLUG
1387700190
€ 3.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
0940115101
ref: 11
CLIP
0940115101
€ 2.00
12
1374648G00
ref: 12
GASKET,CASE (NAS)
1374648G00
€ 11.50
13
1373948G00
ref: 13
TUBE,JOINT,R
1373948G00
€ 51.00
14
1382648G00
ref: 14
CLAMP
1382648G00
€ 13.50
15
1382748G00
ref: 15
CLAMP
€ 15.00
16
1389148G20
ref: 16
TUBE,INLET
1389148G20
€ 29.50
17-1
1370248G01
ref: 17-1
CLEANER,AIR,L
€ 375.50
17-2
1370248G20
ref: 17-2
CLEANER,AIR,L
€ 310.50
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
1381229C50
ref: 19
COLLAR,CLEANER CASE
1381229C50
€ 1.50
20
1374148G00
ref: 20
CAP,AIR CLEANER
1374148G00
€ 174.50
21-1
1378048G00
ref: 21-1
FILTER,AIR CLEANER
1378048G00
€ 45.50
21-2
1378048G20
ref: 21-2
FILTER,AIR CLEANER
1378048G20
€ 45.50
22
1374748G00
ref: 22
GASKET,FILTER (NAS)
1374748G00
€ 9.00
23
032120516B
ref: 23
SCREW
032120516B
€ 7.50
24
1387348G00
ref: 24
TUBE
€ 11.50
25
1387700190
ref: 25
PLUG
1387700190
€ 3.50
26
0940114301
ref: 26
CLIP
0940114301
€ 2.00
27
0940115101
ref: 27
CLIP
0940115101
€ 2.00
28
1374648G00
ref: 28
GASKET,CASE (NAS)
1374648G00
€ 11.50
29
1373948G10
ref: 29
TUBE,JOINT,L
€ 54.50
30
1382648G00
ref: 30
CLAMP
1382648G00
€ 13.50
31
1382748G00
ref: 31
CLAMP
€ 15.00
32
1389148G20
ref: 32
TUBE,INLET
1389148G20
€ 29.50
33-1
1371048G11
ref: 33-1
CHAMBER,AIR CLEANER
€ 130.50
33-2
1371048G30
ref: 33-2
CHAMBER,AIR CLEANER
€ 140.50
34
1388148G00
ref: 34
TUBE,OUTLET
1388148G00
€ 18.00
35
0940272203
ref: 35
CLAMP
0940272203
€ 7.50
36
1386548G00
ref: 36
HOSE
€ 15.00
37
0940115101
ref: 37
CLIP
0940115101
€ 2.00
38
1387148G00
ref: 38
TUBE,DRAIN
€ 12.50
39
1387148G10
ref: 39
TUBE,DRAIN
€ 12.50
40
0940113409
ref: 40
CLIP
0940113409
€ 2.50
41
1376048G00
ref: 41
BRACKET,AIR CLEANER NO.1
1376048G00
€ 22.50
42
1376048G10
ref: 42
BRACKET,AIR CLEANER NO.2
1376048G10
€ 15.50
43
1376048G20
ref: 43
BRACKET,AIR CLEANER NO.3
1376048G20
€ 10.50
44
1377048G00
ref: 44
BRACKET,AIR CLEANER NO.4
1377048G00
€ 18.50
45
1377048G10
ref: 45
BRACKET,AIR CLEANER NO.5
1377048G10
€ 3.50
46
1383848G10
ref: 46
SPACER,AIR CLEANER,L
1383848G10
€ 5.50
47
1385048G00
ref: 47
TUBE,BREATHER
€ 65.50
48
0913906154
ref: 48
BOLT(6X35)
0913906154
€ 3.00
49
0913906155
ref: 49
BOLT(6X20)
0913906155
€ 2.50
50
0932008028
ref: 50
CUSHION
0932008028
€ 2.50
51
0940120405
ref: 51
CLIP
0940120405
€ 3.00
52
015000612A
ref: 52
BOLT
015000612A
€ 2.00
53
015000625A
ref: 53
BOLT
015000625A
€ 2.50
54
0913906154
ref: 54
BOLT(6X35)
0913906154
€ 3.00
55
1365052G00
ref: 55
SENSOR,INLET AIR TEMP
1365052G00
€ 59.50
56
1365577E00
ref: 56
GROMMET,AIR TEMP SENSOR
€ 2.00
