SECONDARY DRIVE GEAR (MODEL K6/K7)

VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

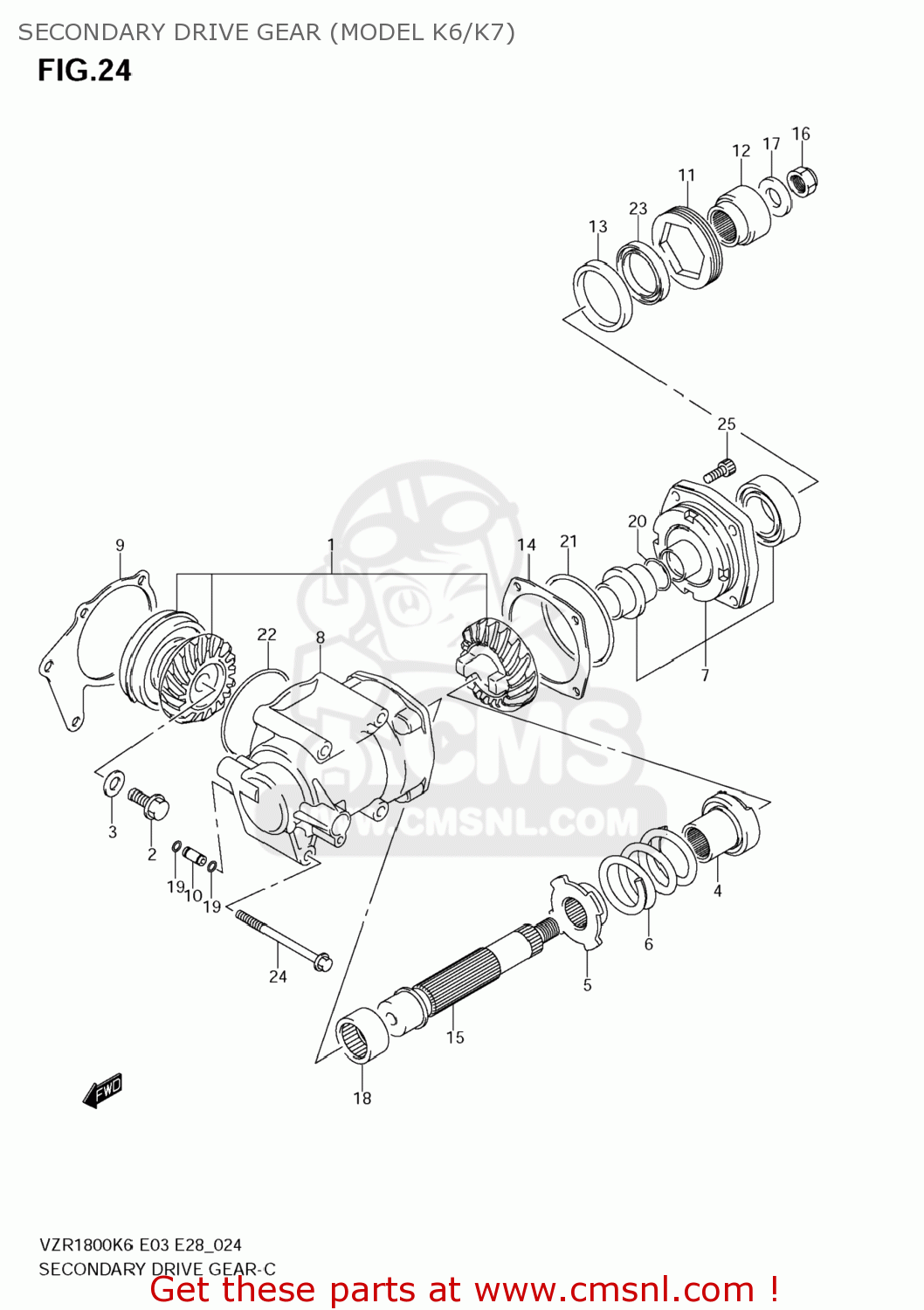

Secondary drive gear (model k6/k7) diagram VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

SECONDARY DRIVE GEAR (MODEL K6/K7) VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

SECONDARY DRIVE GEAR (MODEL K6/K7) VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

2491048820
ref: 1
24910-48830

GEAR SET,SECONDARY

€ 754.50

2

0910312084
ref: 2

BOLT(12X24)

€ 5.50

3

0916012045
ref: 3

WASHER(12X35X2)

€ 3.50

4

2492348G00
ref: 4

DOG,OUTPUT CAM

€ 69.50

5

2492448G10
ref: 5

STOPPER,CAM SPRING

€ 51.50

6

2492548G00
ref: 6

SPRING,SECONDARY DAMPER

€ 26.00

7

2492648811
ref: 7

STOPPER,SECONDARY DRIVEN SET

€ 316.00

8

2493148G00
ref: 8

CASE,SECONDARY GEAR

€ 346.50

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

10

2494026D00
ref: 10

PIPE,SECONDARY CASE OIL

€ 13.50

11

2494226D00
ref: 11

STOPPER,SEC DRIVEN BEARING

€ 37.00

12

2494348G00
ref: 12

COUPLING,SEC D

€ 66.00

13

2494448G00
ref: 13

HOUSING,OIL SEAL

€ 28.00

14

2494526810
ref: 14

SHIM SET,SEC DRIVEN GEAR

€ 31.00

14

2494526810
ref: 14

SHIM SET,SEC DRIVEN GEAR

€ 31.00

15

2496148G00
ref: 15

SHAFT,SECONDARY DRIVEN

€ 102.50

16

0915916003
ref: 16

NUT

€ 3.50

17

0916016040
ref: 17

WASHER(16.5X36X4)

€ 7.00

18

0926332012
ref: 18

BEARING(32X48X22)

€ 62.50

19

0928006008
ref: 19

O RING(D:1.7,ID:6)

€ 2.00

20

0928024010
ref: 20

O RING(D:2.4,ID:23.7)

€ 5.50

21

0928078003
ref: 21

O RING(D:3.7,ID:76.5)

€ 6.00

22

0928092002
ref: 22

O RING(D:2.4,ID:90.8)

€ 13.00

23

0928338011
ref: 23

SEAL,OIL(38X54X6)

€ 11.50

24

015500895A
ref: 24

BOLT

€ 2.50

25

0910608097
ref: 25

BOLT(8X25)

€ 2.50
