STARTER CLUTCH

VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

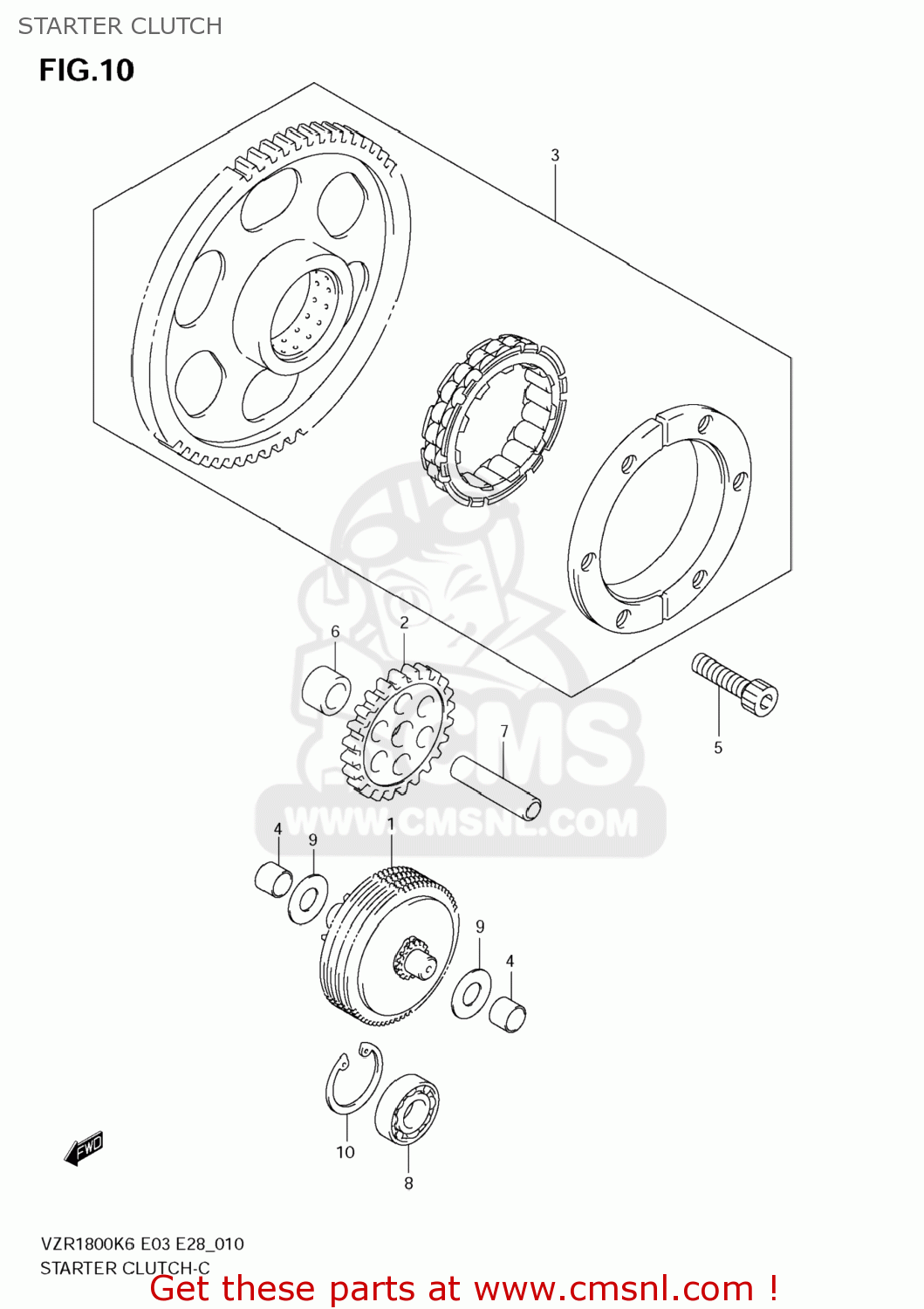

Starter clutch diagram VZR1800N BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1260048G00
ref: 1

LIMITER ASSY,S

€ 205.00

1261206G00
ref: 2

GEAR,STARTER IDLE NO.2

€ 50.00

1260048820
ref: 3

CLUTCH SET,STARTER

€ 274.00

1261831G00
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 2.00

0910608095A05
ref: 5
09106-08095

BOLT (8X16)

€ 2.50

0918012138A05
ref: 6

SPACER(12.5X19X12.5)

€ 4.00

0920612006
ref: 7

PIN(8X12X45.5)

€ 7.50

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

0821110221
ref: 9

WASHER

€ 2.50

0833141286
ref: 10
08331-4128A

CIRCLIP

€ 3.50
