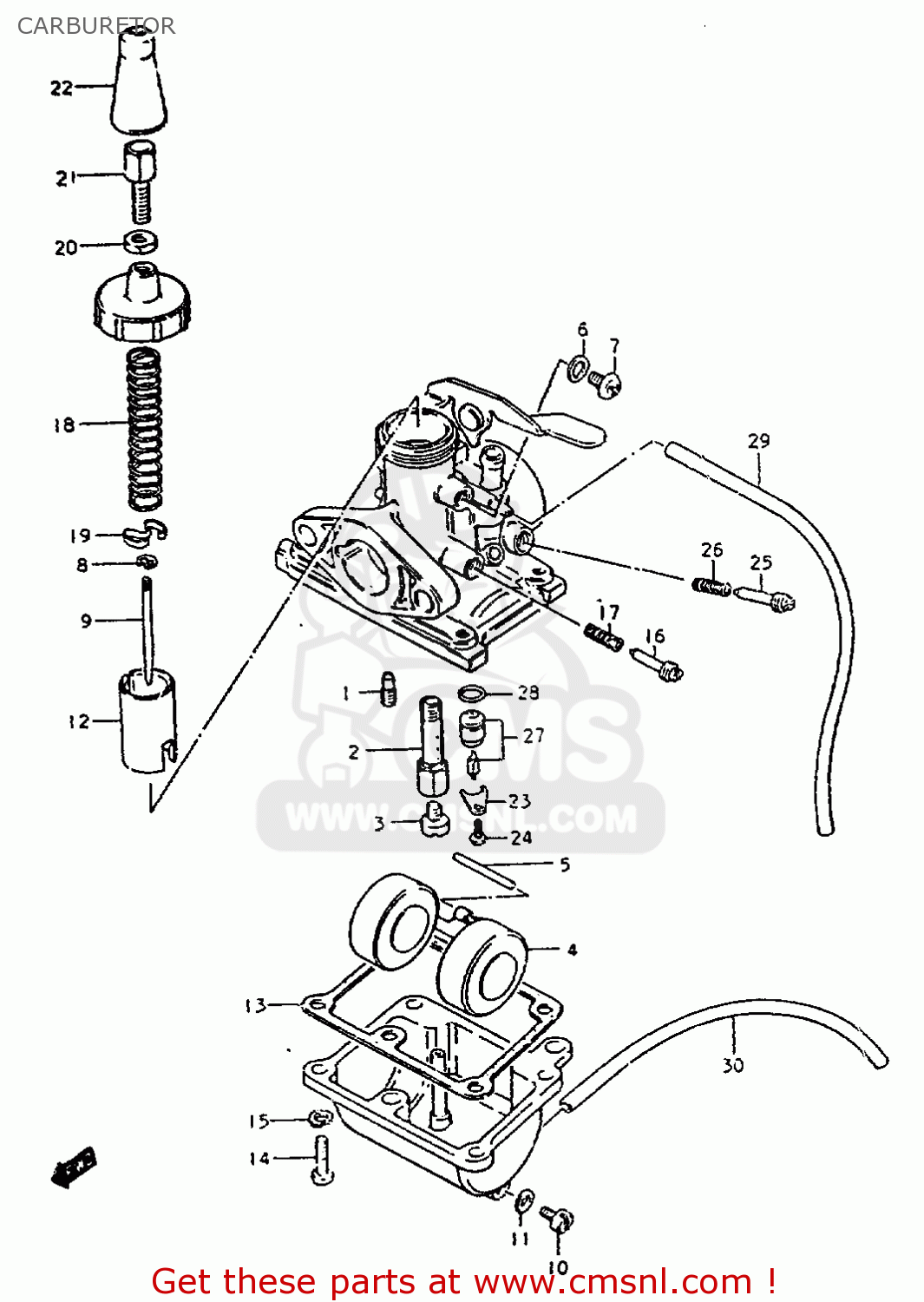

CARBURETOR

ref

part #

description

quantity

0

1320046560
ref: 0

CARBURETOR ASSY

€ 134.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1

0949215002
ref: 1

JET,PILOT

€ 11.00

2

0949400233
ref: 2

JET, NEEDLE (E-7)

€ 13.50

3-1

0949170010
ref: 3-1

JET,MAIN(70)

€ 9.00

3-2

NOTUSED
ref: 3-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4

1325246110
ref: 4

FLOAT

€ 24.00

5

1325420010
ref: 5

PIN,FLOAT

€ 3.00

6

1366346710
ref: 6

RING

€ 3.00

7

0211205068
ref: 7

SCREW

€ 4.00

8

1339412110
ref: 8

CLIP,NEEDLE

€ 3.00

9

1338306111
ref: 9

NEEDLE,JET

€ 13.00

10

1324705010
ref: 10

PLUG

€ 6.00

11

1324905010
ref: 11

GASKET,DRAIN,PLUG (NAS)

€ 1.50

12

1355146750
ref: 12

VALVE,THROTTLE(CA:2.0)

€ 38.00

13

1325146110
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

14

0211204168
ref: 14

SCREW

€ 1.00

15

0832121048
ref: 15

LOCK WASHER

€ 2.00

16

1326701010
ref: 16

SCREW,THROTTLE STOP

€ 6.00

17

1326801010
ref: 17

SPRING

€ 3.50

18

1357346710
ref: 18

SPRING,THROTTLE VALVE RETURN

€ 3.00

19

1358101010
ref: 19

PLATE,THROTTLE VALVE

€ 6.50

20

1366116600
ref: 20

NUT

€ 5.00

21

1357748110
ref: 21

ADJUSTER,CABLE

€ 8.00

22

1368116601
ref: 22

CAP

€ 7.00

23

1337346710
ref: 23

PLATE,NEEDLE VALVE FITING

€ 4.50

24

0211203088
ref: 24

SCREW

€ 1.50

25

1326904010
ref: 25

SCREW,AIR

€ 10.00

26

1326801010
ref: 26

SPRING

€ 3.50

27

1337046710
ref: 27

VALVE ASSY,NEEDLE

€ 44.00

28

1337447610
ref: 28

O-RING,NEEDLE VALVE

€ 4.50

29

1368339110
ref: 29

HOSE

€ 8.00

30

1368430650
ref: 30

HOSE

€ 7.50
