FRONT FORK
ZR50K 1981 (X) (E22)

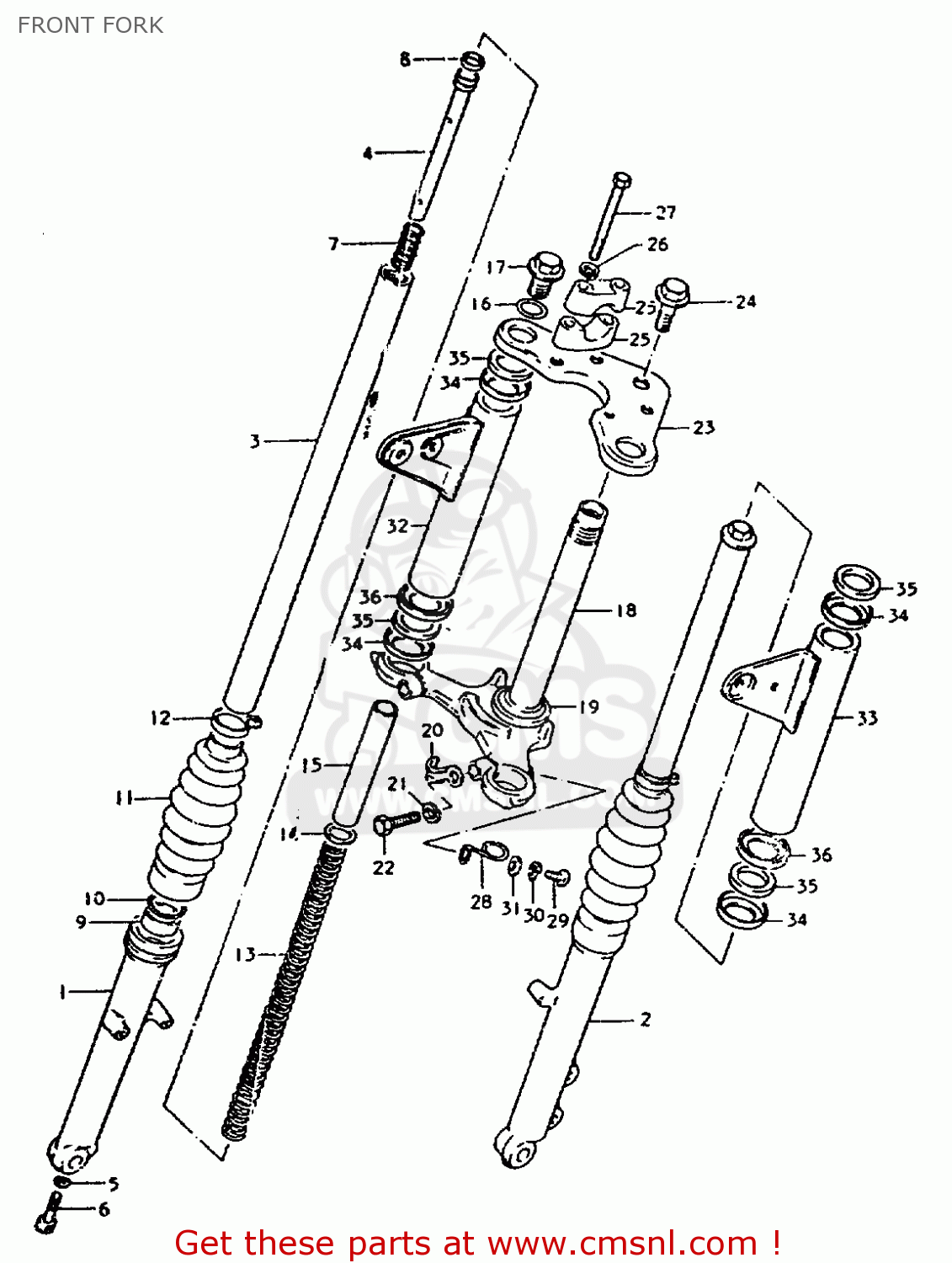

Front fork diagram ZR50K 1981 (X) (E22)
FRONT FORK ZR50K 1981 (X) (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5110646160
ref: 0
FORK ASSY, FRONT
€ 0.00
1
5113146101
ref: 1
OUTER TUBE, RH
€ 93.50
2
5114146101
ref: 2
OUTER TUBE, LH
€ 93.50
3
5111046190
ref: 3
TUBE,INNER
€ 113.00
4
5114646100
ref: 4
CYLINDER,FRONT FORK
€ 0.00
5
5114831030
ref: 5
GASKET (NAS)
€ 4.00
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5117746100
ref: 7
SPRING,REBOUND
€ 3.50
8
5119646100
ref: 8
RING,PISTON
€ 6.00
9
5115346101
ref: 9
OIL SEAL,FRONT FORK
€ 10.50
10
5115646100
ref: 10
CIRCLIP,FORK OIL SEAL
€ 3.50
11
5157146120
ref: 11
BOOT
€ 22.50
12
0940230306
ref: 12
BAND
€ 6.00
13
5117146190
ref: 13
SPRING,FRONT FORK
€ 15.00
14
5119246100
ref: 14
JOINT,SPRING
€ 2.50
15
5117646100
ref: 15
SPACER,SPRING
€ 6.50
16
5118146190
ref: 16
O-RING,FORK INNER TUBE
€ 5.50
17
5135146190
ref: 17
CAP
€ 15.00
18
5141046160
ref: 18
STEERING STEM
€ 0.00
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
5145208030
ref: 20
CLIP,CABLE
€ 3.00
21
0832121108
ref: 21
LOCK WASHER
€ 2.00
22
0110710308
ref: 22
BOLT 10X30
€ 3.00
23
5131046400291
ref: 23
HEAD,STEERING STEM
€ 37.50
24
5135246101
ref: 24
BOLT
€ 5.50
25
5621127200291
ref: 25
HOLDER,HANDLE UPR
€ 13.50
26
0832121088
ref: 26
LOCK WASHER
€ 2.00
27
0110708558
ref: 27
BOLT 8X55
€ 3.00
28
5145246100
ref: 28
CLIP
€ 3.00
29
0211206128
ref: 29
SCREW 6X12
€ 2.00
30
0832121068
ref: 30
LOCK WASHER
€ 2.50
31
0832221068
ref: 31
WASHER
€ 2.00
32-1
515304612005H
ref: 32-1
BRACKET, HEADLAMP RH
€ 34.50
32-2
515304612007P
ref: 32-2
BRACKET, HEADLAMP RH
€ 27.00
32-3
5153046120189
ref: 32-3
BRACKET, HEADLAMP RH
€ 26.50
33-1
515404612005H
ref: 33-1
BRACKET, HEADLAMP LH
€ 32.50
33-2
515404612007P
ref: 33-2
BRACKET, HEADLAMP LH
€ 27.00
33-3
5154046120189
ref: 33-3
BRACKET, HEADLAMP LH
€ 52.00
34
5155546120
ref: 34
SEAT, CUSHION
€ 4.50
35
5155327410
ref: 35
CUSHION
€ 7.00
36
5155146120
ref: 36
SEAT, HEADLAMP BRACKET
€ 5.50
