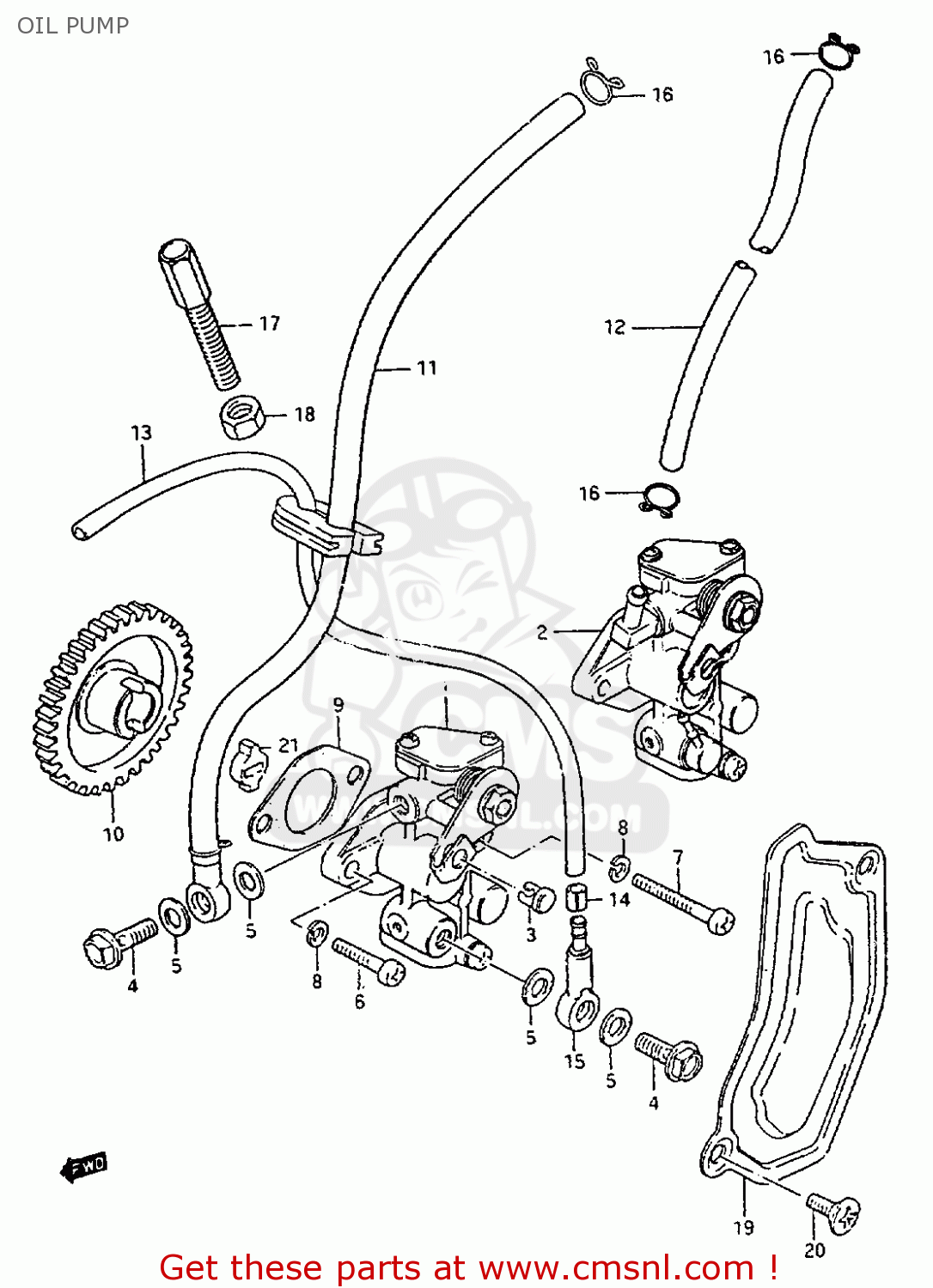

OIL PUMP

ref

part #

description

quantity

1

1610046111
ref: 1
~E.NO.118825

PUMP ASSEMBLY,OIL

€ 172.50

2

1610046112
ref: 2
E.NO.118826~

PUMP ASSY,OIL

€ 172.50

3

1629203111
ref: 3

TERMINAL,CABLE

€ 3.50

4

0936006003
ref: 4
~E.NO.118825

UNION BOLT

€ 5.00

5

0916806004
ref: 5
~E.NO.118825

GASKET(6.2X11X1).2 (NAS)

€ 1.50

6

0211205168
ref: 6

SCREW

€ 2.50

7

0211205308
ref: 7

SCREW

€ 1.50

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

1673103101
ref: 9

GASKET,OIL PUMP (NAS)

€ 2.50

10

1632046131
ref: 10

GEAR,OIL PUMP DRIVE

€ 35.00

11

1681008410
ref: 11
~E.NO.118825

HOSE, OIL INLET

€ 17.50

12

0934304025
ref: 12
E.NO.118826~

HOSE

€ 14.00

13-1

1682046101
ref: 13-1
~E.NO.118825

HOSE,OIL

€ 8.00

13-2

1682046102
ref: 13-2
E.NO.118826~

HOSE,NO.2

€ 8.00

14

0940104401
ref: 14

CLIP

€ 2.50

15

1671035010
ref: 15

VALVE,CHECK

€ 19.50

16

0940108401
ref: 16

CLIP

€ 1.50

17

0911908014
ref: 17

BOLT

€ 3.50

18

0831012088
ref: 18

NUT

€ 2.00

19

1138546100
ref: 19

CAP,OIL PUMP INSPECTION

€ 18.50

20

0212206128
ref: 20

SCREW

€ 3.00

21

1639105031
ref: 21

PIECE,OIL PUMP DRIVE

€ 2.50

all assemblies
