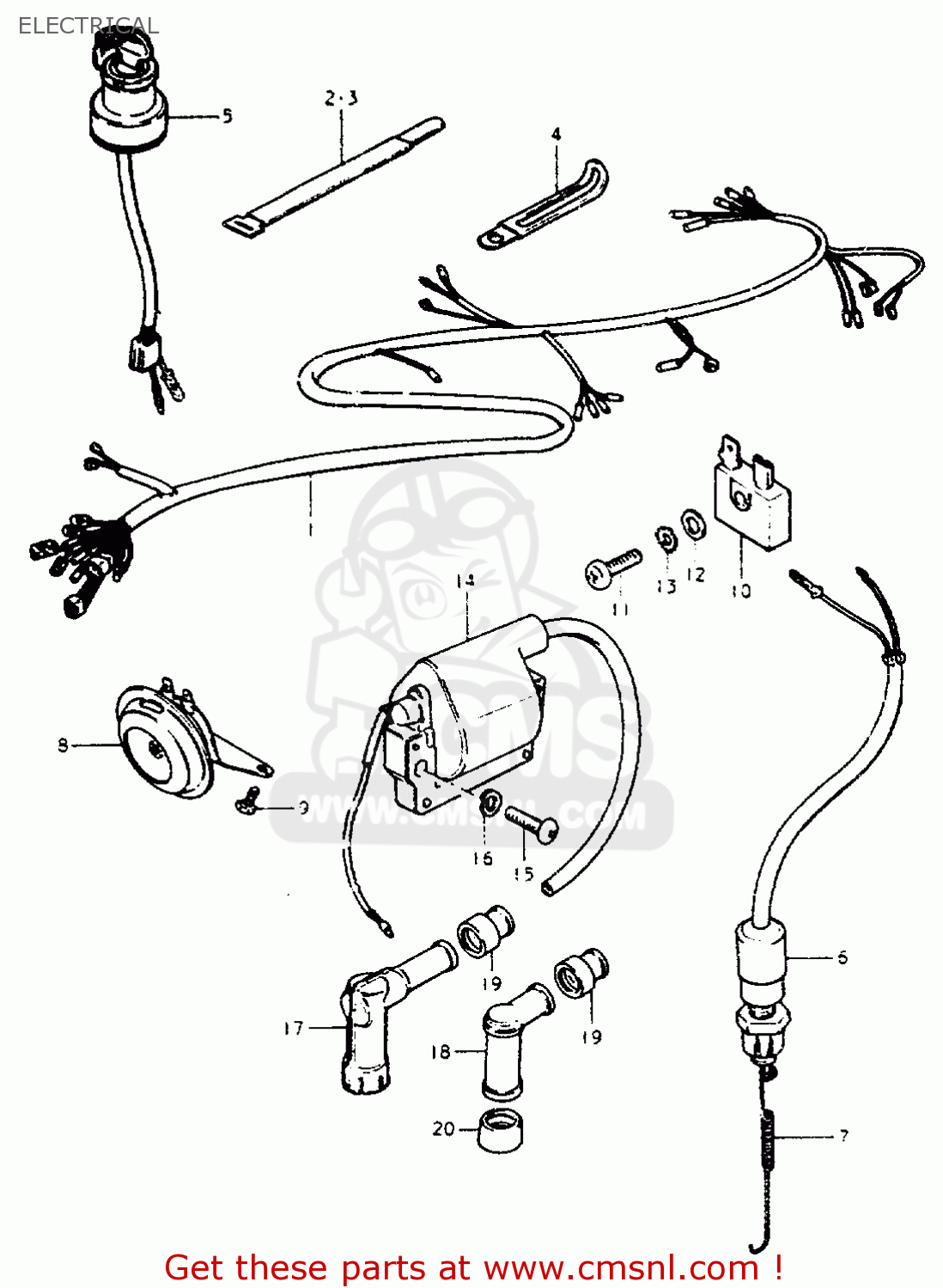

ELECTRICAL

ref

part #

description

quantity

1-1

3661046140
ref: 1-1

WIRING HARNESS

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

0940718301
ref: 2

CLAMP

€ 6.00

3

0940711301
ref: 3

CLAMP L:110

€ 6.00

4

0940406403
ref: 4

CLAMP

€ 2.50

5-1

3711046151
ref: 5-1
FROM 37110-46150

SWITCH, IGNITION

€ 86.00

5-2

NOTUSED
ref: 5-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6

3774004571
ref: 6

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

7

0944306011
ref: 7

SPRING

€ 6.00

8

3850046132
ref: 8

HORN ASSEMBLY

€ 37.50

9

0110706108
ref: 9

BOLT

€ 2.00

10

3280019063
ref: 10

RECTIFIER ASSEMBLY

€ 10.50

11

0211205208
ref: 11

SCREW 5X20

€ 3.00

12

0832221058
ref: 12

WASHER

€ 2.50

13

0916305001
ref: 13

WASHER,LOCK

€ 0.00

14

3341043010
ref: 14

COIL ASSEMBLY,IGNITION

€ 89.50

15

0211206258
ref: 15

SCREW

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

3351039110
ref: 17

CAP,SPARK PLUG

€ 61.50

18

NOTUSED
ref: 18

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19

3354298000
ref: 19

SEAL,SPARK PLU

€ 4.50

20

NOTUSED
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

all assemblies
