CRANKCASE

ZR50SK 1987 (H) (E02 E16 E21)

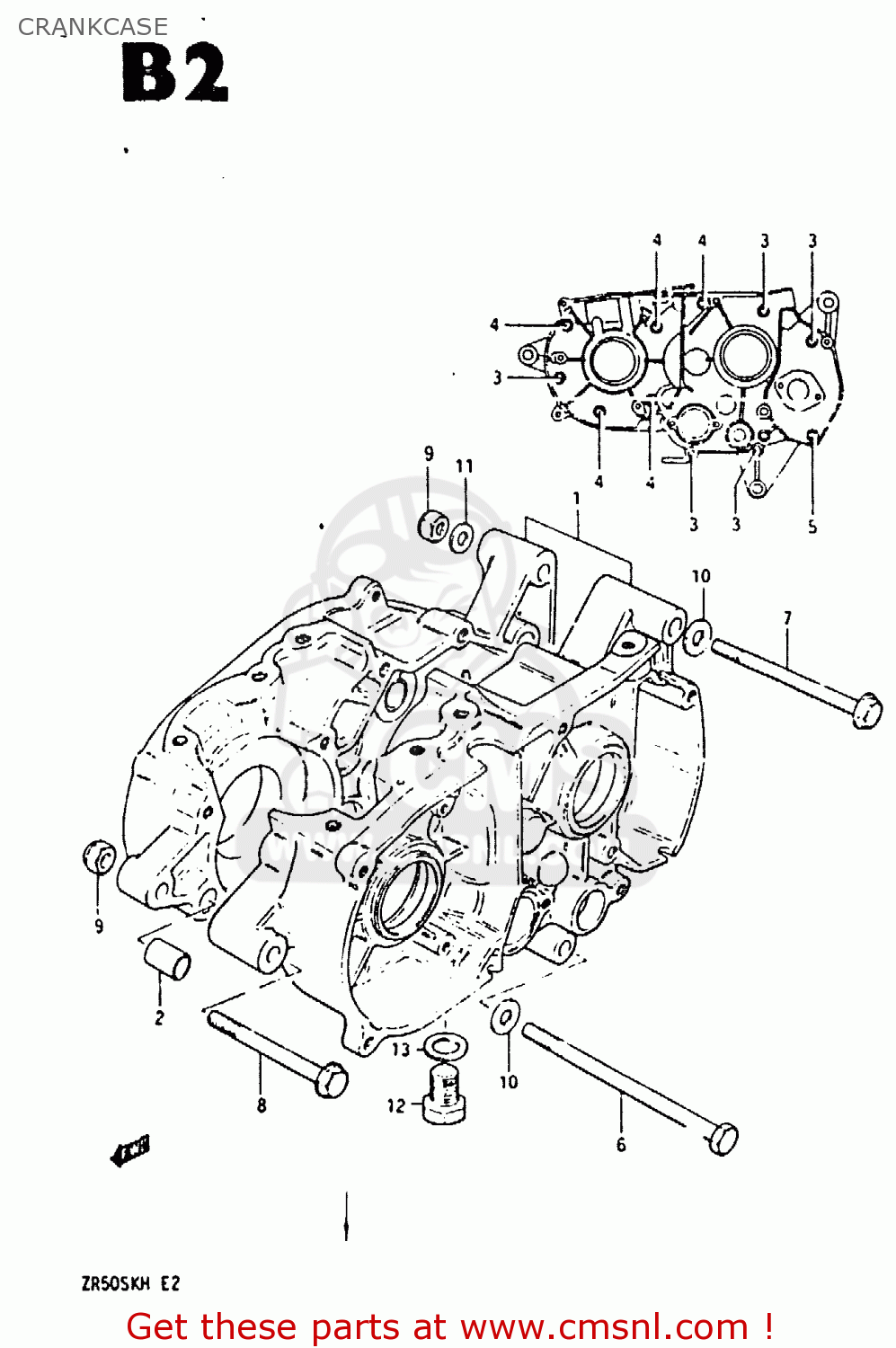

Crankcase diagram ZR50SK 1987 (H) (E02 E16 E21)

CRANKCASE ZR50SK 1987 (H) (E02 E16 E21)

CRANKCASE ZR50SK 1987 (H) (E02 E16 E21)

prices are in EUR

ref

part #

description

quantity

1

1130046827
ref: 1

CRANKCASE ASSEMBLY

€ 272.00

2

0421111189
ref: 2

PIN

€ 2.00

3

0211206458
ref: 3

SCREW (6X45)

€ 2.00

4

0211206358
ref: 4

SCREW (6X35)

€ 2.50

5

0211206258
ref: 5

SCREW

€ 2.00

6

0910008155
ref: 6

BOLT 8X115

€ 3.50

7

0910308070
ref: 7

BOLT(8X100)

€ 5.00

8

0151708758
ref: 8

BOLT 8X75

€ 3.50

9

0915908020
ref: 9

NUT

€ 2.50

10

0832211088
ref: 10

WASHER

€ 2.00

11

0916008030
ref: 11

WASHER

€ 2.50

12

0110710208
ref: 12

BOLT 10X20

€ 3.50

13

0916810002
ref: 13

GASKET(10X14X3.6) (NAS)

€ 2.00
