MAGNETO
ZR50SK 1987 (H) (E02 E16 E21)

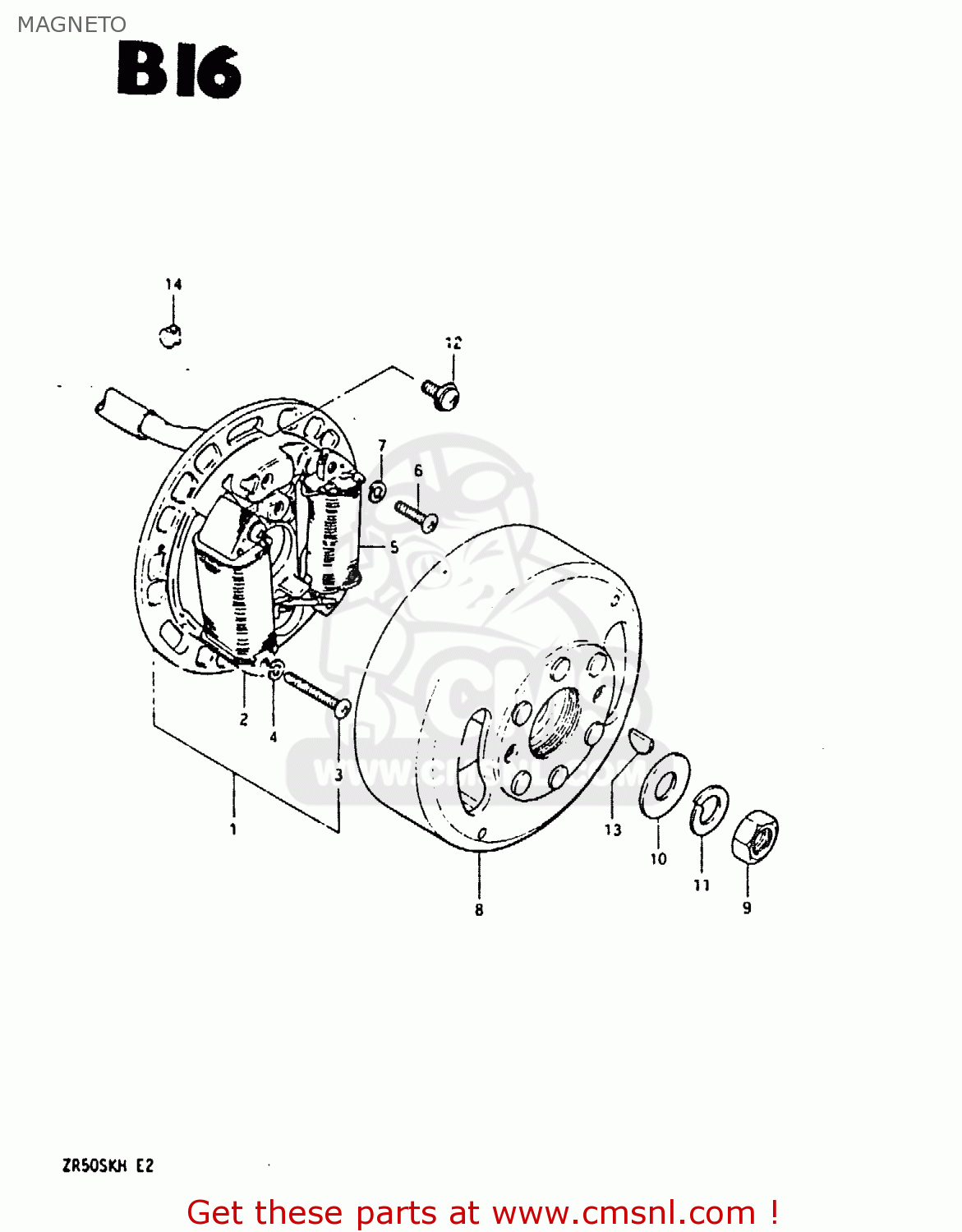

Magneto diagram ZR50SK 1987 (H) (E02 E16 E21)
MAGNETO ZR50SK 1987 (H) (E02 E16 E21)
×
prices are in EUR
ref
part #
description
quantity
1
3210146320
ref: 1
STATOR ASSY
€ 293.50
2
3212023012
ref: 2
COIL,LIGHTING
€ 49.00
3
0211204308
ref: 3
SCREW (4X30)
€ 1.50
4
0832121047
ref: 4
WASHER,LOCK 4M
€ 2.00
5
3214004510
ref: 5
COIL,PRIMARY
€ 41.00
6
0211204167
ref: 6
SCREW
€ 1.00
7
0832121047
ref: 7
WASHER,LOCK 4M
€ 2.00
8
3210246320
ref: 8
ROTOR ASSY
€ 144.50
9
0914010003
ref: 9
NUT (10MM)
€ 3.50
10
0832221108
ref: 10
WASHER
€ 2.50
11
0832121107
ref: 11
WASHER,LOCK,10
€ 2.00
12
0214205128
ref: 12
SCREW
€ 1.50
13
0834131039
ref: 13
KEY
€ 2.00
14
3274232021
ref: 14
GROMMET,NEUTRAL LEAD WIRE
€ 2.50
