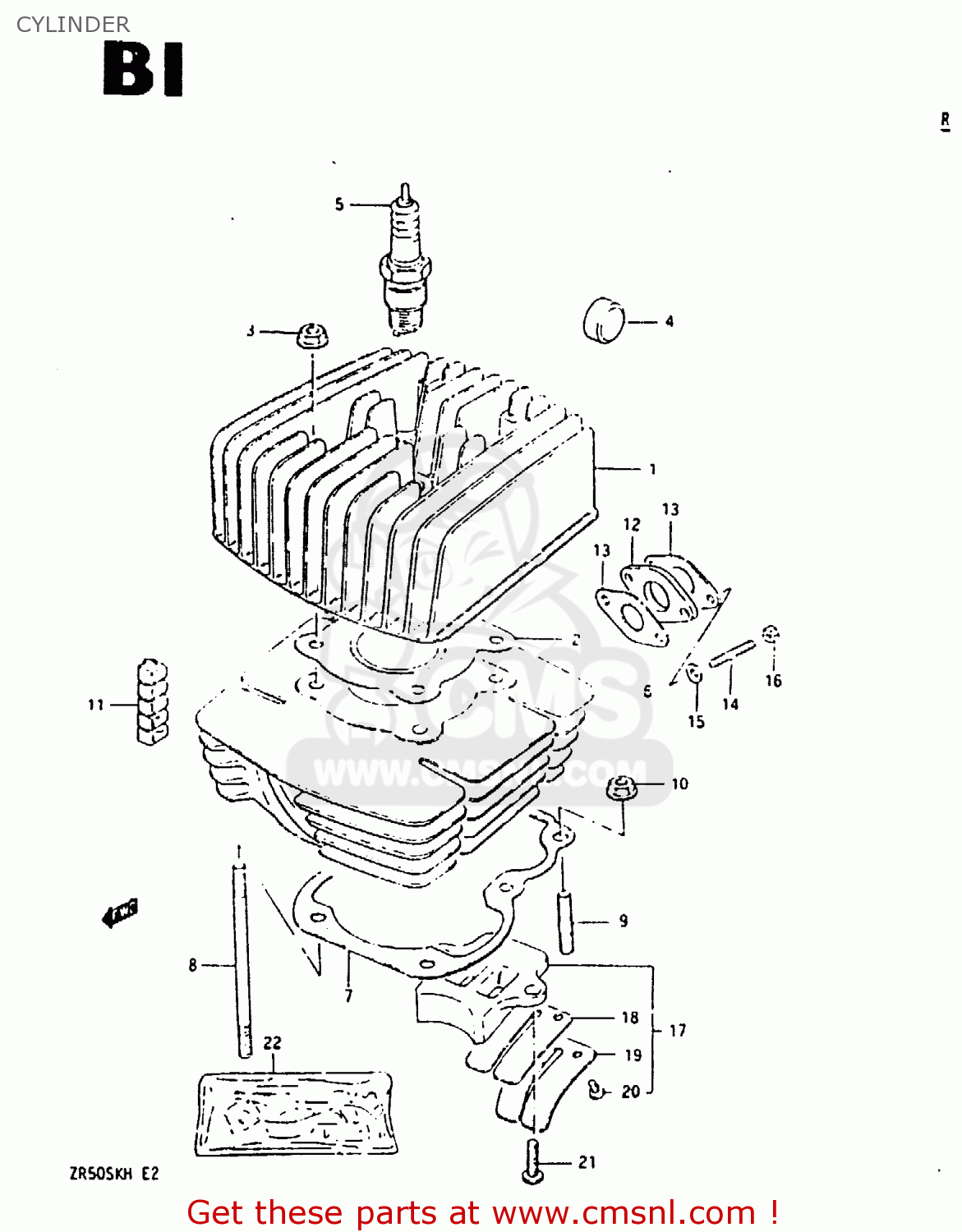

CYLINDER

ref

part #

description

quantity

1-1

1111146140
ref: 1-1
E2, E16

CYLINDER HEAD

€ 85.50

1-2

1111113000
ref: 1-2
E21

CYLINDER HEAD

€ 75.00

2-1

1114146150
ref: 2-1
E2, E16

GASKET,CYLINDER HEAD (NAS)

€ 5.00

2-2

1114146181
ref: 2-2
E21

GASKET,CYLINDER HEAD (NAS)

€ 8.50

3

0915906017
ref: 3

NUT

€ 2.50

4

1125228000
ref: 4
E16, E21

PAD,CYLINDER

€ 2.00

5-1

0948200177
ref: 5-1
E2, E16

SPARK PLUG (NGK,BP6ES)

€ 4.00

5-2

0948200154
ref: 5-2
E2, E16

SPARK PLUG (ND,W20EP)

€ 3.00

5-3

0948200175
ref: 5-3
E21

SPARK PLUG BP8ES

€ 6.50

5-4

0948200176
ref: 5-4
E21

SPARK PLUG W24EP

€ 6.50

6-1

1121026910
ref: 6-1
E2, E16

CYLINDER

€ 0.00

6-2

1121013000
ref: 6-2
E21

CYLINDER

€ 245.50

7

1124146100
ref: 7

GASKET,CYLINDER (MCA)

€ 6.00

8

0910806012
ref: 8

BOLT,STUD

€ 4.00

9

0142106168
ref: 9

STUD 6X16

€ 2.00

10

0915906017
ref: 10

NUT

€ 2.50

11

1125136500
ref: 11

PAD,CYLINDER

€ 6.50

12

1312946100
ref: 12

INSULATOR,CARBURETOR

€ 10.50

13

1312546100
ref: 13

GASKET,CARBURETOR (MCA)

€ 3.00

14

0141106208
ref: 14

STUD BOLT

€ 1.50

15

0832221067
ref: 15

WASHER

€ 2.00

16

0831011068
ref: 16

NUT

€ 2.50

17

1315026411
ref: 17
E21

VALVE ASSY,REED

€ 51.00

18

1315326410
ref: 18
E21

VALVE,REED

€ 6.50

19

1315226410
ref: 19
E21

STOPPER,REED VALVE

€ 4.50

20

1315419011
ref: 20
E21

SCREW,REED VALVE

€ 1.50

21

0211206168
ref: 21
E21

SCREW

€ 2.50

22-1

1140146881
ref: 22-1
OPT, E2, E16

GASKET SET

€ 41.00

22-2

1140146851
ref: 22-2
OPT, E21

GASKET SET (NAS)

€ 37.00

all assemblies
