REAR BRAKE

ZR50SK 1987 (H) (E02 E16 E21)

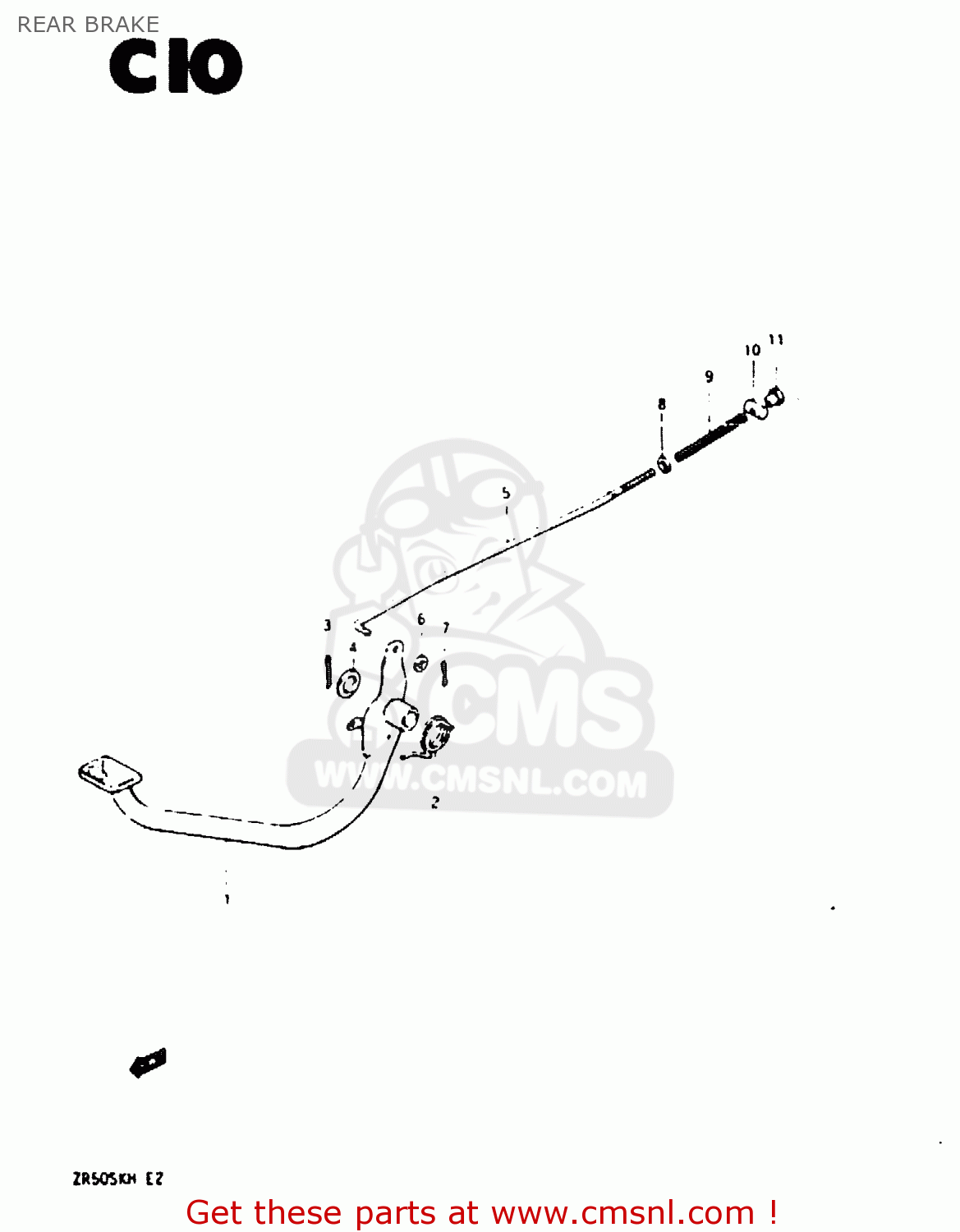

Rear brake diagram ZR50SK 1987 (H) (E02 E16 E21)

REAR BRAKE ZR50SK 1987 (H) (E02 E16 E21)

REAR BRAKE ZR50SK 1987 (H) (E02 E16 E21)

prices are in EUR

ref

part #

description

quantity

1

4311026400
ref: 1

PEDAL, BRAKE

€ 33.50

2

0944831013
ref: 2

SPRING

€ 3.00

3

0411130308
ref: 3

COTTER PIN

€ 1.50

4

0916015002
ref: 4

WASHER(15.5X26X2.3)

€ 2.00

5

4330026400
ref: 5

ROD ASSY,RR BRAKE

€ 15.50

6

0832221057
ref: 6

WASHER

€ 2.50

7

0411120208
ref: 7

PIN 20X20

€ 1.50

8

0832221067
ref: 8

WASHER

€ 2.00

9

0944009004
ref: 9

SPRING

€ 2.00

10

0920911002
ref: 10

PIN(11X18)

€ 2.00

11

0915006009
ref: 11

NUT (6MM)

€ 3.50
