KICK STARTER (DR-Z400Y/K1/K2/K3/K4)

DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

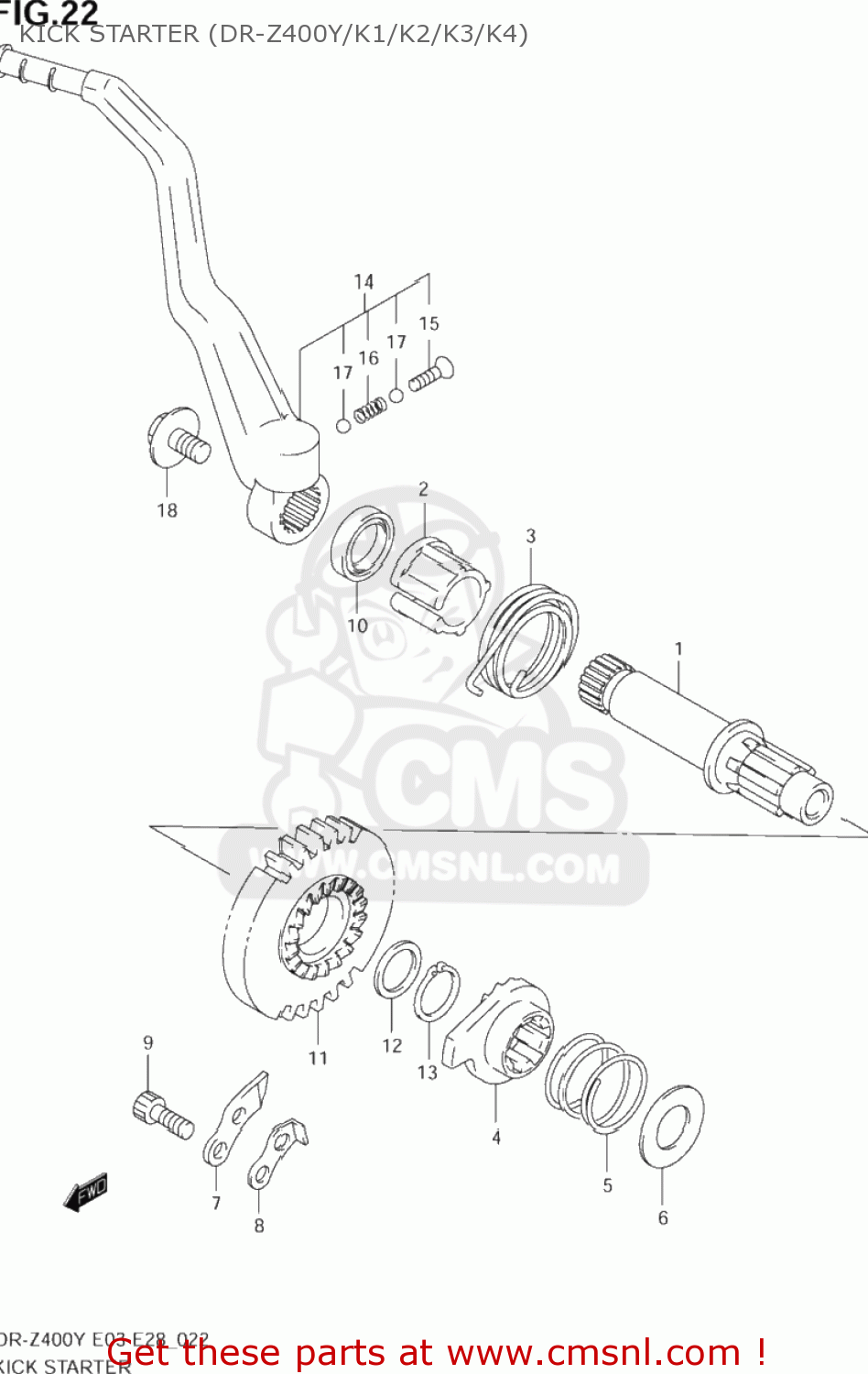

Kick starter (dr-z400y/k1/k2/k3/k4) diagram DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

KICK STARTER (DR-Z400Y/K1/K2/K3/K4) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
KICK STARTER (DR-Z400Y/K1/K2/K3/K4) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
KICK STARTER (DR-Z400Y/K1/K2/K3/K4) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
2621129F00
ref: 1
SHAFT,KICK STARTER
2621129F00
€ 161.00
2
2622129F00
ref: 2
GUIDE,KICK STARTER SFT SPRING
2622129F00
€ 9.50
3
0944848011
ref: 3
SPRING
0944848011
€ 11.00
4
2623114D21
ref: 4
STARTER,KICK
2623114D21
€ 41.50
5
0944032002
ref: 5
SPRING
0944032002
€ 2.00
6
0918117019
ref: 6
SHIM(17X32X1)
0918117019
€ 3.00
7
2623214500
ref: 7
GUIDE,KICK STARTER
2623214500
€ 6.00
8
2623314500
ref: 8
STOPPER,KICK STARTER
2623314500
€ 3.50
9
0713006123
ref: 9
07130-0612A
BOLT,STRANGER
€ 2.50
10
0928320044
ref: 10
SEAL,OIL(20X27X6)
0928320044
€ 8.00
11-1
2624029F00
ref: 11-1
26240-29F01
GEAR,KICK STARTER DRIVE
€ 177.00
11-2
2624029F01
ref: 11-2
GEAR,KICK STARTER DRIIVE
€ 177.00
12
0918122139
ref: 12
SHIM(22X28X1)
0918122139
€ 4.00
13
0938022006
ref: 13
CIRCLIP
0938022006
€ 3.00
14
2630029F00
ref: 14
LEVER ASSY,KICK STARTER
2630029F00
€ 118.50
15
0912706016
ref: 15
SCREW(6X27.5)
0912706016
€ 3.00
16
0944005031
ref: 16
SPRING
0944005031
€ 1.50
17
0611107004
ref: 17
BALL
0611107004
€ 1.50
18
0910308360
ref: 18
BOLT(8X14)
0910308360
€ 5.00
