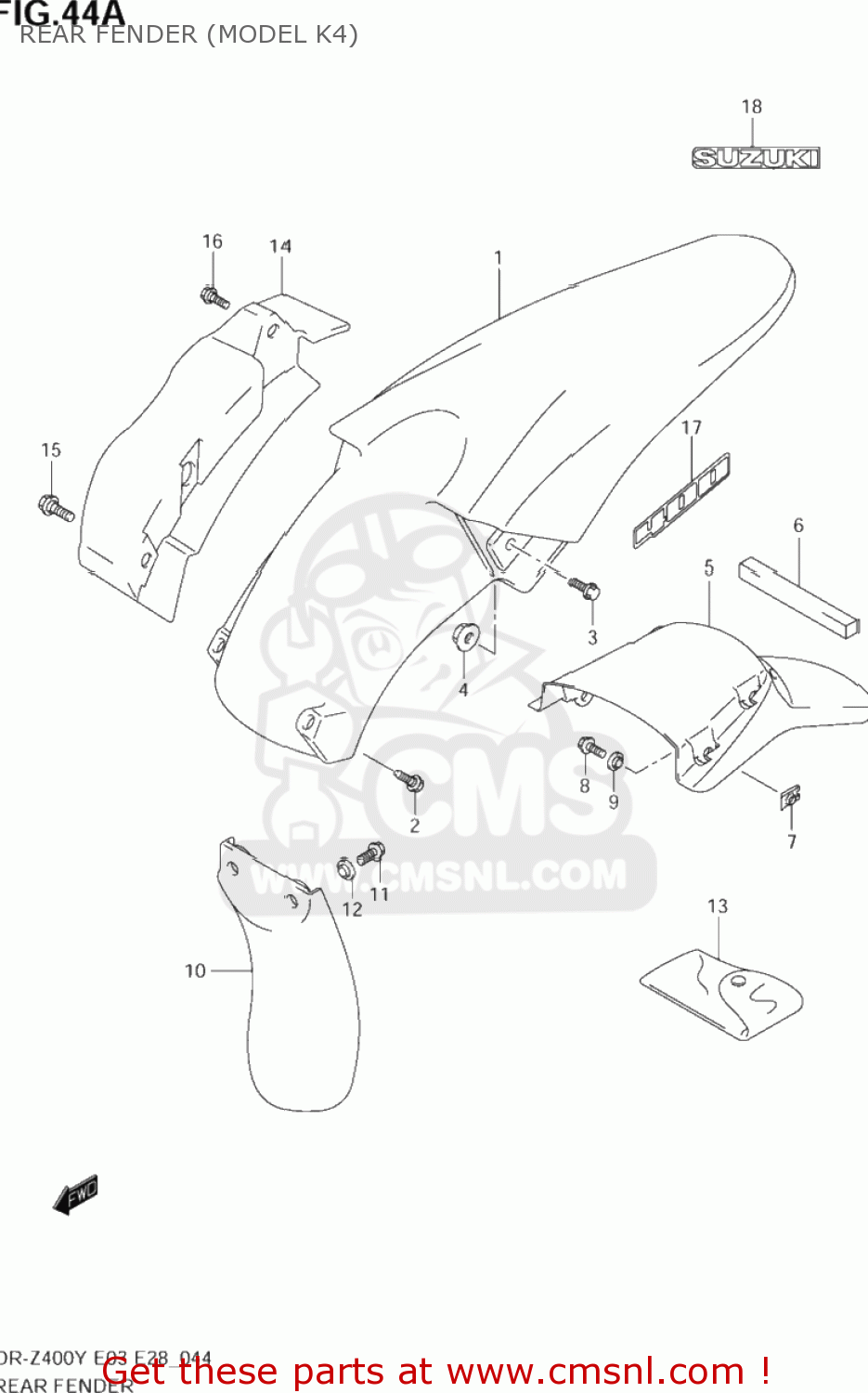

REAR FENDER (MODEL K4)

DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

Rear fender (model k4) diagram DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

REAR FENDER (MODEL K4) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

REAR FENDER (MODEL K4) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1-1

6311329F00YU1
ref: 1-1

FENDER,RR

€ 77.00

1-2

6311329F10YU1
ref: 1-2

FENDER,RR

€ 86.50

1-3

6311329F30YU1
ref: 1-3

FENDER,RR

€ 91.00

2

0911106066
ref: 2

BOLT(6X16)

€ 2.50

3

0911106081
ref: 3

BOLT(6X18)

€ 4.50

4

0831931063
ref: 4
08319-3106A

NUT

€ 2.50

5-1

6331129F00
ref: 5-1

EXTENSION,RR FENDER

€ 37.50

5-2

6331129F10
ref: 5-2

EXTENSION,RR FENDER

€ 24.50

6

6331229F00
ref: 6

CUSHION,RR EXTENSION

€ 2.50

7

0914805021
ref: 7

NUT

€ 1.50

8

0155005103
ref: 8
01550-0510A

BOLT

€ 2.50

9

0916905021
ref: 9
09169-05024

WASHER (5X14X1)

€ 2.00

10

6341129F00
ref: 10

MUDGUARD,RR FENDER FR

€ 10.00

11

0154706163
ref: 11
01547-0616B

BOLT

€ 2.50

12

0916906045
ref: 12
09169-06055

WASHER

€ 2.50

13

0981300039
ref: 13

SPANNER,OPEN

€ 8.00

14

6311429F00
ref: 14

MUDGUARD,RR FENDER,R

€ 16.50

15

0911106081
ref: 15

BOLT(6X18)

€ 4.50

16

6316143E00
ref: 16

BOLT

€ 3.00

17

6817129F00GY8
ref: 17

EMBLEM,RR FENDER

€ 11.50

18

6872113A00GY8
ref: 18

EMBLEM,RR

€ 7.50
