REFLEX REFLECTOR (E28)

DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

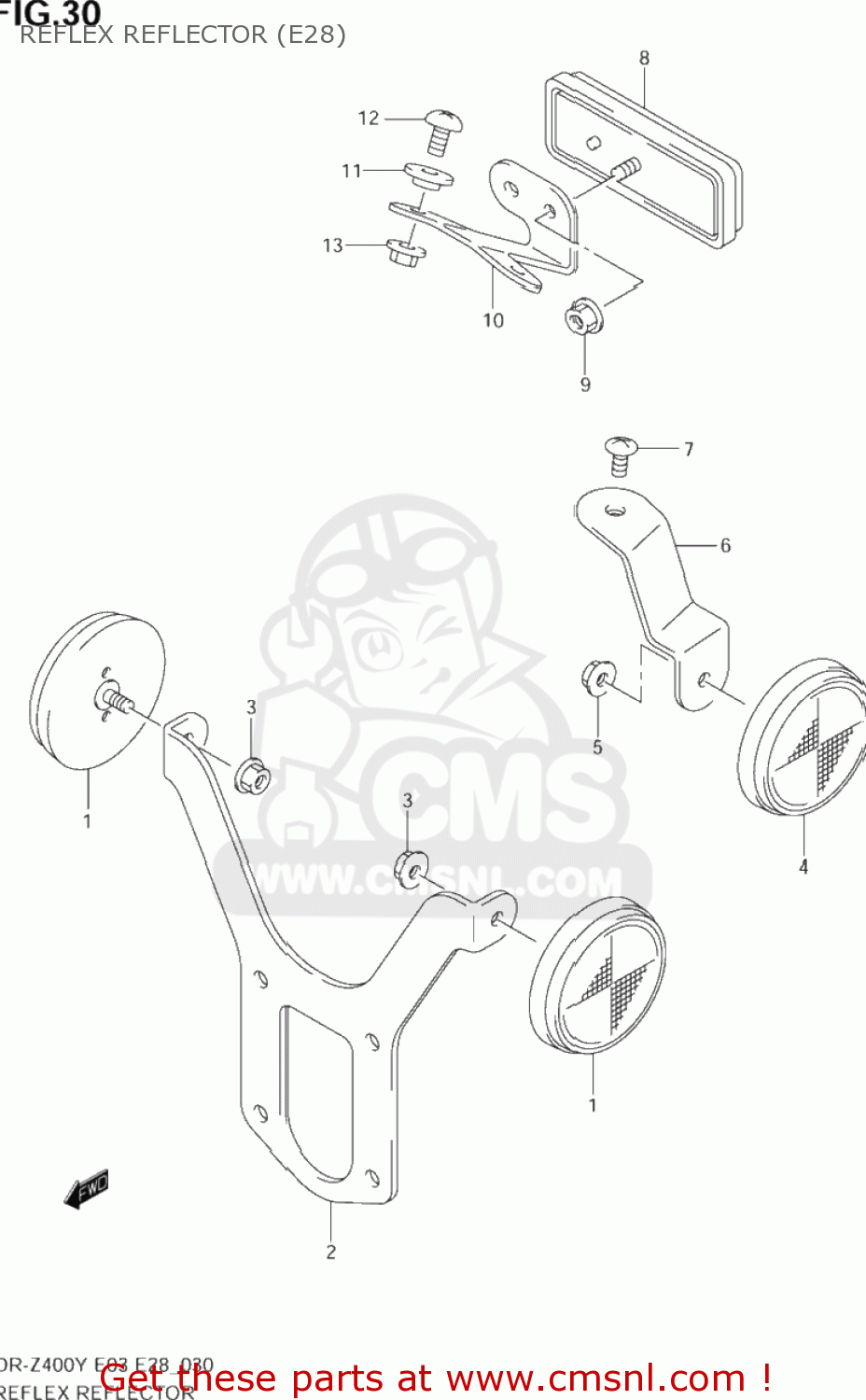

Reflex reflector (e28) diagram DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E

REFLEX REFLECTOR (E28) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
REFLEX REFLECTOR (E28) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
REFLEX REFLECTOR (E28) DR-Z400E 2004 (K4) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
3595014A00
ref: 1
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
2
3595629F00
ref: 2
BRACKET,FR SIDE RR
€ 9.50
3
0831610053
ref: 3
08316-1005A
NUT
0831610053
€ 2.50
4
3597014A20
ref: 4
REFLECTOR ASSY,RR SIDE
3597014A20
€ 11.00
5
0831610053
ref: 5
08316-1005A
NUT
0831610053
€ 2.50
6-1
3597529F00
ref: 6-1
BRACKET,RR SIDE RR,R
€ 0.00
6-2
3597629F00
ref: 6-2
BRACKET,RR SIDE RR,L
€ 0.00
7
0214206123
ref: 7
02142-0612A
SCREW 6X12
0214206123
€ 2.00
8
3597007F00
ref: 8
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
9
0831610053
ref: 9
08316-1005A
NUT
0831610053
€ 2.50
10
3596629F00
ref: 10
BRACKET,RR RR
€ 0.00
11
0916005037
ref: 11
WASHER(5.5X16X1.2)
0916005037
€ 1.50
12
0214205123
ref: 12
02142-0512A
SCREW 5X12
0214205123
€ 1.50
13
0831610053
ref: 13
08316-1005A
NUT
0831610053
€ 2.50
