HEADLAMP

DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

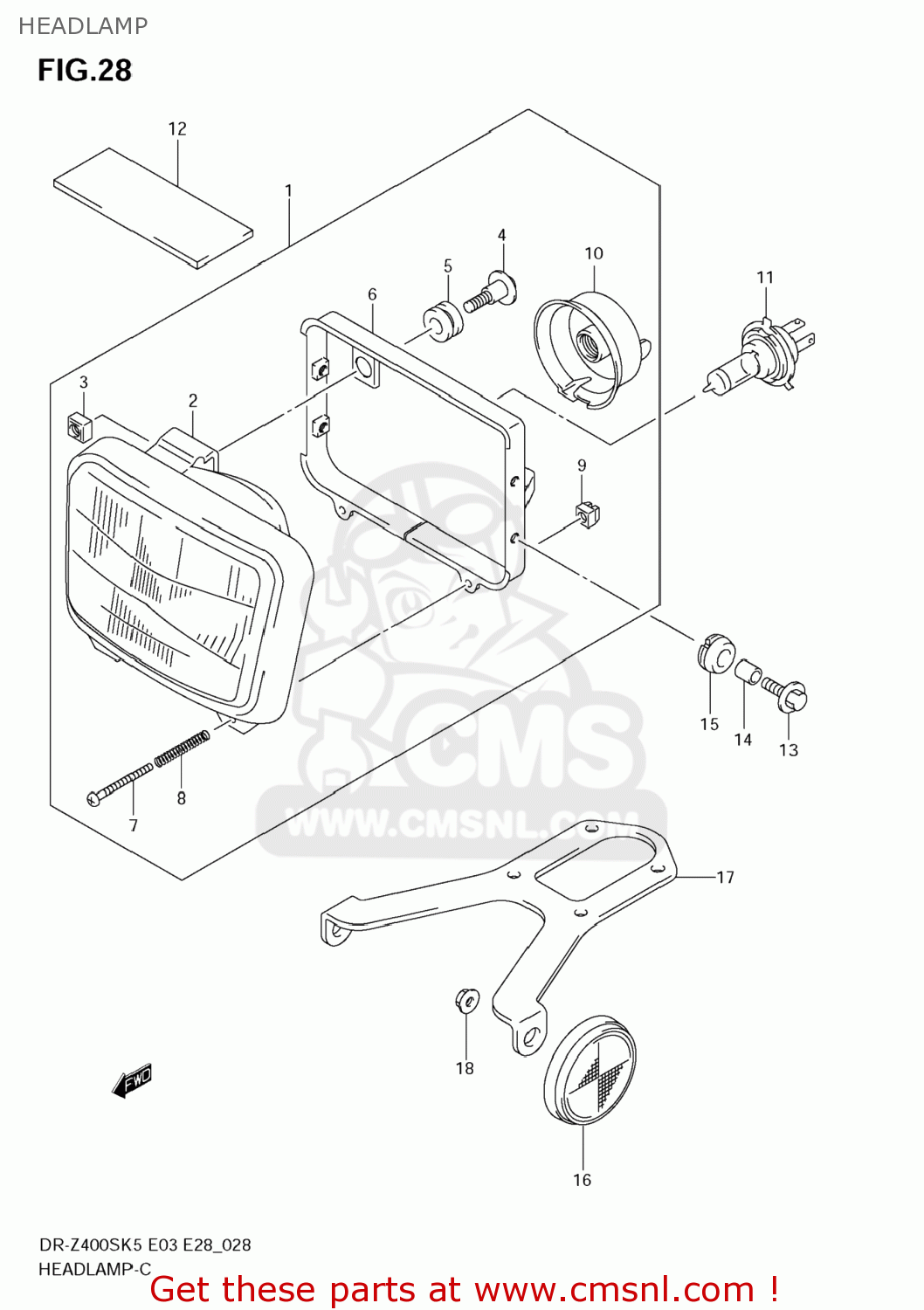

Headlamp diagram DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

3510012EA0999
ref: 1

HEADLAMP ASSY

€ 251.50

3512112EA0
ref: 2

UNIT ASSY

€ 142.50

3513545900
ref: 3

NUT

€ 2.50

3513638A00
ref: 4

SCREW,MOUNTING

€ 2.50

3513945230
ref: 5

CUSHION

€ 1.50

3514112EA0
ref: 6

HOUSING

€ 65.00

3515112EA0
ref: 7

SCREW,ADJUSTING

€ 4.00

3515412EA0
ref: 8

SPRING,ADJUSTING

€ 3.00

3513512E20
ref: 9

NUT,ADJUSTING

€ 2.50

3517301440
ref: 10

COVER,SOCKET

€ 10.00

0947112185
ref: 11
09471-12060

BULB(12V60/55W,H4)

€ 8.00

3692014D00
ref: 12

PROTECTOR,WIRING HARNESS

€ 5.50

0911606167
ref: 13

BOLT(6X20)

€ 2.00

0918006310
ref: 14

SPACER(6.5X10X10)

€ 2.00

0932009018
ref: 15

CUSHION

€ 2.00

3595014A10
ref: 16
35950-14A11

REFLECTOR,REFLEX

€ 11.00

3595629F00
ref: 17

BRACKET,FR SIDE RR

€ 9.50

083161005B
ref: 18

NUT

€ 2.50
