REAR BRAKE

DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

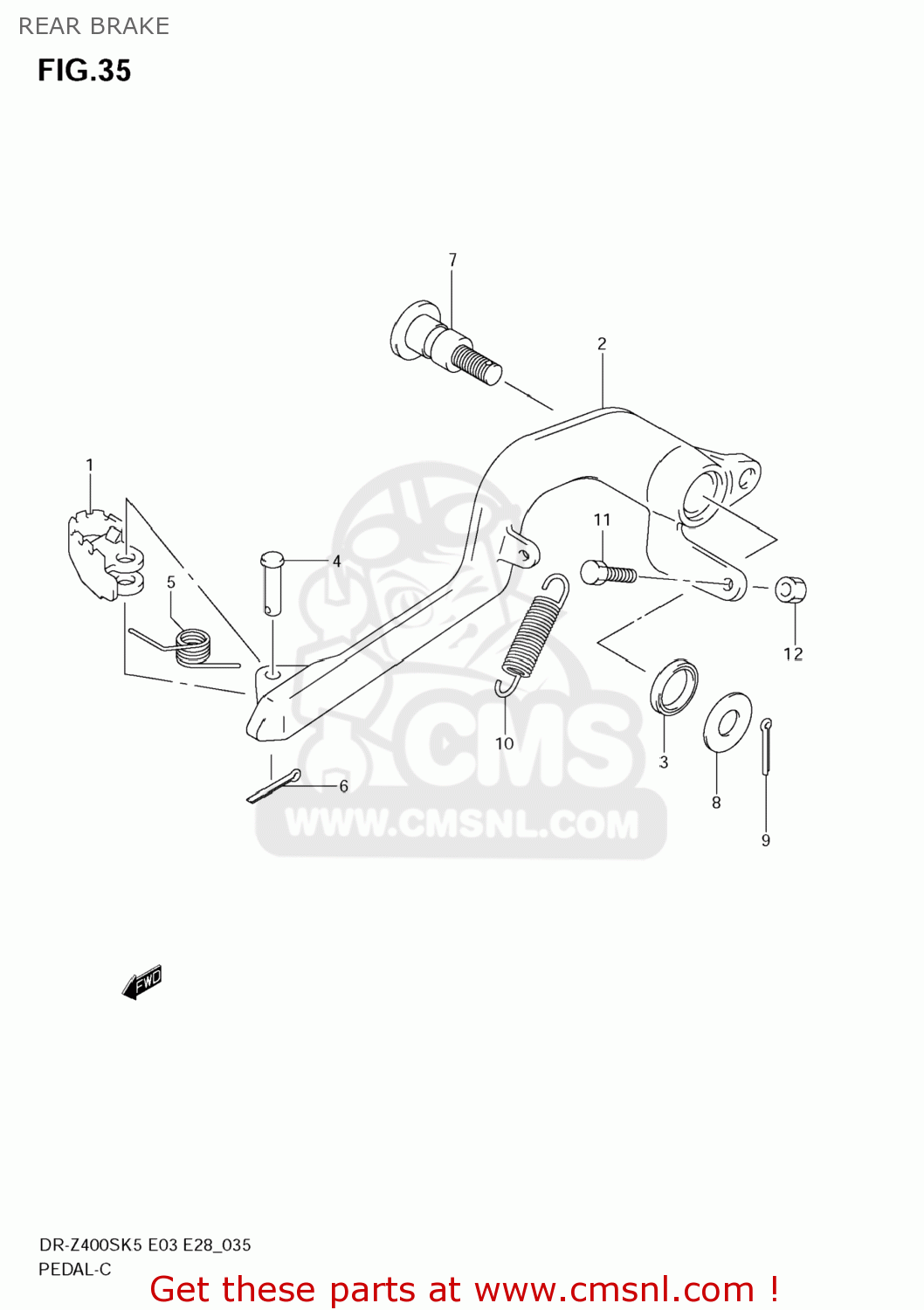

Rear brake diagram DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

REAR BRAKE DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

REAR BRAKE DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312029F10
ref: 2

ARM,BRAKE PEDAL

€ 167.50

3

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

4

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

5

0944411006
ref: 5

SPRING

€ 3.50

6

041112015A
ref: 6

PIN

€ 1.50

7

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

8

0821110261
ref: 8

WASHER

€ 2.50

9

041112020A
ref: 9

PIN

€ 1.50

10

0944311033
ref: 10

SPRING

€ 4.50

11

0910406004
ref: 11

BOLT(6X30)

€ 3.00

12

083100006B
ref: 12

NUT

€ 2.00
