WATER PUMP

DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

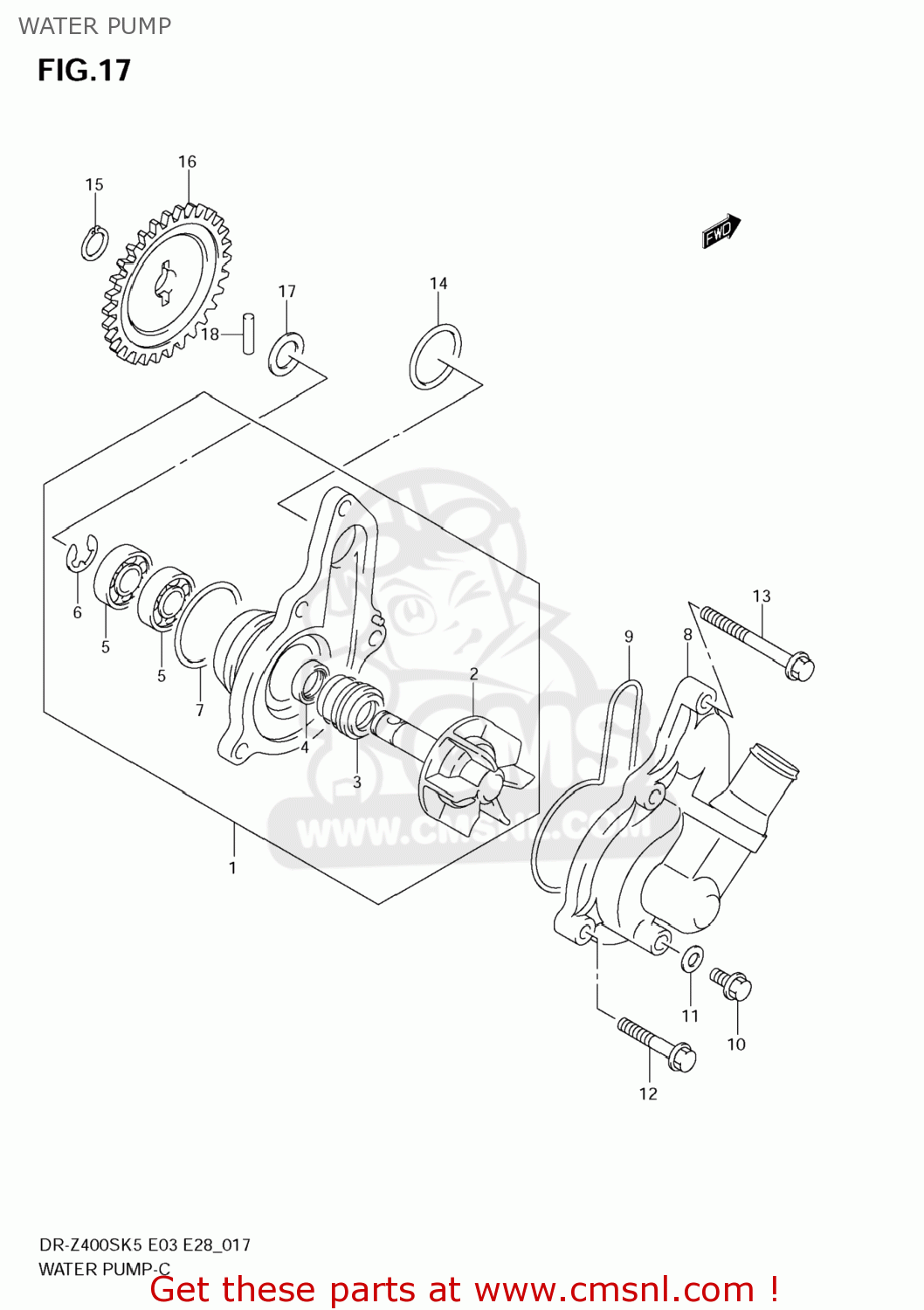

Water pump diagram DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

WATER PUMP DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S
WATER PUMP DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S
WATER PUMP DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
1740029F00
ref: 1-1
PUMP ASSY,WATER
1740029F00
€ 220.00
1-2
1740029F10
ref: 1-2
PUMP ASSY,WATER
1740029F10
€ 176.50
2-1
1749129F00
ref: 2-1
IMPELLER SHAFT
1749129F00
€ 48.00
2-2
1749129F10
ref: 2-2
IMPELLER SHAFT
1749129F10
€ 32.50
3
1747002F10
ref: 3
SEAL,MECHANICAL
1747002F10
€ 22.50
4-1
1741929F00
ref: 4-1
SEAL,OIL
1741929F00
€ 15.00
4-2
0928310004
ref: 4-2
SEAL,OIL(10X21X5)
0928310004
€ 5.50
5
0811069000
ref: 5
BEARING
0811069000
€ 24.00
6
083321108A
ref: 6
E RING
083321108A
€ 2.50
7
1743533400
ref: 7
O RING,WATER PUMP HOLDER
1743533400
€ 13.50
8
1741029F21
ref: 8
CASE,WATER PUMP
1741029F21
€ 68.50
9
1743529F00
ref: 9
O RING,WATER PUMP CASE
1743529F00
€ 10.50
10
015470610B
ref: 10
BOLT
015470610B
€ 4.00
11
0916806026
ref: 11
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
12
0910306204
ref: 12
BOLT(6X30)
0910306204
€ 4.50
13
0910306209
ref: 13
BOLT(6X45)
0910306209
€ 3.50
14
0928022001
ref: 14
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
15
0833131106
ref: 15
08331-3110A
CIRCLIP,10MM
0833131106
€ 2.50
16
1746129F00
ref: 16
GEAR,WATER PUMP DRIVEN
1746129F00
€ 39.50
17
0918110158
ref: 17
SHIM(10X18X0.5)
0918110158
€ 3.50
18
0926104001
ref: 18
PIN(4X18.5)
0926104001
€ 2.00
