SPEEDOMETER (MODEL K5)

DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

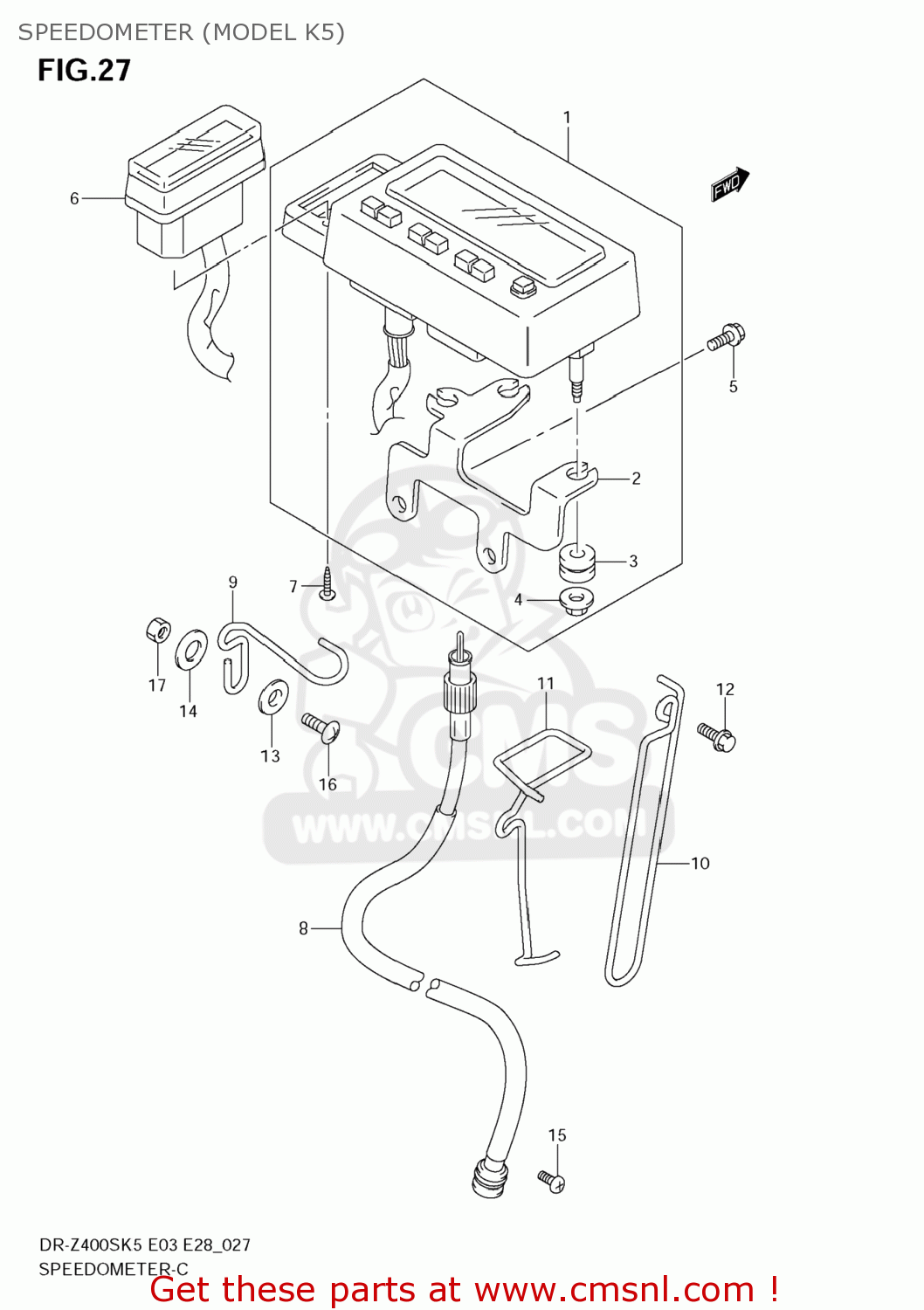

Speedometer (model k5) diagram DR-Z400S 2007 (K7) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

3410029F21
ref: 1-1

SPEEDOMETER ASSY

€ 1,461.00

1-2

3410029F01
ref: 1-2

SPEEDOMETER ASSY

€ 1,117.50

3495029F00
ref: 2

BRACKET

€ 30.00

3499643410
ref: 3

CUSHION,METER

€ 3.00

083161005A
ref: 4

NUT

€ 2.50

015500616B
ref: 5

BOLT

€ 2.50

3638029F00
ref: 6

BOX ASSY,PILOT LAMP

€ 128.50

0351104203
ref: 7
03511-0420B

SCREW

€ 2.00

3491032E00
ref: 8

CABLE ASSY,SPEEDOMETER

€ 29.00

3493803D22
ref: 9

GUIDE,SPEEDOMETER CABLE

€ 7.50

3493814D30
ref: 10

GUIDE,METER CABLE NO.2

€ 8.00

3493829F10
ref: 11

GUIDE,SPEEDOMETER CABLE NO.3

€ 9.50

0911606167
ref: 12

BOLT(6X20)

€ 2.00

0916006109
ref: 13

WASHER(6.5X18X1.6)

€ 2.00

0916906054
ref: 14
09169-06053

WASHER

€ 2.00

021120516B
ref: 15

SCREW

€ 2.00

021420616B
ref: 16

SCREW

€ 1.50

083100006B
ref: 17

NUT

€ 2.00

SPEEDOMETER (MODEL K5)

all assemblies
