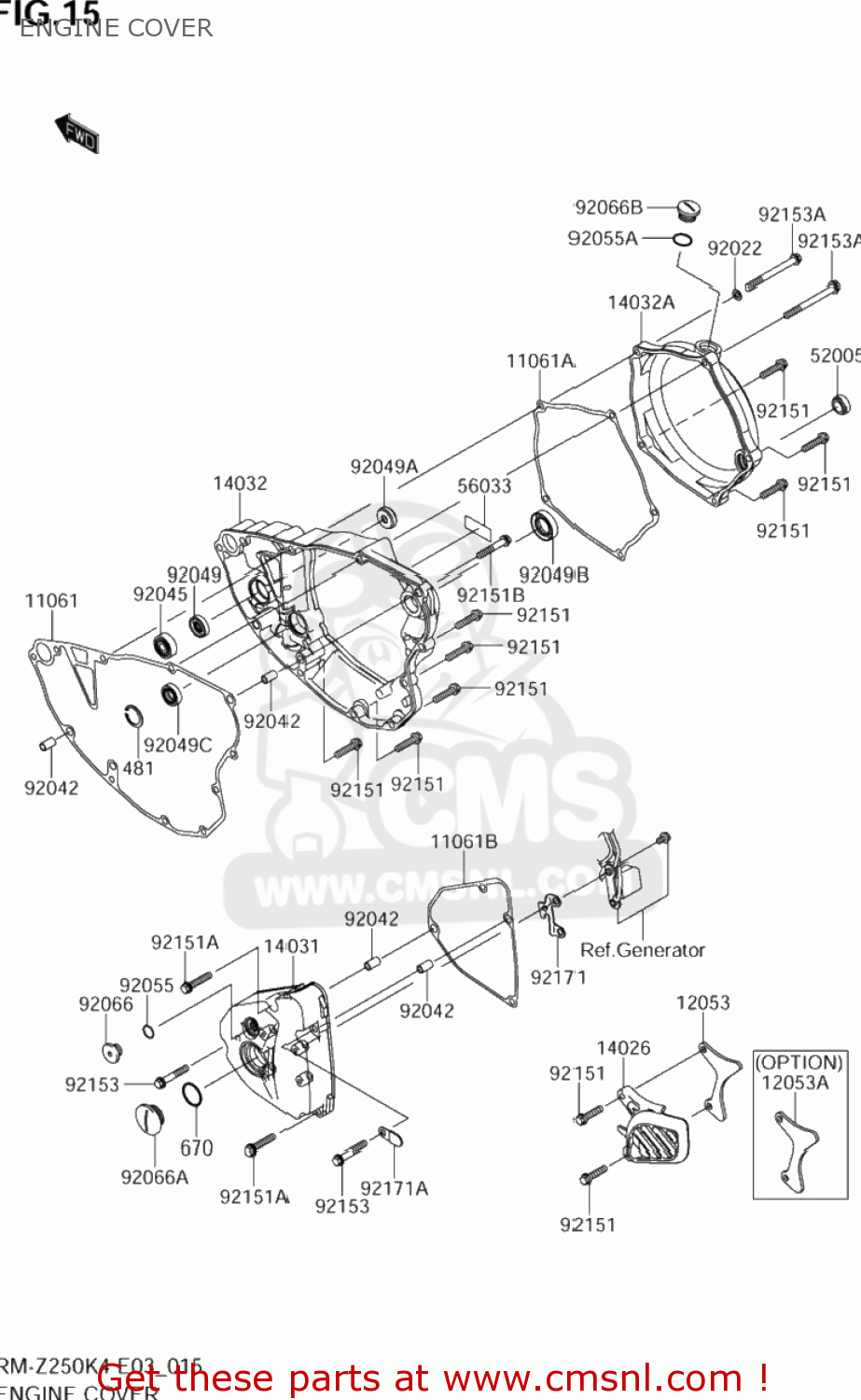

ENGINE COVER

ref

part #

description

quantity

481

KK481J2200
ref: 481

CIRCLIP

€ 1.50

670

KK670B2022
ref: 670

O RING,22MM

€ 4.50

11061

K110610030
ref: 11061
K1106-10324

GASKET,CLUTCH (NAS)

€ 28.50

11061A

K110610031
ref: 11061A

GASKET,CLUTCH COVER,OUTER (NAS)

€ 19.50

11061B

K110610032
ref: 11061B
K1106-10323

GASKET,GENERAT (NAS)

€ 18.00

12053

K120530011
ref: 12053

GUIDE-CHAIN

€ 9.50

12053A

K120530018
ref: 12053A

GUIDE-CHAIN

€ 7.00

14026

K140260001
ref: 14026

COVER-CHAIN

€ 13.50

14031

K140310020
ref: 14031
K1403-10038

COVER-GENERATO

€ 55.00

14032

K140320011
ref: 14032
K1403-20057

COVER-CLUTCH,I

€ 233.50

14032A

K140320029
ref: 14032A
K1403-20050

COVER,CLUTCH O

€ 111.50

52005

K520051009
ref: 52005

GAUGE,OIL LEVEL

€ 22.50

56033

K560330049
ref: 56033

LABEL,MANUAL

€ 2.50

92022

KK92022304
ref: 92022

WASHER,6.2X11X1

€ 5.50

92042

KK92042007
ref: 92042

PIN,DOWEL,6.3X8X14

€ 5.00

92045

K920451123
ref: 92045

BEARING-BALL,#628

€ 24.00

92049

K920490016
ref: 92049
K9204-90060

SEAL-OIL,SD 8

€ 9.00

92049A

K920490021
ref: 92049A
K9204-90061

SEAL-OIL

€ 9.00

92049B

KK92049013
ref: 92049B

SEAL-OIL,SB18307

€ 11.50

92049C

K920491519
ref: 92049C

SEAL-OIL,TC13225.5

€ 11.00

92055

K920551141
ref: 92055
K9205-51021

RING-O,ID=13.8

€ 5.50

92055A

K920551146
ref: 92055A

RING-O

€ 7.50

92066

K920660014
ref: 92066

PLUG,12X8

€ 6.50

92066A

K920661414
ref: 92066A

PLUG

€ 8.50

92066B

K920661456
ref: 92066B

PLUG,TOP MAKE

€ 12.00

92151

K921511130
ref: 92151
K9215-11930

BOLT,6X25

€ 2.50

92151A

K921511134
ref: 92151A
K132B-C0630

BOLT,6X30

€ 1.50

92151B

K921511135
ref: 92151B

BOLT,6X35

€ 3.50

92153

K921530668
ref: 92153

BOLT

€ 2.00

92153A

K921530697
ref: 92153A

BOLT

€ 2.00

92171

K921710195
ref: 92171

CLAMP,HARNESS

€ 4.50

92171A

K921710295
ref: 92171A

CLAMP

€ 2.00
