FOOTREST

RM-Z250 2004 (K4) USA (E03) RMZ250 RM Z250

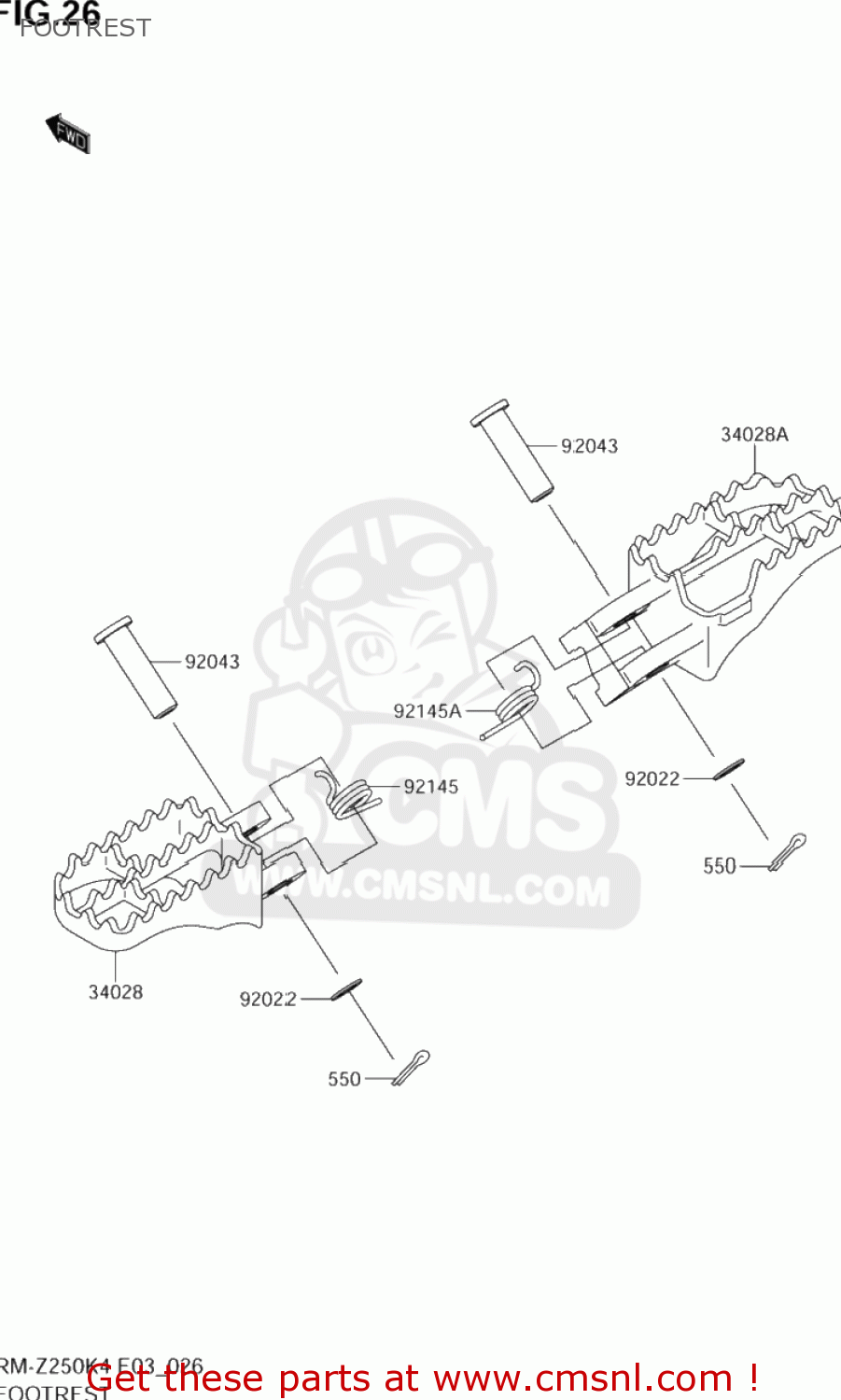

Footrest diagram RM-Z250 2004 (K4) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

550

KK550S3020
ref: 550

PIN-COTTER,3.0X20

€ 2.00

34028

K340281533
ref: 34028
K3402-80098

STEP,LH

€ 39.00

34028A

K340281534
ref: 34028A
K3402-80099

STEP,RH

€ 39.00

92022

K920221829
ref: 92022

WASHER,10.2X16X1

€ 3.00

92043

K920430041
ref: 92043

PIN,10X49.5

€ 5.50

92145

K921451466
ref: 92145

SPRING,STEP,LH

€ 3.00

92145A

K921451467
ref: 92145A

SPRING,STEP,RH

€ 3.00
